lightweight foam concrete machine with fast delivery & perfect service

Usage & Feature

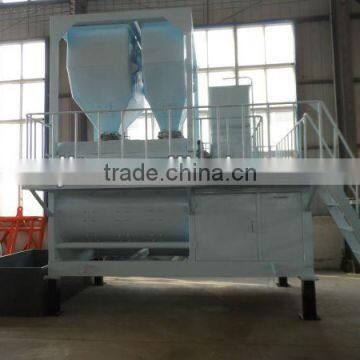

JSP40 foam concrete making machine is specially designed for Cellular light weight concrete to reach large and medium-sized capacity.The double shafts compulsion mixing to force raw materials to mix fast and homogenously by the strong circular motion and impact. It is an ideal Mixer for Cellular light weight concrete for its high automation, compact structure, reliable performance, easy operation, convenient maintenance etc.

Structure Introduction & Working Principle

This machine includes foam generator system, mixing system, water supply system, and the digital computer control panel, besides it is fitted with cement weigher, sand(flyash/stone dust…) weigher, foam weigher, and  water timer, can get various density of CLC products by adjust the formular.

Main Technology Data

Performance comparison between common building materials and CLC Blocks:

Bulk foam concrete machine in Plywood case;

Container laden products in nude packing.

All machineries shipping by sea or by train within 7~10days normally.

We offer installation service as per customers requirements and needs;

Clients could also to study technology in our factory freely.

Q: What's the material ratio for the foam concrete blocks?

A: Cement dosage no less than 30% at least,

    Finer Sand/Flyash/Stone powder(as optional)... dosage no more than 70% at least,

    Foaming agent dosage 0.5~1.2liter normally.

Q: Can only use sand to blending with cement, foaming agent and water to make CLC blocks?

A: Yes, you can only use finer sand as raw material to make CLC blocks.

In fact, flyash is a good material to make CLC products, stone powder is also a good material for the CLC products, but some countries or areas no flyash, they only have various sand, choose the river sand or finer sand(sand size the finer the better) to be as the CLC product material.

Q: I am new on CLC machines, i don't know how to make it.

A: No matter, we have an obligation to teach you how to make quality CLC products hand by hand.

Q: Which machines will be required for a normal CLC BLOCK PLANT?

A:  one set foam concrete mixing machine, one set foam concrete conveying pump, big block moulds&demoulder, CLC block cutting machine, and CLC block clamp, which is often used in a normal CLC block  plant.

If you want to set up a simple CLC block plant, just need one set foam concrete mixing machine, one set foam concrete conveying pump, and assembly block moulds.

Q: Does the foam concrete mixing machine including foam generator?

A: Yes, the foam concrete mixing machine mainly integrated foam generator system, mixing system, feeding hopper, water pump and control panel.

Q: How to control the foaming agent and water dosage?

A: There are digital timers which is used to control the foaming agent and water dosage on the control panel of SYT-20 Foam concrete mixing machine.

    There are a digital timer which is to control the water dosage, and a sensor to control the foaming agent dosage for the JSP-40 Foam concrete mixing machine.

Q: How to control materials weight?

A: You could under the help of an electric batching machine or by traditional weighing way.

   Compared to SYT-20 Foam concrete mixing machine, JSP-40 foam concrete mixing machine equipped with weighing sensors, just set formula on the display screens of the PLC control panel can automatically finish the needed dosages of cement, sand or flyash....

Q: What's the main differences between CLC Block and AAC Block?

A: The man differences is that CLC products belongs to Physical response, AAC products belongs to Chemical response.

Foam concrete pump

IHP series Squeeze Pump and SYT-30 Hydraulic Foam Concrete Pump are often used to work together with foam concrete mixing machine, it is used to transfer/conveying/pumping the foam concrete slurry/pulp/mortar to the moulds.

IHP series Squeeze Pump

SYT-30 Hydraulic Foam Concrete Pump
