Lightweight Foam Concrete Block Machine Prices
- Qingdao Shanghai Tianjin or other ports
- T/T Money Gram
You May Like
-
Foam Cement Mixing and Blending Machine With Foam Generator
-
Foam Concrete Brick Production Line/CLC Plant
-
SYT-20 CLC Cellular Lightweight Concrete Making Machine, CLC Foam Concrete Machine
-
SYT-20 CLC Cellular Lightweight Concrete Making Machine, CLC Mixing Machine
-
ANJIT Directly Sales Foam Concrete System Machine
-
Lightweight Cement Block Making Machine
Product Details
| Condition | New | Type | Other, CLC Brick Making Machine | |
| Brick Raw Material | Other, Cement, Flyash, Sand, Cinder etc one or two more | Processing | Brick Production Line | |
| Method | Other, Non Autoclave Aerated Concrete | Automatic | Other, Semi-auto | |
| Capacity | 5-10m3/h | Place of Origin | Henan, China | |
| Brand Name | SYM | Model Number | SYT-20 | |
| Voltage | 220V/380V/440V | Power | 11kw+5.5kw+5.5kw+3kw+1.1kw+0.37kw | |
| Dimension(L*W*H) | 2600*2250*2800mm | Certification | ISO | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

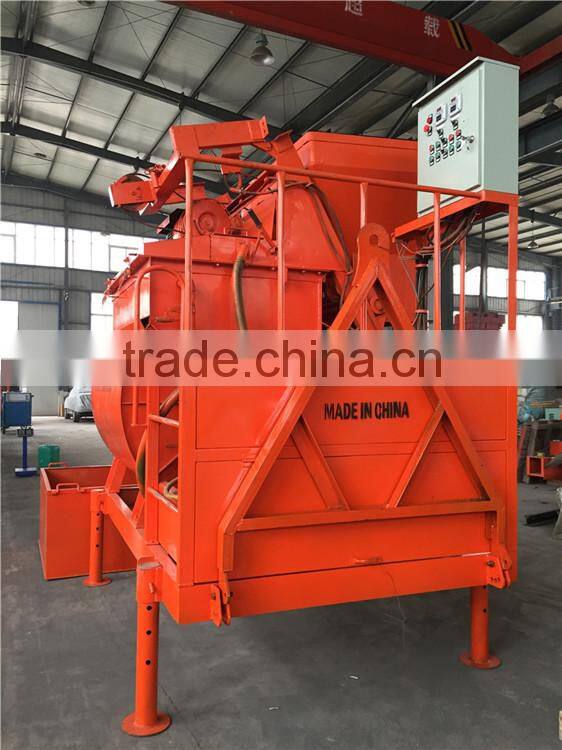

SYT-20 Light Concrete Mixing Machine
foam generator, mixer hopper, feeder hopper, water pump and control panel are included in the foam concrete machine.
Features:
1. The foam blending fast, blowing foam uniformly.
2. Without suspended matter, without the declining, it’s good for steady pouring.
3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability density.
4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.
5. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, pearlite, and slag etc.
6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.
MACHINE NAME& TECHNICAL DATA | |
SYT-20 Foam concrete mixing machine | |
Output volume | 1500L |
Material input volume | 1800~2000L |
Capacity | 6-10m3/h (feed by labours) 10-15m3/h (feed by machine) |
Main shaft revolution | 32r/min |
Hopper lifting speed | 22m/min |
Overall dimension | 2600*2250*2800mm |
Total weight | 2600kg |
Mixing motor | 11kw |
Winding motor | 5.5kw |
Water pump motor | 1.1kw |
Vibrating motor | 0.37kw |
Foaming system | 3kw |
Air compressor | 5.5kw |
Max. travelling speed | ≤15km/h |
Products:

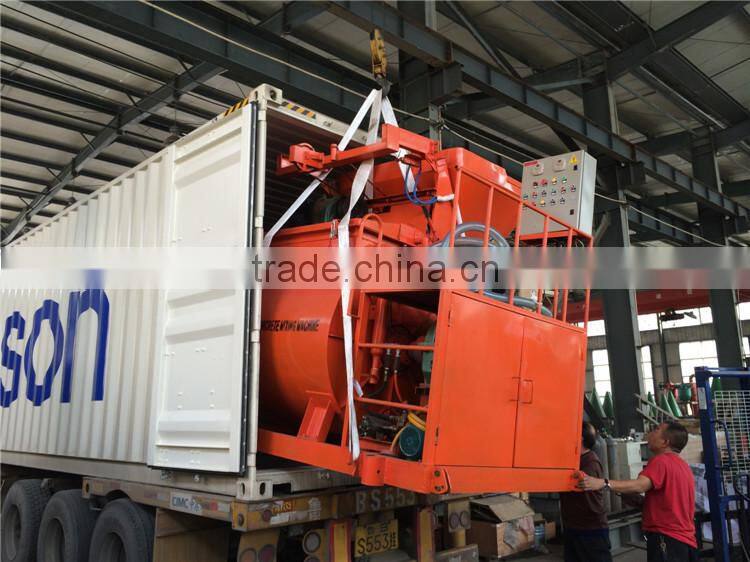

Packing&Shipping:

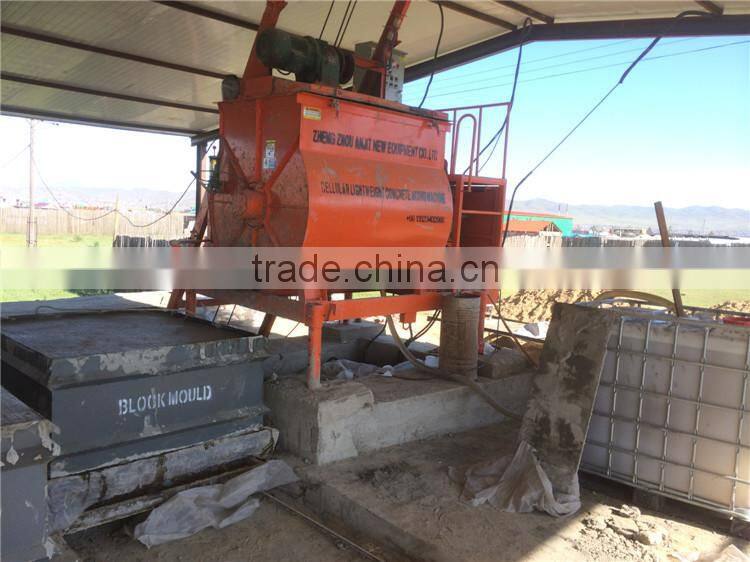

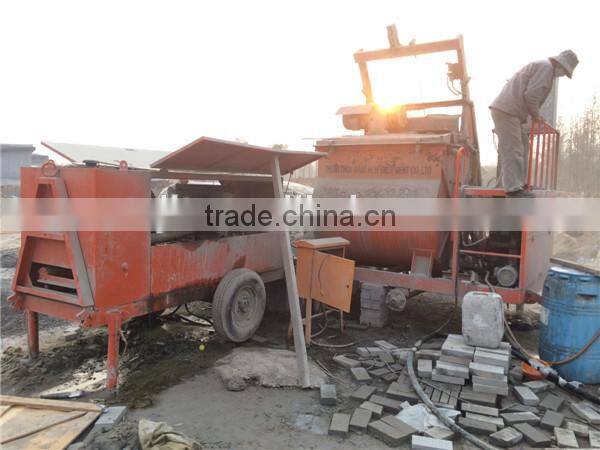

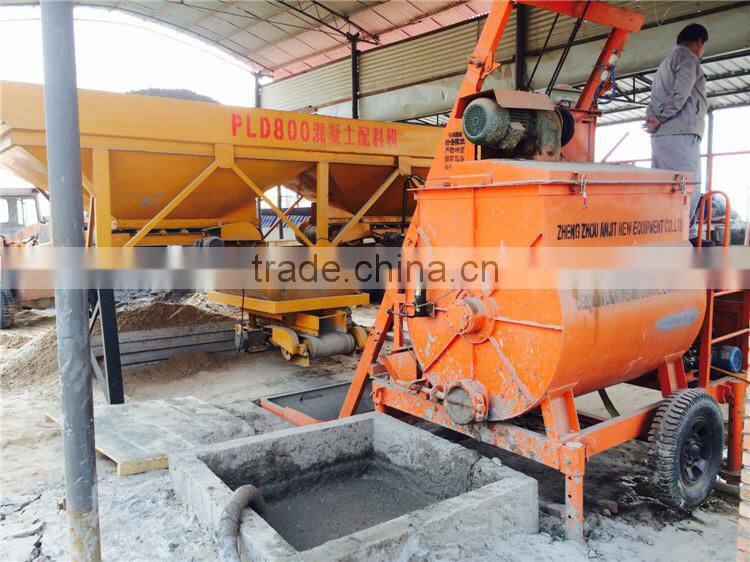

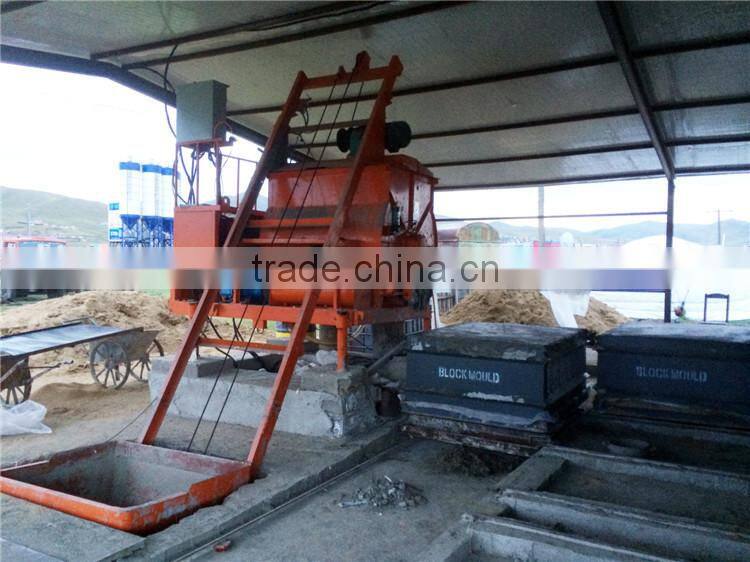

Onsite:
