ANJIT Directly Sales Foam Concrete System Machine
- Qingdao
- T/T
You May Like
-
Lightweight Cement Block Making Machine
-
Australia Light Weight Foam Concrete Machine
-
China Cheaper Quality Cellular Lightweight Concrete Machine
-
Quality Cellular Lightweight Concrete Machine
-
the Cheapest Quality Cellular Lightweight Concrete Machine
-
Small Scale Lightweight Foam Fiber Concrete Machine
Product Details
| Condition | New | Type | Other, CLC Block Making Machine | |
| Brick Raw Material | Other, Cement+Sand or Flyash or Stone powder | Processing | Brick Cutting Machine | |
| Method | Autoclaved Aerated Concrete | Automatic | Yes | |
| Capacity | 6-15m3/h | Place of Origin | Henan, China | |
| Brand Name | SYM | Model Number | SYT-20 | |
| Voltage | 380V | Power | 11kw+5.5kw+1.1kw+3kw+5.5kw+0.37kw | |
| Dimension(L*W*H) | 2600*2250*2800mm | Certification | ISO | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

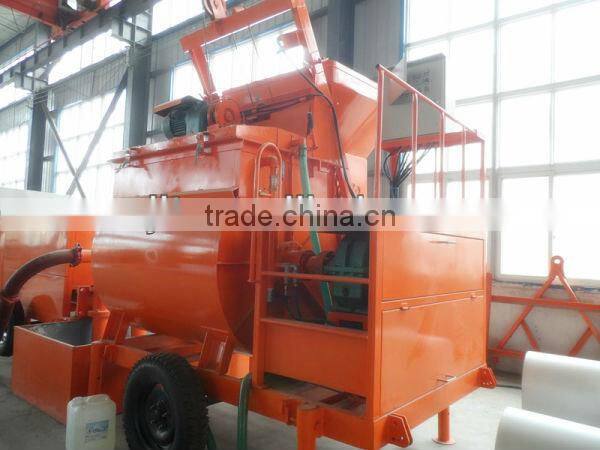

SYT20 Light Concrete Combined Mixing Machine
foam generator, mixer hopper, feeder hopper, water pump and control panel are included in the foam concrete machine SYT20.
Combined Foam Concrete Mixing Machine | |||
SPECIFICATION | SPECIFICATION | ||
Model | SYT-20 | Mixing motor | 11kw |
Output volume | 1500L | Winding motor | 5.5kw |
Material input volume | 2000L | Water pump motor | 1.1kw |
Capacity | 5-10m3/h(feed by manual) 10-15m3/h (feed by batcher) | Vibrating motor | 0.55kw |
Main shaft revolution | 32r/min | Foam pump | 3kw |
Hopper lifting speed | 22m/min | Air compressor | 5.5kw |
Overall dimension | 2600*2250*2800mm | Max. moved speed | ≤15km/h |
Total weight | 2800kg |
|
|
.
IHP-75 FOAM Concrete Pump
Such foam concrete pump also called peristaltic pump could be used for pumping the mortar, foam concrete machine etc.
Technical data:
Model | IHP75 | IHP65 | IHP50 |
Rate power | 7.5kw | 5.5kw | 5.5kw |
Rate of flow | 15m3/h | 10m3/h | 5m3/h |
Rate pressure | 0.8Mpa | 1.0Mpa | 1.0Mpa |
Rotate speed | 42r/min | 42r/min | 42r/min |
Dimension(L*W*H) | 1400*1100*1030mm | 1250*1000*930mm | 1150*700*800mm |
Working temperature | 0-60° | 0-60° | 0-60° |
Horizontal transport distance | 500m | 500m | 600m |
Vertical transport distance | 20m | 35m | 80m |
Hosepipe | 30m | 30m | 30m |
Weight | 650kgs | 630kgs | 600kgs |
CLC BLOCK MOULDS HAS 3 OPTIONAL MOULDS:
Optional 1

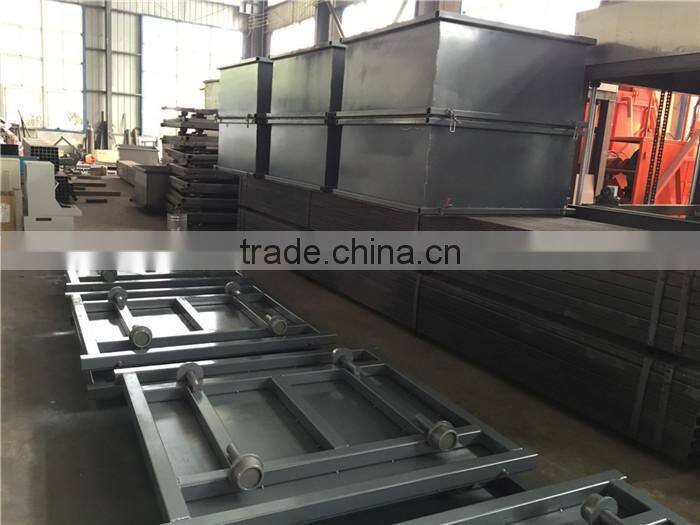

Block Mould
Thickness: 3mm
Block mould consists of Mould Frame and Mould Bottom Trolley.

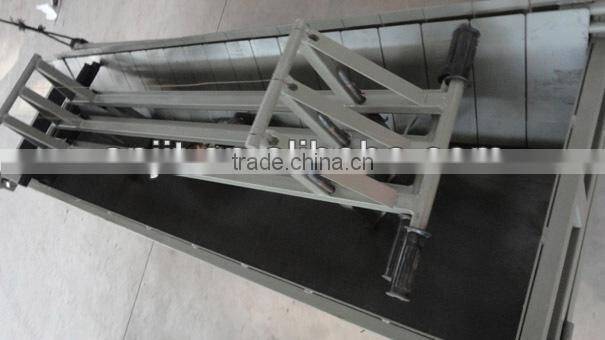

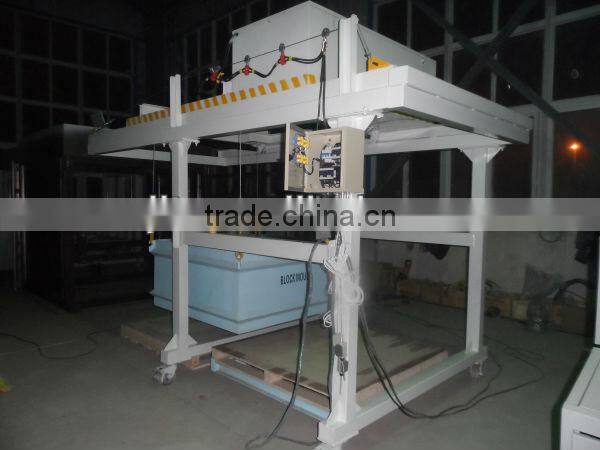

Demould Machine
Demould machine is often matched to the GYC-60B Foam Concrete Block Cutting Machine in the CLC line, easy operation, stable performance, can keep good foam concrete block shape.

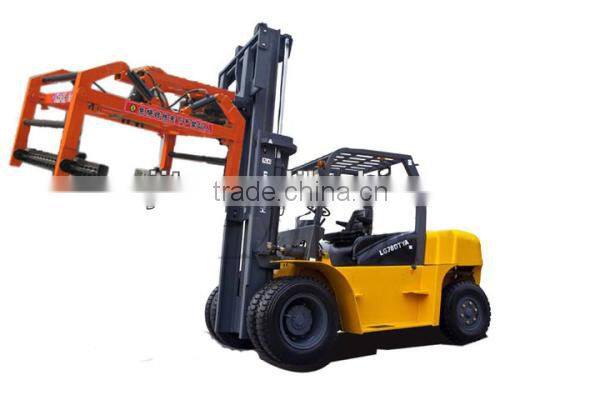

Block Clamp

Optional 2

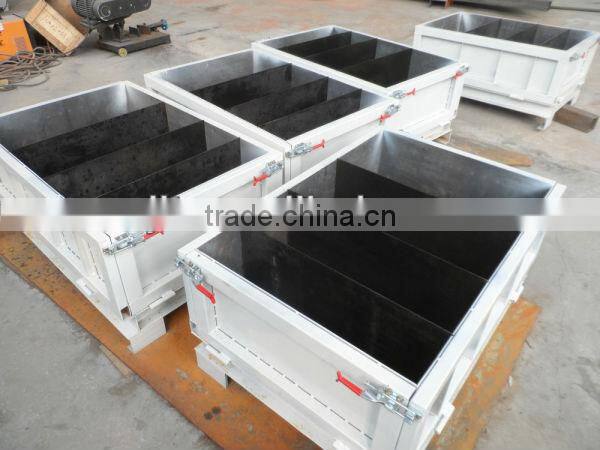

Manual Block Mould
Steel Block Mould+Measuring steel plate+cutting tool.
Optional 3
Manual Block Mould
Directly get pieces of small block size such as
600*200*100mm,
600*200*150mm,
600*200*200mm,
600*200*250mm,
600*200*300mm,
400*200*100mm,
400*200*150mm,
400*200*200mm,
400*200*250mm,
......
Why choose us?
Rich experiences in India, Indonesia, Iraq, Willemstad, and Myanmar can help you to setup a good available foam concrete block production line at economic investment.
Why we can offer the Best Price?
We not only the trader but also the manufacturer, can offer you the high quality machines and economic price machines.
How about after-sale service?
We focus on your needs all the time and serve you with all-round carefulness service. Once you need us to install machines, train workers in your plant, we will fly to there fast. Provide parts free in guarantee year, All year round to provide paid machine parts.
Welcome to inquiry!
