Foam Cement Mixing and Blending Machine With Foam Generator
- Qingdao
- T/T
You May Like
-
Foam Concrete Brick Production Line/CLC Plant
-
SYT-20 CLC Cellular Lightweight Concrete Making Machine, CLC Foam Concrete Machine
-
SYT-20 CLC Cellular Lightweight Concrete Making Machine, CLC Mixing Machine
-
ANJIT Directly Sales Foam Concrete System Machine
-
Lightweight Cement Block Making Machine
-
Australia Light Weight Foam Concrete Machine
Product Details
| Condition | New | Type | Other, CLC Block Making Machine | |
| Brick Raw Material | Other, Cement+Sand or Flyash or Stone powder | Processing | Brick Cutting Machine | |
| Method | Autoclaved Aerated Concrete | Automatic | Yes | |
| Capacity | 6-10m3/h or 10-15m3/h | Place of Origin | Henan, China | |
| Brand Name | Anjit | Model Number | SYT-20 | |
| Voltage | 380V/50HZ | Power | 11kw+5.5kw+1.1kw+2.2kw+5.5kw+0.37kw | |
| Dimension(L*W*H) | 2600*2250*2800mm | Certification | ISO9001 | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

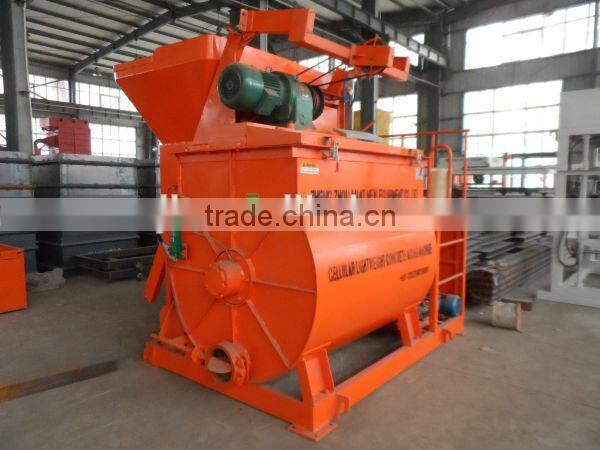

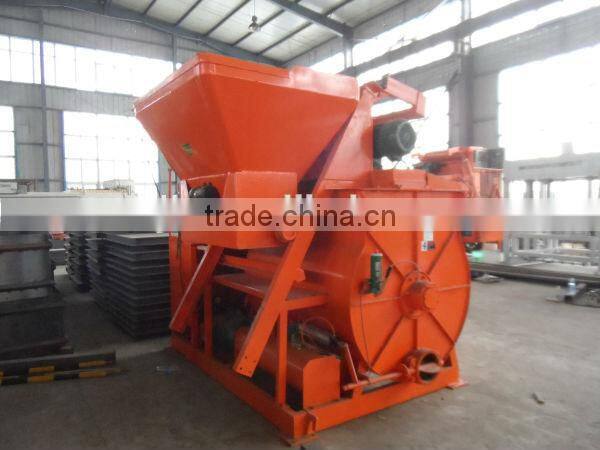

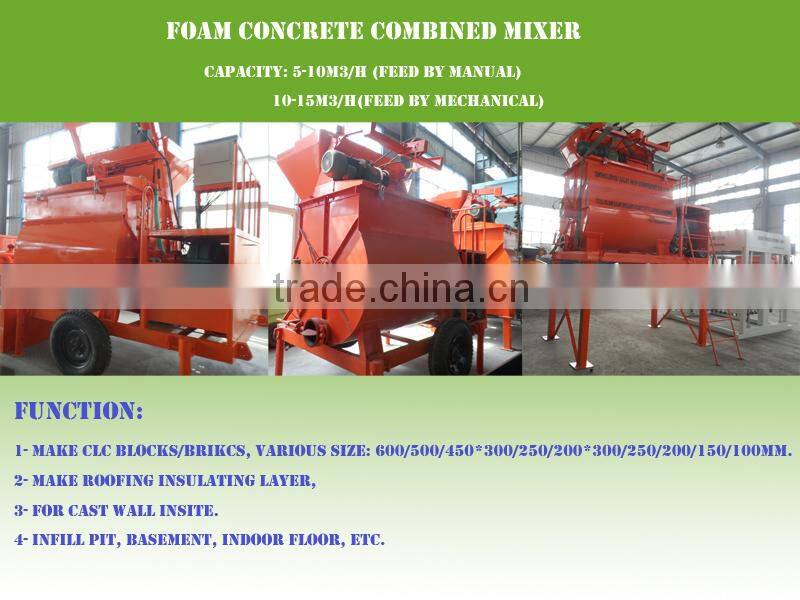

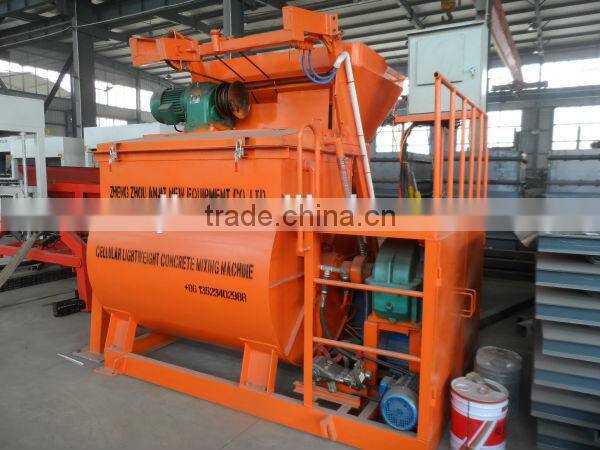

SYT-20 Light Concrete Mixing Machine
SYT20 Combined Foam Concrete Machine integrates with foam generator system, material feeding system, mixing system, water supply system, and control cabinet in one body.
Working Principle:
SYT-20 foam concrete making machine is specially designed for Cellular light weight concrete to reach a small and medium-sized capacity. The single shafts compulsion mixing to force raw materials to mix fast and homogenously by the strong circular motion and impact.
Features:
- It can get various density of CLC products by set formula by the foam timer and water timer on the control cabinet.
-It is an ideal Mixer for Cellular light weight concrete for its compact structure, reliable performance, easy operation, convenient maintenance etc.
Specification:
Specification of Combined Foam Concrete Mixing Machine | |||
Model | SYT-20 | Mixing motor | 11kw |
Output volume | 1500L | Winding motor | 5.5kw |
Material input volume | 2000L | Water pump motor | 1.1kw |
Capacity | 5-10m3/h(feed by manual) 10-15m3/h (feed by batcher) | Vibrating motor | 0.55kw |
Main shaft revolution | 32r/min | Foam pump | 3kw |
Hopper lifting speed | 22m/min | Air compressor | 5.5kw |
Overall dimension | 2600*2250*2800mm | Max. moved speed | ≤15km/h |
Total weight | 2800kg |
|
|
Details:
Service before-sales:

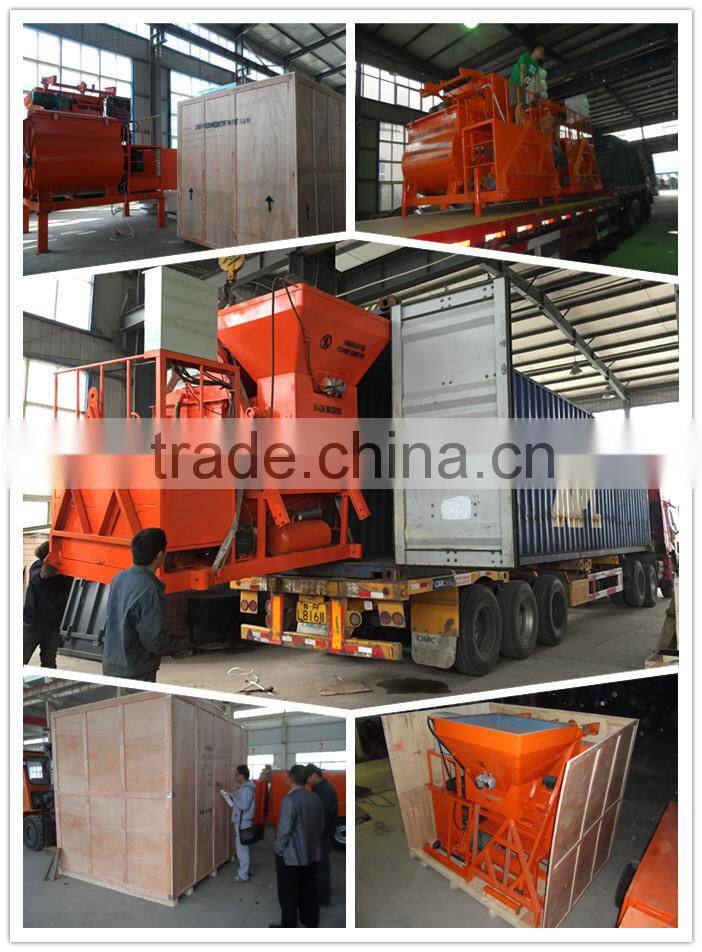

Delivery:
Service after-sales:
