Desription
Automatic 4-colour Plastic Bottle UV maquinaria para serigrafia This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of two-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc
Specifications
1 Model No:LCB-120UV-4
2.Printing colors:2 color
3.Product appearance:Round bottle / oblate bottle
4.Operation:Full Auto
5.min printing diameter:round bottle: 20 mm
6.max printing diameter:round bottle :100 mm
7.min printing radius:oblate bottle :25 mm
8.max printing radius:oblate bottle :260 mm
9.oblate bottle width:20-100 mm
10.oblate bottle thickness:20-80 mm
11.Max Printing speed:4000-5000Pcs/Hr
12.Power:380V
13.Weight:3050(kg)
14.Dimensions:L:1900×W:1000×H:1500(mm)
Function
1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..

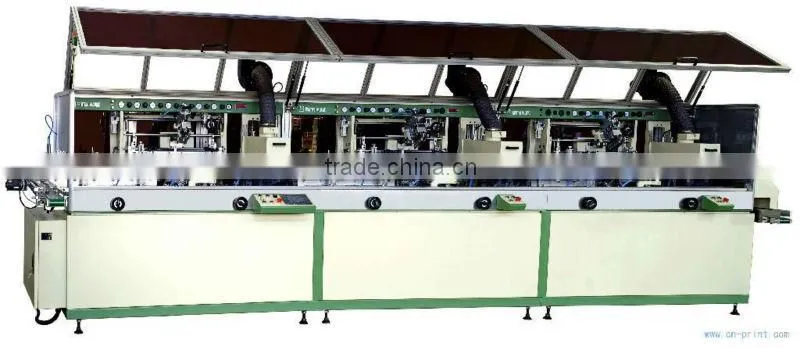

Picture of machine
Sample picture
