Led Driver Open Frame 27W Isolated Led Driver
Negotiable
/ Unit
1000 Units(Min. Order)
- Xiamen
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Evada | |
| Model Number | CUF-027-035-T | Output Power | Other, 27W | |
| Output Type | Single | Input Voltage | Other, 90-264V AC | |
| Output Voltage | 54-78V DC | Output Frequency | 50Hz/60Hz | |
| Output Current | 350mA |
Product Description
Product Description

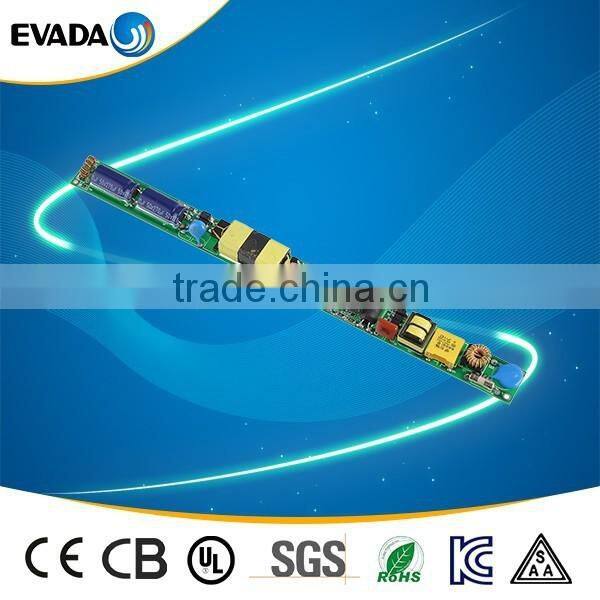

led driver open frame 27W isolated led driver
| Features : | |||
| 1.Universal AC input / Full range (90VAC to 264VAC) | |||
| 2.Protections: Overload / Over voltage /short circuit | |||
| 3.Built-in active PFC function | |||
| 4.Cooling by free air convection | |||
| 5.Compliance to worldwide safety regulations for lighting | |||
| 6.3 years warranty |
Specification
| MODEL | CUF-027-035-T | |||||||||
| OUTPUT | DC VOLTAGE | 78VDC | ||||||||
| CONSTANT CURRENT REGION | 54-78V DC | |||||||||
| RATED CURRENT | 350mA | |||||||||
| RATED POWER | 27W | |||||||||
| RIPPLE & NOISE (max.) | 1500mVp-p | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 3000/80ms at full load 220VAC /176VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.98/110VAC PF≥0.95/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥89% | |||||||||
| AC CURRENT | 0.2A / 110VAC 0.1A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | <600mA | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 67-72VDC | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L220*W17*H12mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Other items
| CUF-027W LED Tube Lights Driver (Output Current/Voltage are customizable) | ||||||||
| Item No. | Input Voltage | Output Voltage | Output Current | Output Power | THD | Power factor | Efficiency | Size L*W*H mm |
| CUF-027-035-T | 90-264V AC | 54-78V DC | 350mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
| CUF-027-050-T | 90-264V AC | 38-54V DC | 500mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
| CUF-027-063-T | 90-264V AC | 30-42Vdc | 630mA | 27W | ≤20% | ≥0.95 | 87% | 220*17*12 |
open frame
