High Quality Mini Switching Power Supply 10-14V
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CDF-012-020
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Best Quality Square Shape Led Driver 12WNegotiableMOQ: 1000 Units -
Cheap PFC Function 36V 1050mA 36w Led Power DriverNegotiableMOQ: 200 Units
-
Bending Resistance 80V 450mA 36w Led Power DriverNegotiableMOQ: 500 Units
-
Cheap 3 Years Warranty 80V 450mA 36w Power Supply for LedNegotiableMOQ: 500 Units
-
Water Resistant 80V 450mA 36w Power Supply for LedNegotiableMOQ: 500 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CDF-012-020
Output Power
1 - 50W
Output Type
Single
Input Voltage
Other, 10-14VAC
Output Voltage
48-60V
Output Frequency
50Hz-60Hz
Output Current
0.20A
Product Description

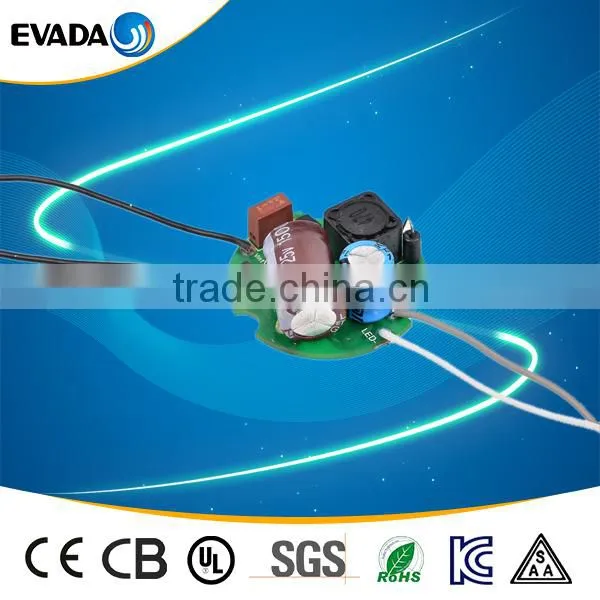

High quality mini switching power supply 10-14V
| Features : |
| Constant current DC/DC Step-up LED driver |
| Output Over-Voltage Protection |
| Cooling by free air convection |
| Suitable for indoor LED lighting |
| Open Frame Type |
| 3 years warranty |
| SPECIFICATION | ||||||||||
| MODEL | CDF-012-020(JS) | |||||||||
| OUTPUT | DC VOLTAGE | 60V | ||||||||
| CONSTANT CURRENT REGION | 48~60V | |||||||||
| RATED CURRENT | 0.20A | |||||||||
| RATED POWER | 12W | |||||||||
| RIPPLE & NOISE (max.) | 1500mVp-p | |||||||||
| LINE REGULATION | ±1% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 3000ms, 100ms at full load 10VAC / 14VAC | |||||||||
| HOLD UP TIME (Typ.) | 50ms / 12VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 10-14VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.50/10VAC PF≥0.50/14VAC | |||||||||
| EFFICIENCY (Typ.12Vac/50Hz) | ≥75% | |||||||||
| AC CURRENT | 2.0A / 10VAC 1.3A / 14VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 6A/12VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | No short-circuit protection | |||||||||
| OVER VOLTAGE | 62~63V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | Φ 40*21 mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 12VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
|
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. | ||||||||||
| 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
Mechanical Specification
