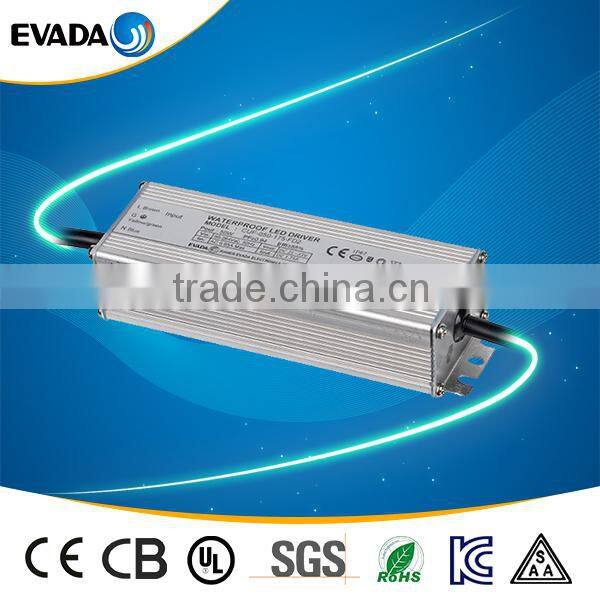

Silver white 105V 350mA 36W power supply for led

FOB Price

Negotiable / Unit

500 Units(Min. Order)

Port Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Evada
Model Number	CUF-036-035-FB2	Output Power	1 - 50W
Output Type	Single	Input Voltage	Other, 90-264VAC
Output Voltage	105VDC	Output Frequency	50-60Hz
Output Current	350mA

Product Description

Silver white 105V 350mA 36W power supply for led

Features :

Universal AC input / Full range (90VAC up to 264VAC)

Protections: Short circuit / Overload / Over voltage

Built-in active PFC function

Cooling by free air convection

Suitable for LED lighting and moving sign applications

IP65 / IP67 design for indoor or outdoor installations

Damp / wet location outdoor application

Compliance to worldwide safety regulations for lighting

3 years warranty

SPECIFICATION

MODEL		CUF-036-035-FB2
OUTPUT	DC VOLTAGE	105V
	CONSTANT CURRENT REGION	60V-105V
	RATED CURRENT	350mA
	RATED POWER	36W
	RIPPLE & NOISE (max.)	3000mVp-p
	LINE REGULATION	±5%
	LOAD REGULATION	±3%
	SETUP, RISE TIME	130ms, 150ms at full load 220VAC /130VAC
	HOLD UP TIME (Typ.)	--
INPUT	VOLTAGE RANGE	90-264VAC
	FREQUENCY RANGE	47-63Hz
	POWER FACTOR	PF≥0.97/130VAC PF≥0.94/220VAC
	EFFICIENCY (Typ.230Vac/50Hz)	≥89%
	AC CURRENT	0.350A / 130VAC 0.21A / 220VAC
	INRUSH CURRENT(max.)	<600mA
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVER CURRENT (Typ.)	95 - 108%
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	110V-120V
		Protection type : Constant voltage limiting
ENVIRONMENT	WORKING TEMP.	-30 ~ +55℃ @ full load ; +70℃ @ 60% load
	WORKING HUMIDITY	20-95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~ +80℃, 10 ~95% RH
	TEMP. COEFFICIENT	±0.03%/℃(0-50℃)
	VIBRATION	10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD)
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	SOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH
	EMI CONDUCTION & RADIATION	--
	HARMONIC CURRENT	<25%
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A
OTHERS	MTBF	30Khours.
	DIMENSION	L142W38H25mm
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.

	4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.

constant current driver

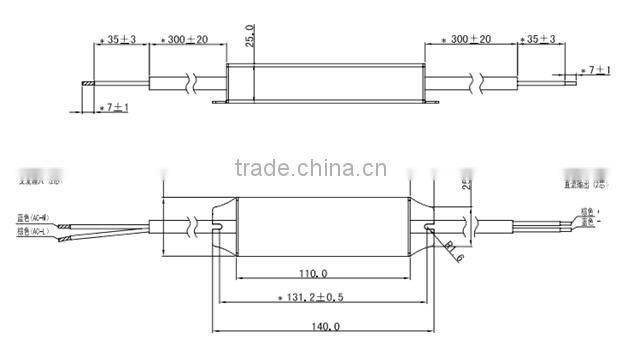

Mechanical Specification

Series Recommend

Packaging & Shipping
