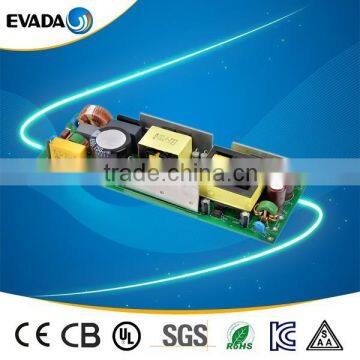

IP67 Design for Indoor 25V 8A 200W dc Power Supply
Negotiable
/ Unit
200 Units(Min. Order)
- Xiamen
- T/T Money Gram Credit Card
You May Like
-
CE/CB Certificate 40V 5A 200W dc Led Driver
-
High Quality PFC Function 40V 5A 200W dc Power Supply
-
Cooling by Free Air Convection 40V 2.5A 100W Mini Power Supply
-
CE/CB Certificate 36V 0.35A 12W Power Supply for Led
-
Cooling by Free Air Convection 36V 0.35A 12W Led Light Power Supply
-
Best 3 Years Warranty 36V 0.35A 12W Power Supply Led
Product Details
| Place of Origin | Fujian, China | Brand Name | Evada | |
| Model Number | CUF-200-800-FA1 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100-264VAC | |
| Output Voltage | 25V | Output Frequency | 50-60Hz | |
| Output Current | 8A |
Product Description
Product Description
IP67 design for indoor 25V 8A 200W dc power supply
| Features : |
| Universal AC input / Full range (up to 264VAC) |
| Protections: Short circuit / Overload / Over voltage |
| Built-in active PFC function |
| Cooling by free air convection |
| Suitable for LED lighting and moving sign applications |
| IP65 / IP67 design for indoor or outdoor installations |
| Damp / wet location outdoor application |
| Compliance to worldwide safety regulations for lighting |
| 3 years warranty |
SPECIFICATION
| MODEL | CUF-200-800-FA1 | |||||||||
| OUTPUT | DC VOLTAGE | 25V | ||||||||
| CONSTANT CURRENT REGION | 20V-25V | |||||||||
| RATED CURRENT | 8A | |||||||||
| RATED POWER | 200W | |||||||||
| RIPPLE & NOISE (max.) | 300mVp-p | |||||||||
| LINE REGULATION | ±5% | |||||||||
| LOAD REGULATION | ±5% | |||||||||
| SETUP, RISE TIME | 3000ms, 80ms at full load 230VAC /115VAC | |||||||||
| HOLD UP TIME (Typ.) | 50ms / 230VAC 16ms / 115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 100-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.99/115VAC PF≥0.97/230VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥88% | |||||||||
| AC CURRENT | 2.290A / 115VAC 0.706A / 230VAC | |||||||||
| INRUSH CURRENT(max.) | COLD START 5A/230VAC | |||||||||
| LEAKAGE CURRENT | <5mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 28V-30V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L225*W69*H39.2mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
| 3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. | ||||||||||
| 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
