Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Best Constant Current 56V 700mA 38W Driver for Led
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Evada
Model Number:
CUF-038-070-EC6
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Led Driver 60mA 150VDCNegotiableMOQ: 200 Units -
Competitive Price Led Driver 90mA 110VDCNegotiableMOQ: 200 Units
-
New Design Cheap High Quality Led Driver 500mA 80VDCNegotiableMOQ: 200 Units
-
China Supplier Promotional Led Driver 700mA 56VDCNegotiableMOQ: 200 Units
-
Direct Factory Price Led Driver 175mA 175VDCNegotiableMOQ: 200 Units
Place of Origin
Fujian, China
Brand Name
Evada
Model Number
CUF-038-070-EC6
Output Power
Other, 38W
Output Type
Single
Input Voltage
Other, 90-264V AC
Output Voltage
72V DC
Output Frequency
50Hz/60Hz
Output Current
700mA
Product Description
Best constant current 56V 700mA 38W driver for led
| Features : | |||
| 1.Universal AC input / Full range (90VAC to 264VAC) | |||
| 2.Protections: Overload / Over voltage /short circuit | |||
| 3.Built-in active PFC function | |||
| 4.Cooling by free air convection | |||
| 5.Compliance to worldwide safety regulations for lighting | |||
| 6.3 years warranty |
Specification
| MODEL | CUF-038-070-EC6 | |||||||||
| OUTPUT | DC VOLTAGE | 72V | ||||||||
| CONSTANT CURRENT REGION | 55-72V DC | |||||||||
| RATED CURRENT | 700mA | |||||||||
| RATED POWER | 38W | |||||||||
| RIPPLE & NOISE (max.) | 200mVp-p | |||||||||
| LINE REGULATION | ±3% | |||||||||
| LOAD REGULATION | ±3% | |||||||||
| SETUP, RISE TIME | 130/150ms at full load 220VAC /110VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90-264VAC | ||||||||
| FREQUENCY RANGE | 47-63Hz | |||||||||
| POWER FACTOR | PF≥0.97/110VAC PF≥0.92/220VAC | |||||||||
| EFFICIENCY (Typ.230Vac/50Hz) | ≥86% | |||||||||
| AC CURRENT | 0.410A / 110VAC 0.210A / 220VAC | |||||||||
| INRUSH CURRENT(max.) | <600mA | |||||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT (Typ.) | 95 - 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 60-75V | |||||||||
| Protection type : Constant voltage limiting | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +55℃ @ full load ; +70℃ @ 60% load | ||||||||
| WORKING HUMIDITY | 20-95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40~ +80℃, 10 ~95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0-50℃) | |||||||||
| VIBRATION | 10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD) | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||||||
| EMI CONDUCTION & RADIATION | Compliance to EN55015, EN55022 (CISPR22) Class B | |||||||||
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3 | |||||||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A | |||||||||
| OTHERS | MTBF | 30Khours. | ||||||||
| DIMENSION | L116*W32*H23mm | |||||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||||||||
3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18. | ||||||||||
| | ||||||||||

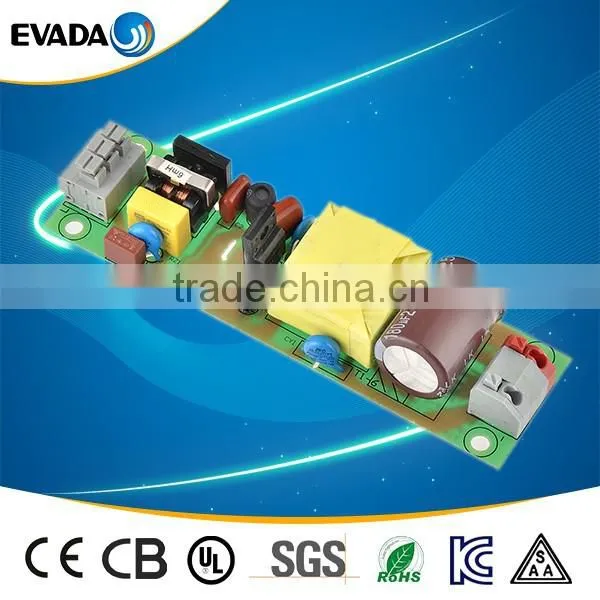

700ma constant current led driver open frame board power supply
Series Recommend
Packaging & Shipping
700ma constant current led driver open frame board power supply
