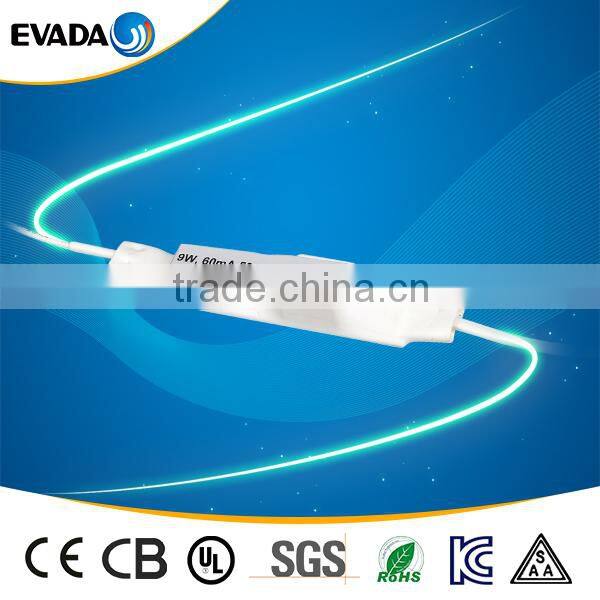

Best IP20 Design Shape Led Driver 175mA 55VDC 9W

FOB Price

Negotiable / Unit

200 Units(Min. Order)

Port Xiamen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Evada
Model Number	CHF-009-017	Output Power	1 - 50W
Output Type	Single	Input Voltage	Other, 176-264VAC
Output Voltage	55VDC	Output Frequency	50Hz/60Hz
Output Current	175mA

Product Description

Best IP20 design shape led driver 175mA 55VDC 9W

Features :
1.Hight input voltage (176VACup to 264VAC)
2.Protections: Overload / Over voltage /short circuit
3.Cooling by free air convection
4.Suitable for LED lighting
5.IP20 design
6.3 years warranty

SPECIFICATION

MODEL

CUF-009-017

OUTPUT

DC VOLTAGE

55VDC

CONSTANT CURRENT REGION

30-55V

RATED CURRENT

175mA

RATED POWER

RIPPLE & NOISE (max.)

2000mVp-p

LINE REGULATION

±3%

LOAD REGULATION

±3%

SETUP, RISE TIME

200/80ms at full load 220VAC /176VAC

INPUT

VOLTAGE RANGE

176-264VAC

FREQUENCY RANGE

47-63Hz

EFFICIENCY (Typ.230Vac/50Hz)

≥89%

AC CURRENT

60mA / 176VAC

INRUSH CURRENT(max.)

COLD START 5A/250VAC

PROTECTION

OVER CURRENT (Typ.)

95 - 108%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

60-65VDC

Protection type : Constant voltage limiting

ENVIRONMENT

WORKING TEMP.

-30 ~ +55℃ @ full load ; +70℃ @ 60% load

WORKING HUMIDITY

20-95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~ +80℃, 10 ~95% RH

TEMP. COEFFICIENT

±0.03%/℃(0-50℃)

VIBRATION

10 - 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY &
EMC

SAFETY STANDARDS

UL1012 ; EN61347-1, EN61347-2-13 independent ; UL60950-1, TUV EN60950-1 (TBD)

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC

SOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 ℃/ 70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55015, EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2 Class C (≥75% load) ; EN61000-3-3

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level (surge 4KV), criteria A

OTHERS

MTBF

30Khours.

DIMENSION

L60*W14*H10.6mm

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.

4. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.

Mechanical Specification

Series Recommend
