XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
--Yiteng Cable Technology Hebei Co., Ltd.
Product Description

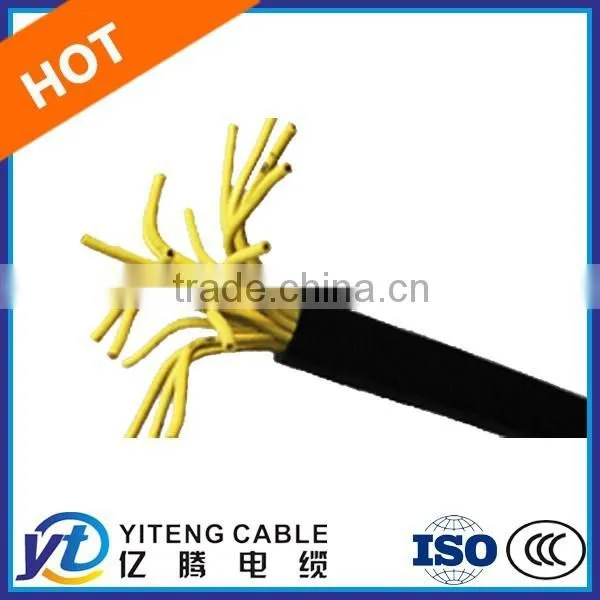

Copper Conductor Shielded|Screened Control Cable with XLPE Insulation and STA SWA Armour or without Armour
1. Application for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
The XLPE Insulated Control cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting circuits with A .C. rated voltage 450/750V and below.
2. Manufacturing Standards for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
ASTM ICEA BS DIN IEC GB AS/NZS etc.
3. Operating Features for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
a). Rated voltage Uo/U is 450/750V.
b). Allowed continuous working temperature of conductor is 90℃
c). Installation temperature of cables should be no less than 0℃ . Bending radius should be not less than 12 times O.D. of cable.
d). Max. Temperature of conductor (Max. 5sec. duration) should be not more than 250℃ .
4. Main Technical Requirements for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
a). Conductor
Conductor construction and D.C.Resistance should be in accordance with table 3
b). Insulation
Insulated core can be identified with different colors and different numbers. The nominal thickness of insulation is 0.7mm. The thinnest point of insulation should be not less than.
90%-0.1mm of nominal value. The Min. resistance of insulation should be in accordance
c).Voltage
Finished cable should withstand voltage withstanding test with AC 50Hz,3000V,5 minutes.
d). Sheath thickness, approximate overall diameter,approximate weight of finshed cable.
5. Construction for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
6. Picture Showcase for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
7. Types, Description and Main Application for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
| Control Cable Type | Control Cable Description | Main Application for Control Cable |
| KYJV |
Copper conductor XLPE insulated and PVC sheathed control cable |
This kind of XLPE control cable is used for laying indoors, in trenches, in ground |
| KYJVR |
Copper conductor XLPE insulated and PVC sheathed flexible
control cable
|
|
| KYJVP |
Copper conductor XLPE insulated and PVC sheathed
control cable with copper tape lapping screen
|
This kind of control cable is used for laying indoors, in trenches, in ground and nterference-resistance |
| KYJVP2 |
Copper conductor XLPE insulated and PVC sheathed flexible
control cable with braiding screen
|
|
| KYJVRP |
Copper conductor XLPE insulated and PVC sheathed
control cable with copper tape longitudinal screen
|
|
| KYJVRP2 |
Copper conductor XLPE insulated and PVC sheathed flexible
control cable with copper tape lapping screen
|
|
| KYJVPT |
Copper conductor XLPE insulated and PVC sheathed
control cable with copper tape longitudinal screen
|
|
| KYJVPL |
Copper conductor XLPE insulated and PVC sheathed
control cable with aluminum tape longitudinal lapping screen
|
|
| KYJV22 |
Copper conductor XLPE insulated and PVC sheathed
control cable with steel tape armour
|
This kind of control cable is used for flxed installation, laying indoors, directly heavier |
| KYJVP2-22(A) |
Copper conductor XLPE insulated and PVC sheathed
steel tape armored control cable with copper tape lapping screen
|
This kind of control cable is usde for fixed installation, laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood |
| KYJVPT-22(A) |
Copper conductor XLPE insulated and PVC sheathed
steel tape armored control cable with copper tape
longitudinal screen
|
|
| KYJVPL-22(A) |
Copper conductor XLPE insulated and PVC sheathed
steel tape armored control cable with aluminum tape
longitudinal screen
|
Note:For flame resistance XLPE insulated and PVC sheathed cable ,add ZR in the front of above types. e.g. ZR-KYJV.
8. Specification for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
| Control Cable Type |
Control Cable Rated |
Nom.area of conductor (mm2) of Control Cable | ||||||
| 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| No .of cores | ||||||||
| KYJV | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVR | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVP2 | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP2 | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVPT | 450/750 | 2~61 | 2~61 | 2~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPL | 450/750 | 7~61 | 7~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVP2-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPT-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPL-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
9. Conductor Construction for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable
| Nom. Cross Sectional mm2 |
Construction of conductor | DC Resistance of conductor at 20℃ (Max.) Ω/km |
Min lnsulation resistance at 90℃ MΩ·km |
||
| Category | No./Nom. Dia of strand mm |
Not tinned |
Tinned | ||
| 0.75 | 1 | 1/0.97 | 24.5 | 24.8 | 1.2 |
| 0.75 | 2 | 7/0.37 | 24.5 | 24.8 | 1.2 |
| 0.75 | 3 | 24/0.20 | 26.0 | 26.7 | 1.2 |
| 1.0 | 1 | 1/1.13 | 18.1 | 18.2 | 1.1 |
| 1.0 | 2 | 7/0.43 | 18.1 | 18.2 | 1.1 |
| 1.0 | 3 | 32/0.20 | 19.5 | 20.0 | 1.1 |
| 1.5 | 1 | 1/1.38 | 12.1 | 12.2 | 0.96 |
| 1.5 | 2 | 7/0.52 | 12.1 | 12.2 | 0.96 |
| 1.5 | 3 | 30/0.25 | 13.3 | 13.7 | 0.96 |
| 2.5 | 1 | 1/1.78 | 7.41 | 7.56 | 0.78 |
| 2.5 | 2 | 7/0.68 | 7.41 | 7.56 | 0.78 |
| 2.5 | 3 | 50/0.25 | 7.98 | 8.21 | 0.78 |
| 4 | 1 | 1/2.25 | 4.61 | 4.70 | 0.67 |
| 4 | 2 | 7/0.85 | 4.61 | 4.70 | 0.67 |
| 6 | 1 | 1/2.76 | 3.08 | 3.11 | 0.56 |
| 6 | 2 | 7/1.04 | 3.08 | 3.11 | 0.56 |
| 10 | 2 | 7/1.35 | 1.83 | 1.84 | 0.52 |
