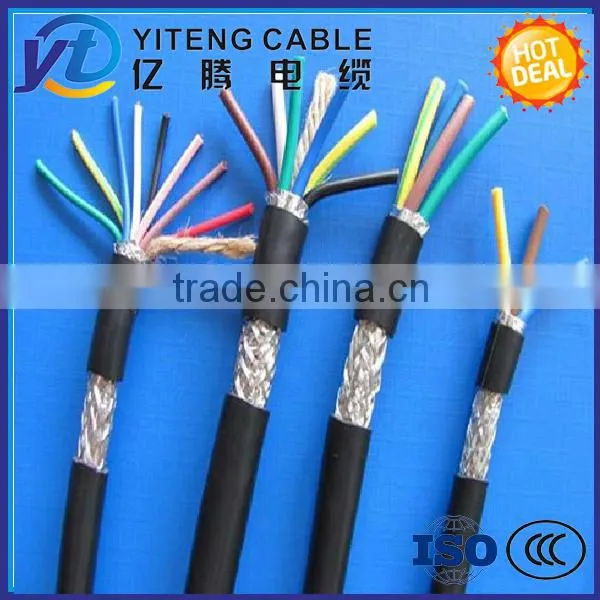

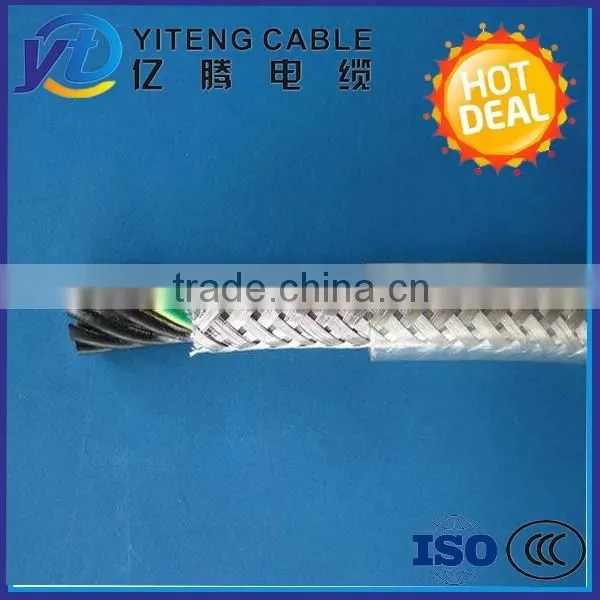

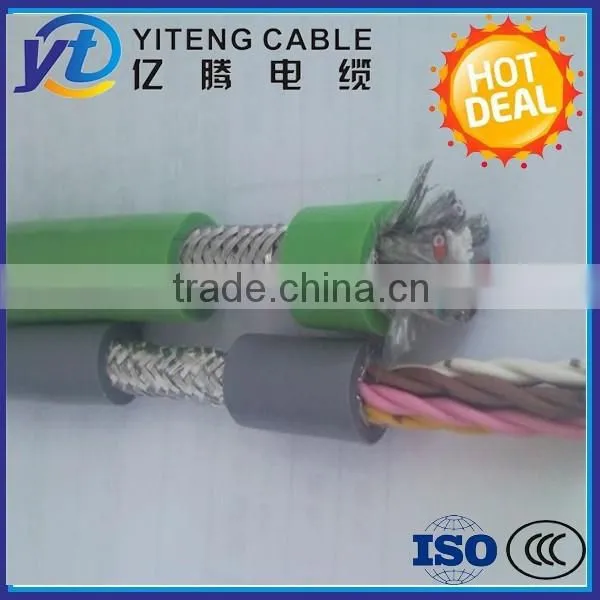

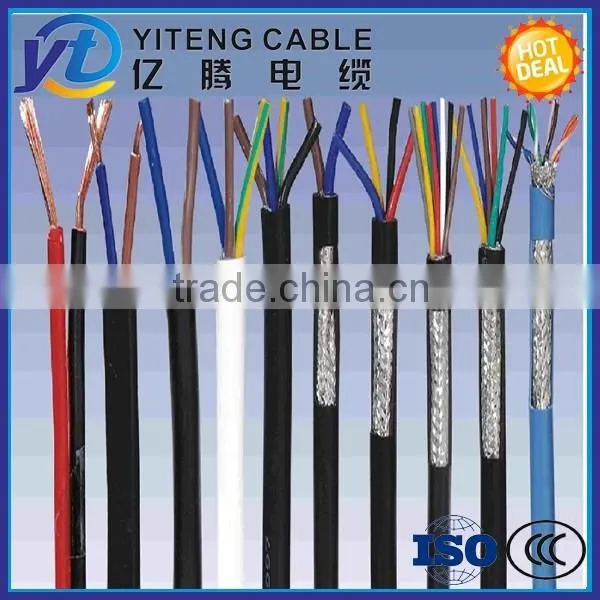

UL2464 Shielded Electrical Cables
Product Description
UL2464 Shielded Electrical CablesApplications:As measuring, monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air-condition system.
Properties:
Heat resistance, good insulation property, excellent chemical performance, electromagnetic wave resistance
Standards: UL758

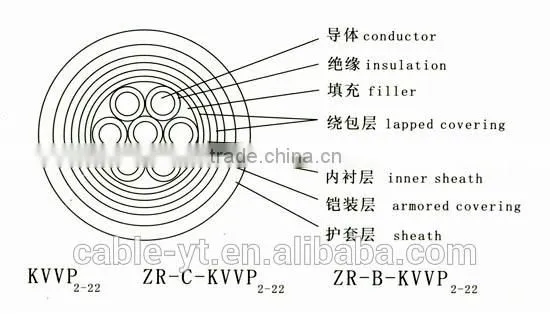

Structure:
Conductor: Fine strands of copper/ tinned copper wire, excellent corrosion resistance.
Insulation: Special PVCColor: Acc. To UL 758Shield: Bare or tinned copper shieldedSheath: 80 Celsius degree heat-resistance flame- resistant PVC, pass VW-1 flame testingColor: Black (RAL 9005) green (RAL6018)Orange (RAL2003) Purple (RAL4001)Or refer to customer's requirement
Technical data:
Rated voltage: 300V Test voltage: 2000V Temperature range:Fixed Installation: -40centigrade----80centigradeFlexing Installation: -10centigrade----80centigradeMinimum bending diameterFixed Installation: 4 X outer diameterFlexing Installation: 15 X outer diameter
Model and Data
Type |
Size |
Conductor |
Weight KG/KM |
O.D. Down (mm) |
O.D. Up (mm) |
|
UL2464 |
16AWG*2C |
65 |
0.16 |
70.3 |
6.9 |
7.4 |
UL2464 |
16AWG*3C |
65 |
0.16 |
90.2 |
7.3 |
7.8 |
UL2464 |
16AWG*4C |
65 |
0.16 |
112.3 |
8 |
8.5 |
UL2464 |
16AWG*6C |
65 |
0.16 |
158.8 |
9.6 |
10.1 |
UL2464 |
16AWG*7C |
65 |
0.16 |
175.9 |
9.6 |
10.1 |
UL2464 |
16AWG*8C |
65 |
0.16 |
199.9 |
10.4 |
11.4 |
UL2464 |
16AWG*9C |
65 |
0.16 |
227.9 |
11.6 |
12.6 |
UL2464 |
16AWG*10C |
65 |
0.16 |
252.9 |
12.4 |
13.4 |
UL2464 |
16AWG*11C |
65 |
0.16 |
274.2 |
12.9 |
13.9 |
UL2464 |
16AWG*12C |
65 |
0.16 |
291.3 |
12.9 |
13.9 |
UL2464 |
16AWG*13C |
65 |
0.16 |
315.8 |
13.6 |
14.6 |
UL2464 |
16AWG*14C |
65 |
0.16 |
332.9 |
13.6 |
14.6 |
UL2464 |
16AWG*15C |
65 |
0.16 |
358.5 |
14.3 |
15.3 |
UL2464 |
16AWG*16C |
65 |
0.16 |
375.6 |
14.3 |
15.3 |
UL2464 |
16AWG*17C |
65 |
0.16 |
401.9 |
15.2 |
16.2 |
UL2464 |
16AWG*18C |
65 |
0.16 |
419 |
15.2 |
16.2 |
UL2464 |
16AWG*19C |
65 |
0.16 |
436.1 |
15.2 |
16.2 |
UL2464 |
16AWG*20C |
65 |
0.16 |
458.2 |
15.6 |
16.6 |
UL2464 |
16AWG*21C |
65 |
0.16 |
480 |
15.8 |
16.8 |
UL2464 |
16AWG*22C |
65 |
0.16 |
510.7 |
16.9 |
17.9 |
UL2464 |
16AWG*23C |
65 |
0.16 |
538.4 |
17.7 |
18.7 |
UL2464 |
16AWG*24C |
65 |
0.16 |
555.5 |
17.7 |
18.7 |
UL2464 |
16AWG*25C |
65 |
0.16 |
578.2 |
18.1 |
19.1 |
UL2464 |
16AWG*26C |
65 |
0.16 |
595.3 |
18.1 |
19.1 |
UL2464 |
16AWG*27C |
65 |
0.16 |
612.4 |
18.1 |
19.1 |
UL2464 |
16AWG*28C |
65 |
0.16 |
639.2 |
18.8 |
19.8 |
UL2464 |
16AWG*29C |
65 |
0.16 |
656.3 |
18.8 |
19.8 |
UL2464 |
16AWG*30C |
65 |
0.16 |
673.4 |
18.8 |
19.8 |
UL2464 |
16AWG*31C |
65 |
0.16 |
701.6 |
19.6 |
21.1 |
UL2464 |
16AWG*32C |
65 |
0.16 |
718.7 |
19.6 |
21.1 |
UL2464 |
16AWG*33C |
65 |
0.16 |
735.8 |
19.6 |
21.1 |
UL2464 |
16AWG*34C |
65 |
0.16 |
764.9 |
20.4 |
21.9 |
UL2464 |
16AWG*35C |
65 |
0.16 |
782 |
20.4 |
21.9 |
UL2464 |
16AWG*36C |
65 |
0.16 |
799.1 |
20.4 |
21.9 |
UL2464 |
16AWG*37C |
65 |
0.16 |
816.2 |
20.4 |
21.9 |
Application
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
Yiteng Cable Technology Hebei Co., Ltd
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
