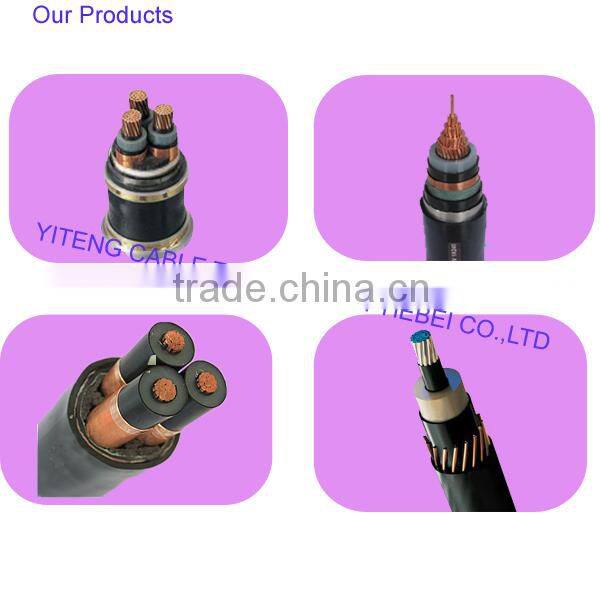

6|10kV CU|XLPE|PVC|PE Medium Voltage Power Cable

6/10kV CU|XLPE|PVC|PE Medium Voltage Power Cable

Description

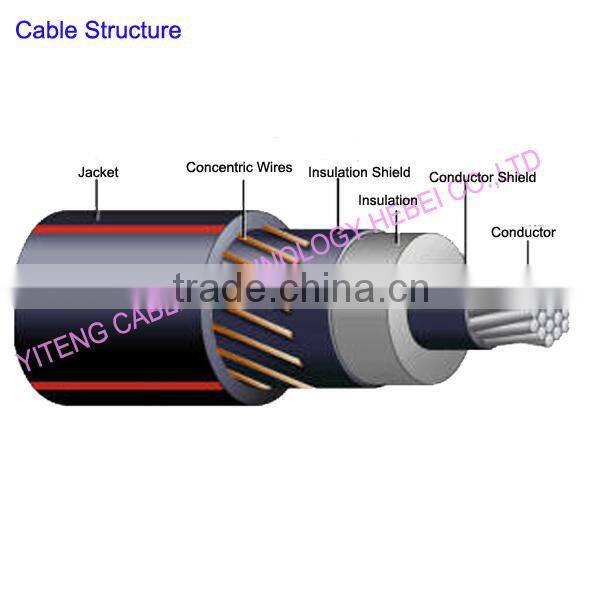

Construction: Compacted stranded circular copper conductor, extruded semi-conducting compound as conductor screen, cross-linked polyethylene(XLPE) insulation, semi-conducting compound as insulation screen, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.

Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.
Single core cable in magnetic duct is not permissible.

Operating Characteristics
Rated voltage U0/U(Um): 6/10(12)kV
U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
U is the rated power frequency voltage between conductors for which the cableis designed;
Um is the maximum value of the “highest system voltage” for which the equipment may be used.
Max. permissible continuous operating temperature of conductor: 90 °C
Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C
The ambient temperature under installation should not be lower than: 0 °C
The bending radius of cable is recommended as following:
For single core cable: not less than 20 times of the diameter of cable
For three core cable: not less than 15 times of the diameter of cable

Manufacturing Standards GB/T 12706-2008, IEC 60502-2

Company

Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250

Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.

FAQ:

1.Q: Is your company a manufacturer or a trade company?

A: We are cable manufacturer.

2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What is your sample policy?

A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?

A: We can select some popular products for you immediately.  Please let us know your requirements so that we can send out the quotation to you.
