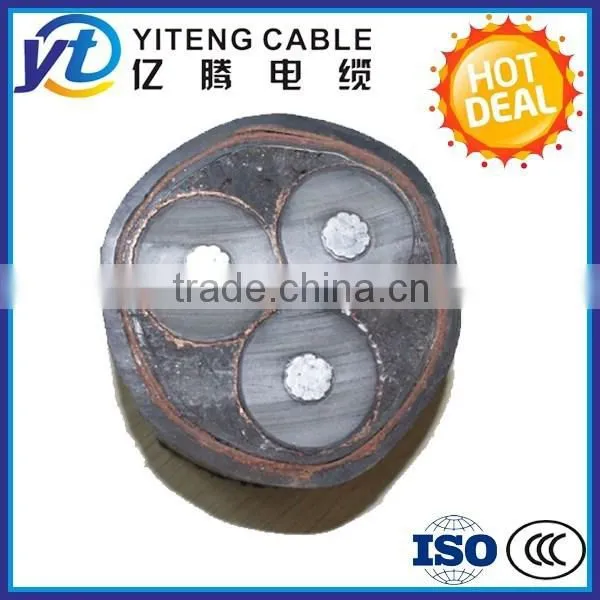

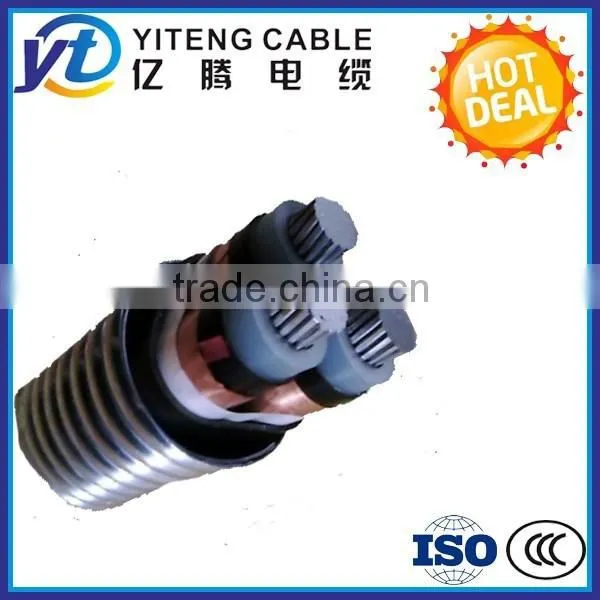

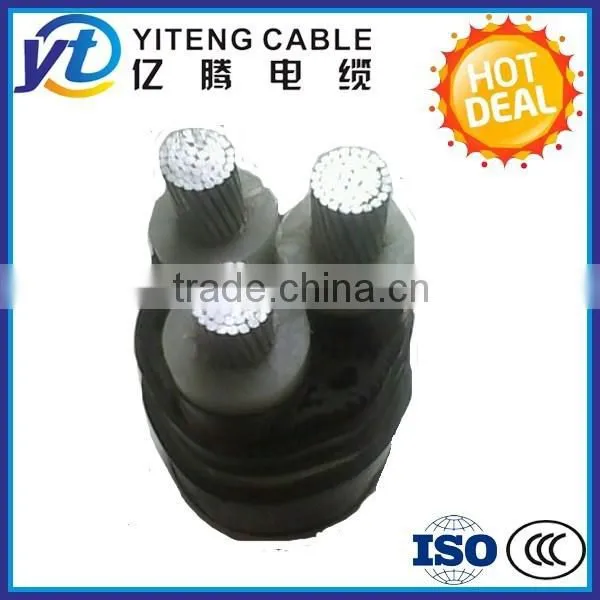

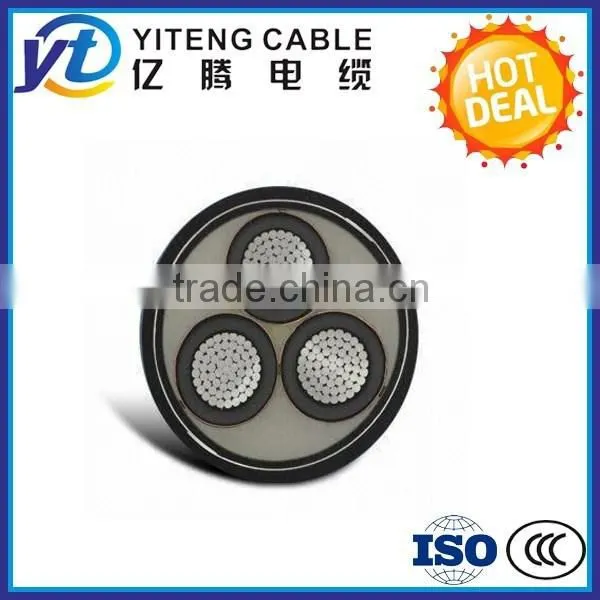

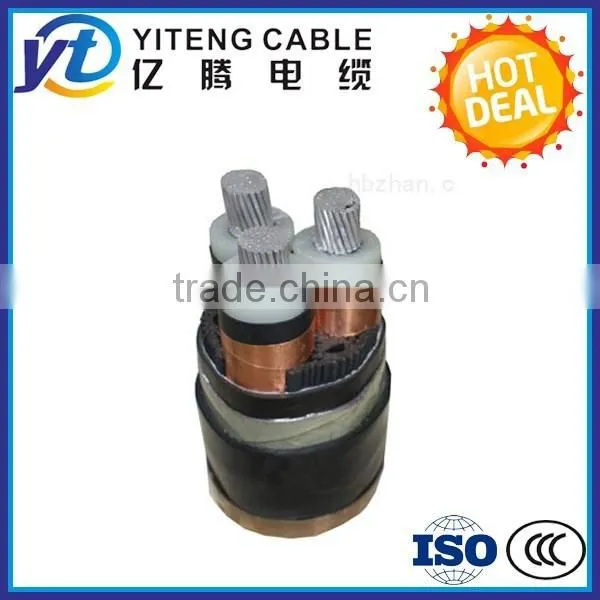

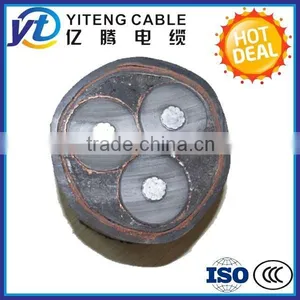

6/10kV Medium Voltage Power Cable
Product Standards
The product according to GB/T12706 " rated voltage 35KV and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the International Electrotechnical Commission standard IEC, British Standards , the German standards and U.S. standards.
Scope
This product is suitable for power frequency rated voltage 3.6/6KV ~ 26/35KV transmission and distribution lines of electric energy.
Use features
Rated power frequency voltage U0 / U is 3.6/6KV ~ 26/35KV. Allowing long cable conductor maximum operating temperature is 90 ℃. Short (the longest duration of no more than 5s) conductor temperature does not exceed 250 ℃. The ambient temperature should not be less than 0 ℃. Cable bend radius: three core cable cable diameter is not less than 15 times ; Cables should not be less than 20 times the cable diameter.
Manufacturing Standards GB/T 12706-2008, IEC 60502-2
Model |
Name |
Scope |
YJV |
XLPE insulated PVC sheathed power cable |
Indoors, tunnels and trenches and other places can not bear external mechanical forces . Single-core cables laid in magnetic ducts are not allowed . |
YJLV |
XLPE insulated PVC sheathed power cable |
|
YJY |
XLPE insulated PE sheathed power cable |
|
YJLY |
XLPE insulated PE sheathed power cable |
|
YJV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
Indoor , tunnel, cable trench, or laying , able to bear certain external mechanical forces , but can not afford a big pull .
|
YJLV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
|
YJV23 |
XLPE insulated steel tape armored PE sheathed power cable |
|
YJLV23 |
XLPE insulated steel tape armored PE sheathed power cable |
|
|
YJV32 YJV42 |
XLPE insulated steel wire armored PVC sheathed power cable |
Indoors, in tunnel, cable trench, well or burying , able to bear external mechanical forces and a certain tension. |
|
YJLV32 YJLV42 |
XLPE insulated steel wire armored PVC sheathed power cable |
|
|
YJV33 YJV43 |
XLPE insulated steel wire armored PE sheathed power cable |
|
|
YJLV33 YJLV43 |
XLPE insulated steel wire armored PE sheathed power cable |
Production range
Model |
Number of cores |
Rated voltage |
||||||
3.6/6 |
6/6 6/10 |
8.7/10 8.7/15 |
12/20 |
18/20 18/30 |
21/35 |
26/35 |
||
Nominal cross section | ||||||||
|
YJV YJLV YJY YJLY |
1 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
3 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
|
|
YJV22 YJLV22 YJV23 YJLV23 |
1 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
3 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
|
|
YJV32 YJLV32 YJV33 YJLV33 |
1 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
3 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
|
|
YJV42 YJLV42 YJV43 YJLV43 |
1 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
25-1000 |
3 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
25-500 |
|
