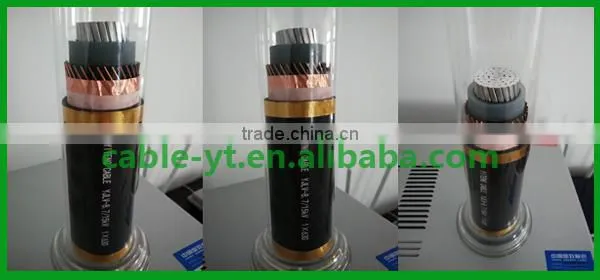

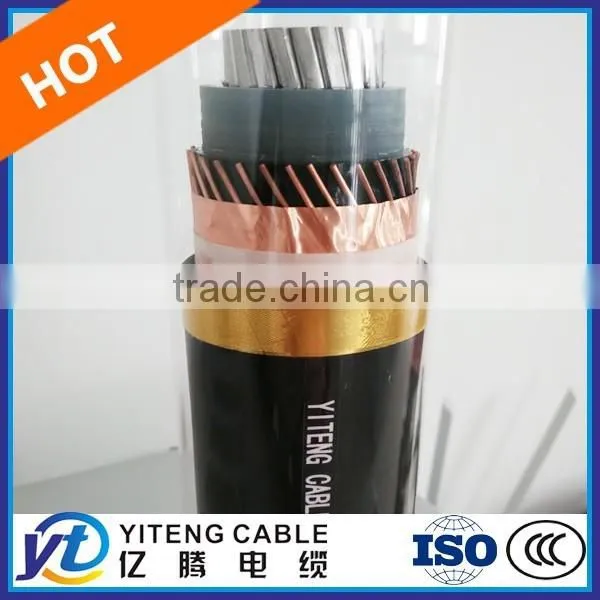

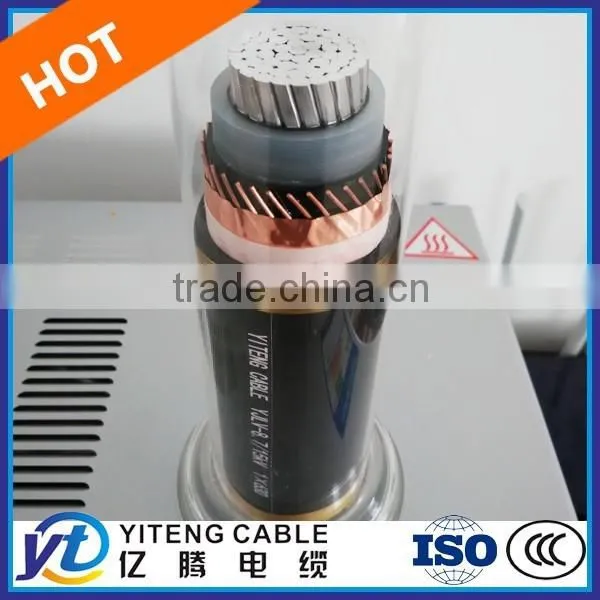

8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction
Specifications:
1. Voltage: 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
2. Standards: IEC 60502, IEC 60228, IEC 60332, GB/T 12706.1-2008
3. Applications: Suitable for use in power distribution lines with rated voltage below and up to 35KV.
8.5/15KV Underground Galvanized Steel Wire Armoured Power Cable for Construction
| Type | Description | Application | |
|
Cu |
Al | ||
|
YJV |
YJLV | Copper-core(aluminum core)XLPE insulation and PVC sheath power cable | For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces |
|
YJY |
YJLY | Copper-core(aluminum core)XLPE insulation and PE sheath power cable | |
|
YJV22 |
YJLV22 | Copper-core(aluminum core)XLPE insulation steel tape armoured PVC sheath power cable | For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces |
|
YJV23 |
YJLV23 | Copper-core(aluminum core)XLPE insulation steel tape armoured PE sheath power cable | |
|
YJV32 |
YJLV32 | Copper-core(aluminum core)XLPE insulation steel wire armoured PVC sheath power cable | For laying in water or ground along route with large difference of level,can able to bear external mechanical forces |
|
YJV33 |
YJLV33 | Copper-core(aluminum core)XLPE insulation steel wire armoured PE sheath power cable | |
|
YJV42 |
YJLV42 | Copper-core(aluminum core)XLPE insulation thick wire armoured PVC sheath power cable | |
|
YJV43 |
YJLV43 | Copper-core(aluminum core)XLPE insulation thick wire armoured PE sheath power cable | |
Notes:1.Ratproof,termite-proof,moisture-proof and other special requiremments cables are available.
2.The single core armoured cable are used for DC system only.As for AC system,non-megnetical materials shoule be used,its corresponding code is 62,63,72,73;
3.It is not recommended AL-core fire retardent cable.When there is a fire,flame temperatures may reach 700℃ above due to the meilting point of aluminium is only 660℃,the conductor may be fused;
4.Flame retaradant/fire resistant power cable are available:Representation method of flame retardant grade is the "Z" followed by"A","B","C",such as the "ZA","ZB","ZC".When "ZR" expressed,generally considered to be "C" class of flame retardant.Flame retardant level representation is "ZN" middle "A","B","C",such as the "ZA","ZB","ZC".While using "NH" expressed,it generally considered to be "ZCN".For example;
| Type | Description | Equal to |
| ZC-YJV | Copper-core XLPE insulation and PVC sheath flame retaradant C type power cable |
ZR-YJV |
| ZCN-YJV | Copper-core XLPE insulation and PVC sheath flame retaradant C type fire resistant power cable | NH-YJV |
