Medium Voltage Rated 8.7/15KV XLPE Cable
1. Application for Medium Voltage Rated 8.7/15KV XLPE Cable:
8.7/15kV XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.
2. Standards for Medium Voltage Rated 8.7/15KV XLPE Cable:
IEC60502-2
BS6622
BS7870-4, BS7870-7, BS7870-8
3. Cores for Medium Voltage Rated 8.7/15KV XLPE Cable:
1 Core, 3 Core
1. Conductor: Copper or Aluminum MV Power Cable
2. semiconductive conductor screen
3. Insulation: XLPE (Cross-Linked Polyethylene)
4. semiconductive insulation screen
5. metallic screen(Copper wire or Copper tape Screen)
6. PVC bedding
7. Armour:
Single Core Cable: Aluminum Wire
Three Core Cable: Galvanized steel wires armour or Galvanized steel tape armour
8. PVC outer sheath
Sheath Color: Black or Colors
4. Product Description for Medium Voltage Rated 8.7/15KV XLPE Cable:
- XLPE insulated PVC sheathed medium voltage power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed medium voltage power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed medium voltage power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed medium voltage power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed medim voltage power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed medium voltage power cable (FR/XLPE/SWA/PVC Cable)
FR – Flame Retardant
|
XLPE Power Cable Type |
Description for XLPE Insulated PVC Sheathed Power Cable | Main Application for XLPE Insulated PVC Sheathed Power Cable |
|
YJV YJLV |
Cu or AL conductor XLPE insulated PVC Sheath Medium Voltage Power cable |
This type of XLPE insulated PVC Jacketed medium voltage power cable is used for laying indoor and outdoor, unable to bear certain extermal mechanical force but the tractive force during laying. Laying Single core cable in magnetic duct is not permissble |
| YJV22 YJLV22 |
Cu or AL conductor XLPE insulated steel tape armored PVC sheathed medium voltage power cable |
This type of XLPE insulated PVC Jacketed medium voltage power cable is used for laying underground, bear external mechanical force, but unable to bear large pulling force |
| YJV32 YJLV32 |
Cu or AL conductor XLPE insulated thin steel wire armoured PVC sheathed medium voltage power cable |
This type of XLPE insulated PVC Jacketed medium voltage power cable is used for laying under ground, vertical well, or underwater, able to bear certain pulling force. |

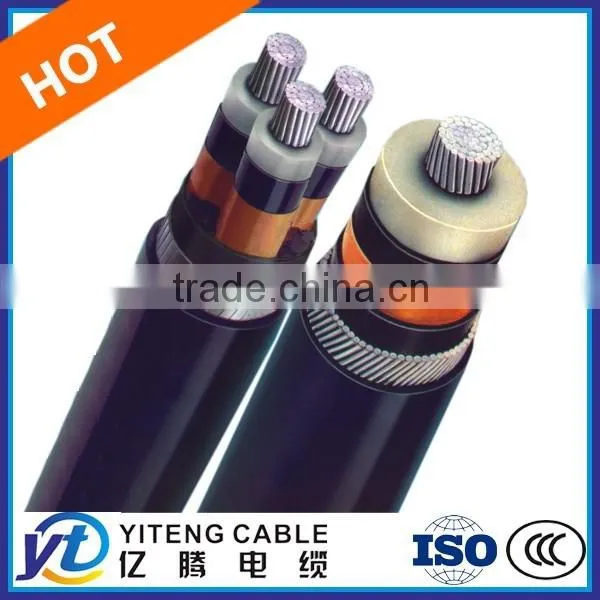

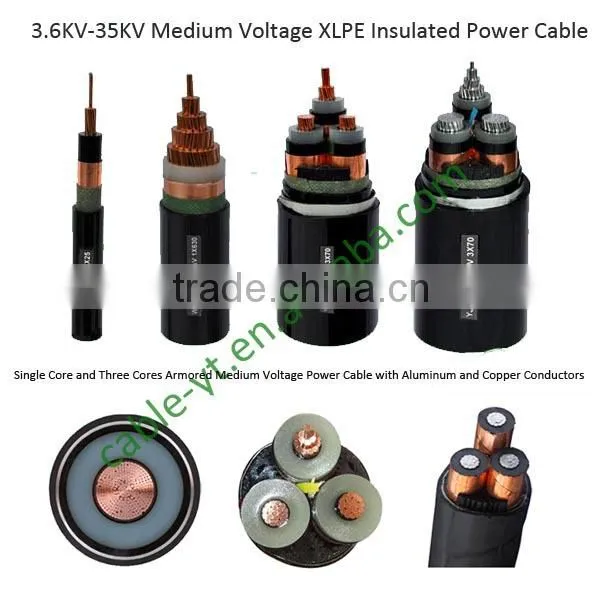

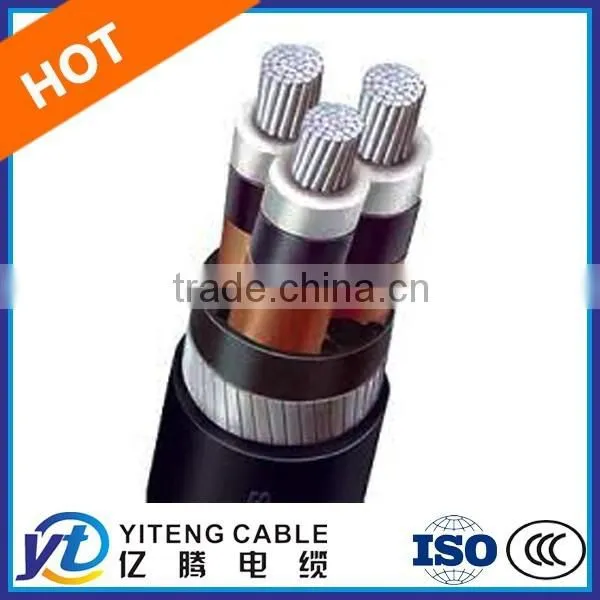

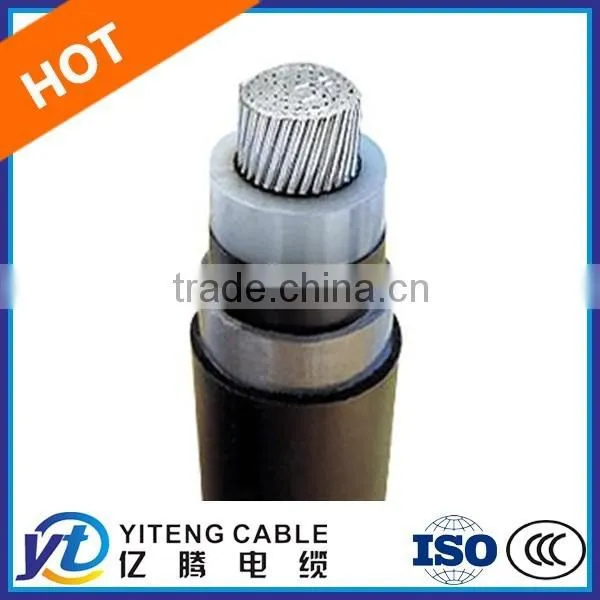

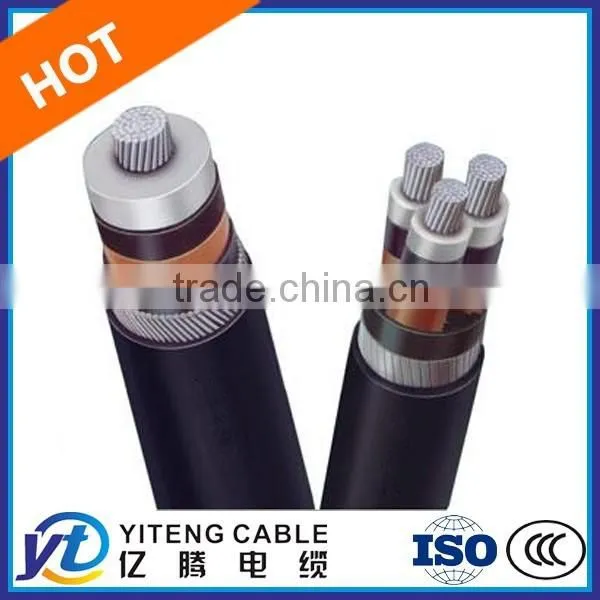

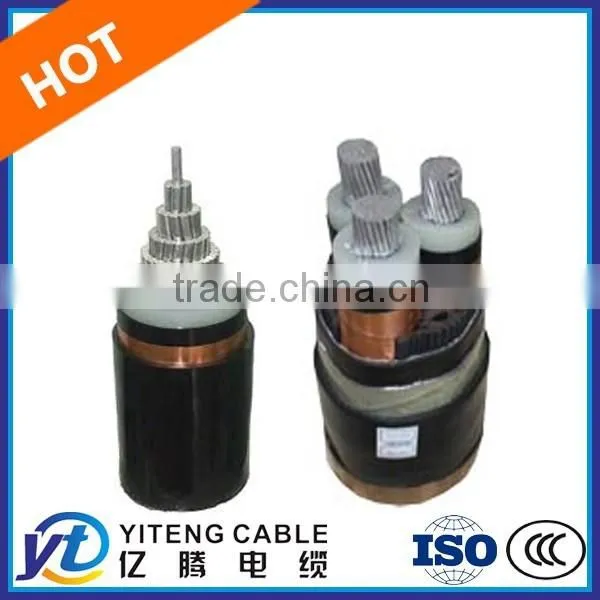

5. Cable Structure and Picture for Medium Voltage Rated 8.7/15KV XLPE Cable:
6. Diagram for Medium Voltage Rated 8.7/15KV XLPE Cable:
| Nominal cross section mm2 |
Insulation Thickness mm |
Approx. Overall Dia.& Weight | ||||
| Steel Tape layer×thickness |
PVC sheath | PE sheath | ||||
| Overall dia. mm |
Weight kg/km |
Overall dia. mm |
Weight kg/km |
|||
| 50 | 10.5 | 2x0.8 | 89.0 | 8791 | 89.0 | 8326 |
| 70 | 10.5 | 2x0.8 | 93.1 | 9878 | 93.1 | 9377 |
| 95 | 10.5 | 2x0.8 | 97.0 | 11079 | 97.0 | 10530 |
| 120 | 10.5 | 2x0.8 | 100.5 | 12238 | 100.5 | 11655 |
| 150 | 10.5 | 2x0.8 | 104.4 | 13597 | 104.4 | 12976 |
| 185 | 10.5 | 2x0.8 | 108.1 | 15050 | 108.1 | 14391 |
| 240 | 10.5 | 2x0.8 | 114.0 | 17386 | 114.0 | 16658 |
| 300 | 10.5 | 2x0.8 | 118.8 | 19710 | 118.8 | 18934 |
| 400 | 10.5 | 2x0.8 | 126.6 | 23603 | 126.6 | 22722 |
Continuous current capacity of single core XLPE insulated medium voltage power cable
| Type | YJV YJLY YJY YJLY | |||||||
| Arrange type |
Delta(connect each other) |
Flat(the space betweem adjacent cores is the overall diameter of cable) |
||||||
| Laying method Nominal cross section area(mm2) |
In air | Direct buired | In air | Direct buired | ||||
| Cu | Al | Cu | Al | Cu | Al | Cu | Al | |
| 50 | 215 | 170 | 260 | 200 | 250 | 190 | 225 | 175 |
| 70 | 270 | 210 | 320 | 250 | 305 | 240 | 275 | 215 |
| 95 | 330 | 255 | 390 | 300 | 375 | 290 | 335 | 260 |
| 120 | 380 | 295 | 445 | 345 | 435 | 335 | 380 | 295 |
| 150 | 430 | 330 | 500 | 395 | 490 | 380 | 425 | 330 |
| 185 | 490 | 380 | 570 | 440 | 565 | 435 | 485 | 375 |
| 240 | 575 | 450 | 665 | 515 | 665 | 520 | 565 | 435 |
| 300 | 660 | 515 | 750 | 585 | 760 | 590 | 635 | 495 |
| 400 | 765 | 600 | 867 | 680 | 890 | 695 | 730 | 570 |
| 500 | 875 | 695 | 980 | 775 | 1030 | 810 | 830 | 655 |
| 630 | 1010 | 810 | 1110 | 895 | 1200 | 950 | 950 | 755 |
| 800 | 1150 | 940 | 1250 | 1020 | 1380 | 1110 | 1080 | 865 |
| 1000 | 1260 | 1050 | 1360 | 1130 | 1540 | 1250 | 1190 | 960 |
| Ambient temperature | 40 ℃ | 25℃ | 40 ℃ | 25 ℃ | ||||
| Operating temperature | 90℃ | |||||||
1)Reference continuous current capacity of steel wire armoured single-core cable is 65% of that of non-armoured single-core cable.
2)The moisture in soil is not considered.The soil thermal resistivity ρ w=1.0℃ m/W.See following table for correction coefficient of reference current carrying capacity.
3)One end of metal screen shall be earthed.
Continuous current capacity of three-core XLPE insulated medium voltage power cable
| Type | YJV YJLY YJY YJLY | YJV22 YJLV22 YJV32 YJLV32 YJV42 YJLV42YJY22 YJLY22 YJY32 YJY32 YJLY42 YJLY42 |
||||||
| Laying method Nominal cross section area(mm2) |
In air | Direct buired | In air | Direct buired | ||||
| Cu | Al | Cu | Al | Cu | Al | Cu | Al | |
| 335 | 150 | 115 | 160 | 125 | 150 | 115 | 160 | 125 |
| 350 | 180 | 140 | 190 | 145 | 180 | 140 | 190 | 145 |
| 370 | 220 | 170 | 230 | 180 | 220 | 170 | 230 | 180 |
| 395 | 265 | 205 | 275 | 215 | 265 | 205 | 275 | 215 |
| 3 120 | 305 | 235 | 315 | 245 | 310 | 240 | 315 | 245 |
| 3 150 | 345 | 270 | 355 | 275 | 350 | 270 | 355 | 275 |
| 3 185 | 390 | 305 | 400 | 310 | 400 | 310 | 400 | 310 |
| 3 240 | 455 | 355 | 460 | 360 | 465 | 360 | 460 | 360 |
| 3 300 | 525 | 410 | 520 | 410 | 535 | 420 | 520 | 410 |
| 3 400 | 600 | 470 | 590 | 465 | 615 | 485 | 590 | 465 |
| Ambient temperature | 40 ℃ | 25 ℃ | 40 ℃ | 25 ℃ | ||||
| Operating temperature | 90℃ | |||||||
1).The moisture in soil is not considered.The soil thermal resistivity ρ w=1.0℃ m/W.See following table for correction coefficient of reference current carrying capacity.
2).Cable is installed separately,the adjacent cable has no thermal effect on each other.
Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receiving.
Service Commitment-Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission.
Company Profile:
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
Δ Aluminum Alloy Cable with or without Armor and Interlock,
Δ Control Cable with Multi-Cores,
Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
Δ Shielded Cable or Screened Cable,
Δ ABC Cable in Aluminum for Overhead Application,
Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
Δ Rubber Cable for General Purposes, Welding Machines or for Mining,
Δ Armored Cable with Steel Tape or Steel Wire Armor,
Δ PVC Cable with PVC Insulation and PVC Sheath,
Δ Low Voltage Power Cable,
Δ Medium Voltage Power Cable,
Δ Fire Resistant Cable and Flame Retardant Cable,
Δ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
Δ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable,
Besides, Yiteng Cable also produce cables of customers' special requirement.
These cables can be used for power transmission in air, underground or industrial, such as power station, coal, railway, agriculture and estate, etc...
Questions and Answers!
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables:
Bare Conductor: AAC, AAAC, ACAR, ACSR, etc
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
Yiteng Cable accepts small trial orders to facilitate customer's inspection and trial of our cable.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
We hope to get in touch with you!
