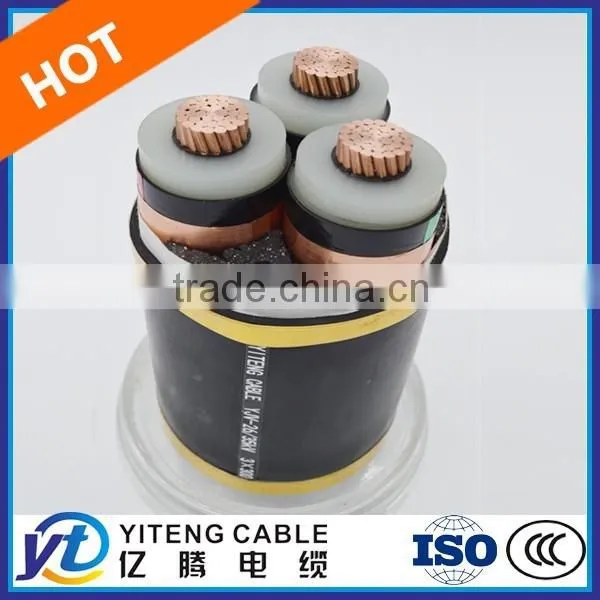

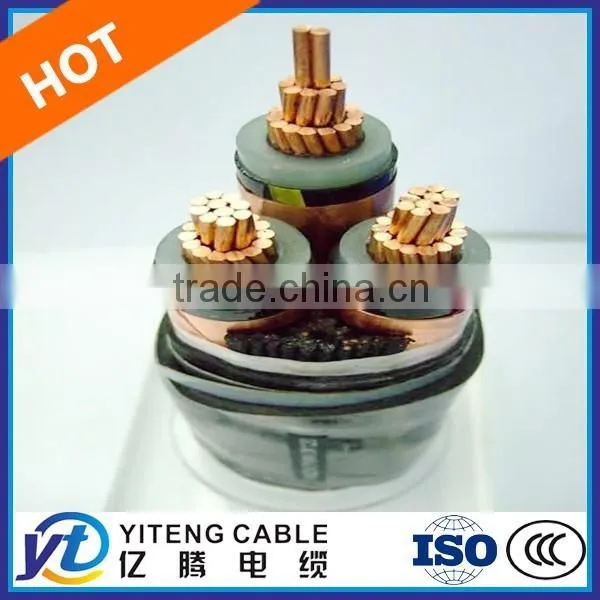

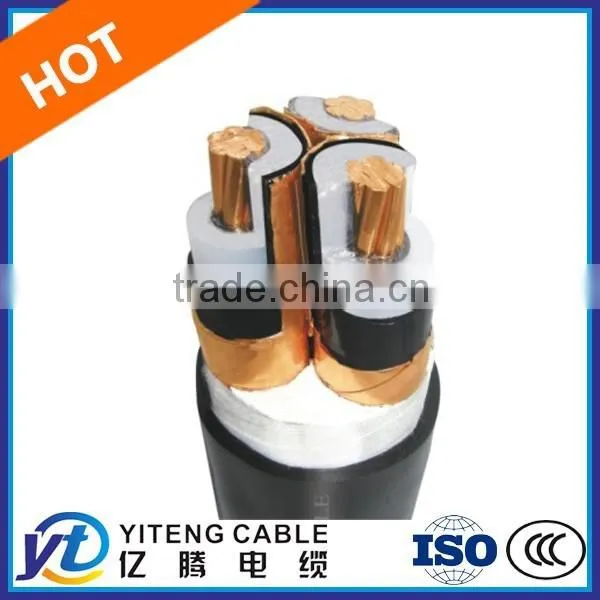

Top Quality 6-35KV Medium Voltage XLPE Insulated Power Cable with Three Cores
Product Description:

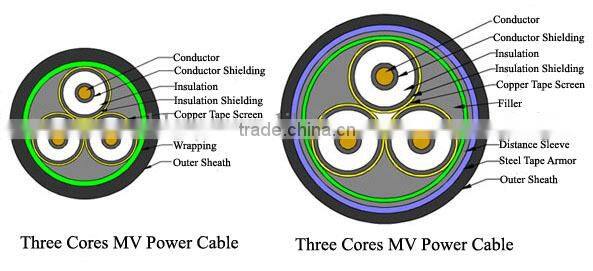

1. Diagram of Core Structures of Medium Voltage Power Cable with Three Cores:

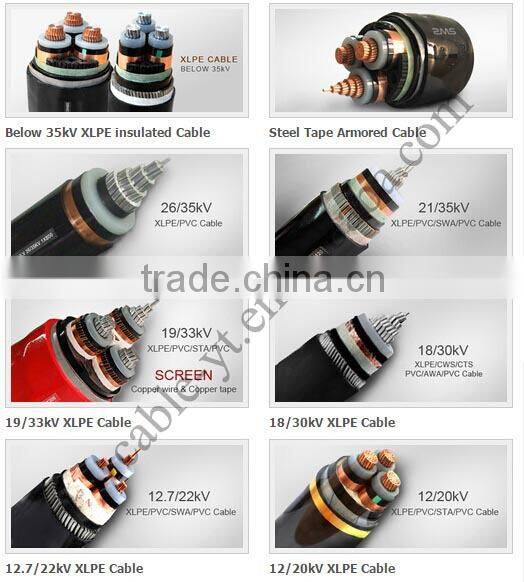

2. Type and Specification of Medium Voltage Power Cable in Aluminum or Copper Material and PVC or XLPE Insulation:
| Power Cable Type | Power Cable Description |
Power Cable Application |
YJV YJLV |
|
|
YJY YJLY |
|
|
YJV22 YJLV22 |
|
|
YJV23 YJLV23 |
|
|
YJV32 YJV42 YJLV42 YJLV32 |
|
These types of medium voltage power cables are mainly used for laying in high drop area ,can bear external mechanical force and certain tension. |
YJV33 YJV43 YJLV43 YJLV33 |
|
|
| ||
3. Correction Factor of Current Rating under Different Soil Temperature for Medium Voltage XLPE Insulated and PVC Sheathed Power Cable
|
Operating Temperature of Power Cable Conductor |
Ambient Temperature in Soil |
|||||
10 |
15 |
20 |
25 |
30 |
35 |
|
Correction Factor of Current Rating | ||||||
90℃ |
1.11 |
1.07 |
1.04 |
1.00 |
0.96 |
0.92 |
4. Correction Factor of Current Rating under Different Soil Thermal Resistivity for Medium Voltage XLPE Insulated and PVC Sheathed Power Cable
|
Operating Temperature of Power Cable Conductor |
|
(k.m/w)Soil Thermal Resistivity |
|||
0.8 |
1.0 |
1.2 |
1.5 |
||
Correction Factor of Current Rating | |||||
90℃ |
0.6/1-6/6 |
1.08 |
1.0 |
0.95 |
0.77 |
6/10-12/15 |
1.06 |
1.0 |
0.94 |
0.78 |
|
12/20-26/35 |
1.06 |
1.0 |
0.94 |
0.80 |
|
5. Correction Factor of Current Rating under Different Air Temperature for Medium Voltage XLPE Insulated and PVC Sheathed Power Cable
|
Operating Temperature of Power Cable Conductor |
Ambient Temperature in Air ℃ |
|||||||
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|
Correction Factor of Current Rating | ||||||||
90℃ |
1.23 |
1.17 |
1.12 |
1.06 |
1.00 |
0.94 |
0.87 |
0.81 |
Company Profile:
Yiteng Cable Technology Hebei Co., Ltd.
| Welcome Your Visit! Hope to Get in Touch with You! | |
| Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
| Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
| Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
| Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
| Cable Products Type | Customized Cables per Requirement |
| Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
| Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
| Aluminum Alloy Cable with/ without Armor and Interlock | |
| Shielded/ Screened Control Cable | |
| Computer Shielded Cable | |
| Flexible Rubber Cable | |
| Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
| High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
| Fire Resistant/ Flame Retardant Power Cable | |
| Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour ( Armour Type: Steel Tape or Steel Wire) | |
Quality Commitment -Why Choose US? :
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.
Yiteng Cable’s business philosophy is and always remains “Helping Customers to Succeed”. We commit ourselves and our resources to the development of the cable industry by establishing strategic cooperation with global agents and customers.
All for Customers—More Than A Promise
Apart from supplying good quality cables, our service teams are always ready to provide expertise to customers.
Here's What Yiteng Cable Is Committed to Offer for Every Customer:
- High cable quliaty product with competitive price;
- OEM cable product with low volumn of order;
- Custom cable design per your specific requirements and budgets;
- Fast and on-time delivery of cable;
- Flexible cable business deal
- Chief cable engineer with over 20 years' experience;
- Harmonious colleague and customer relationship;
- All cable products 100% Inspection;
- Comprehensive after-sale service for cables.
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
Yiteng Cable accept small trial orders to facilitate customers' inspection and trial of our cable.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Yiteng Cable welcomes your inquiry and we are always at your service!
At last, Yiteng Cable wish you a pleasant cable purchase journey.
