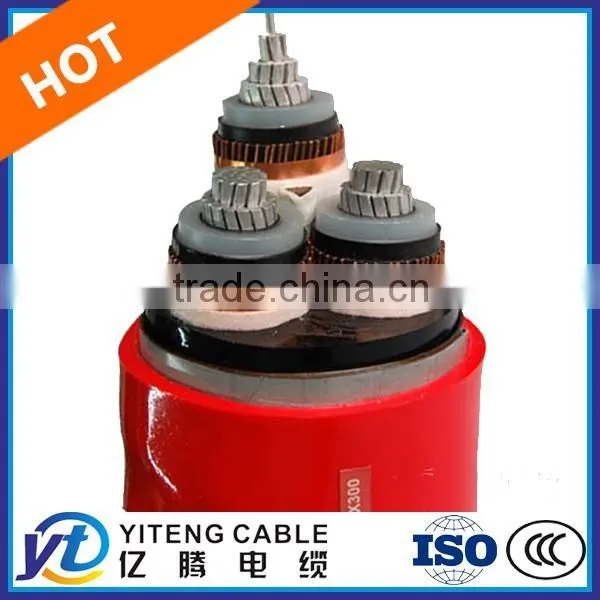

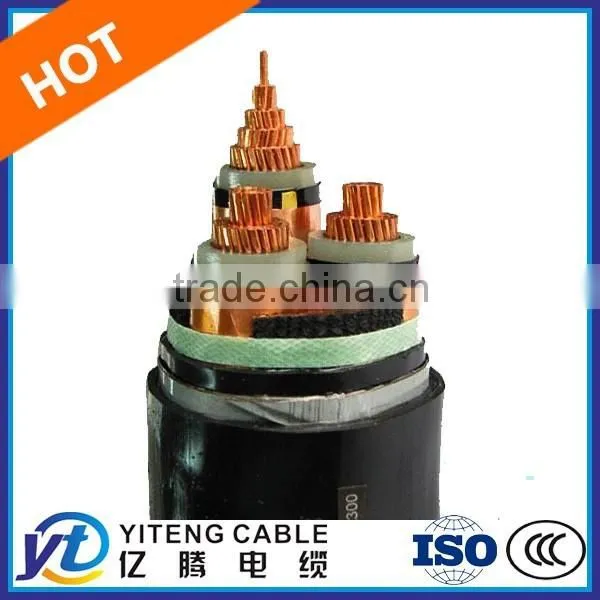

XLPE Insulated Copper Conductor Armored Electric Power Cable
-Provided By Yiteng Cable-- a Specialized Cable Manufacturer for 20 Years!
Company Profile:
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
Δ Aluminum Alloy Cable with or without Armor and Interlock,
Δ Control Cable with Multi-Cores,
Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
Δ Shielded Cable or Screened Cable,
Δ ABC Cable in Aluminum for Overhead Application,
Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
Δ Rubber Cable for General Purposes, Welding Machines or for Mining,
Δ Armored Cable with Steel Tape or Steel Wire Armor,
Δ PVC Cable with PVC Insulation and PVC Sheath,
Δ Low Voltage Power Cable,
Δ Medium Voltage Power Cable,
Δ Fire Resistant Cable and Flame Retardant Cable,
Δ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable,
Besides, Yiteng Cable also produce cables of customers' special requirement.
These cables can be used for power transmission in air, underground or industrial, such as power station, coal, railway, agriculture and estate, etc...
Product Description

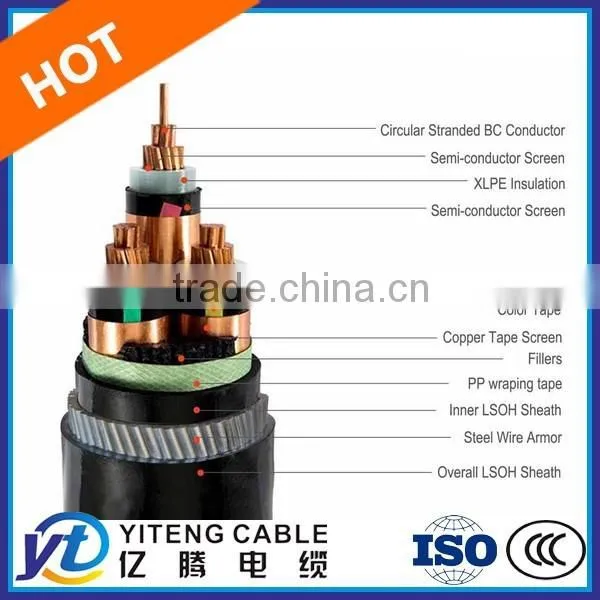

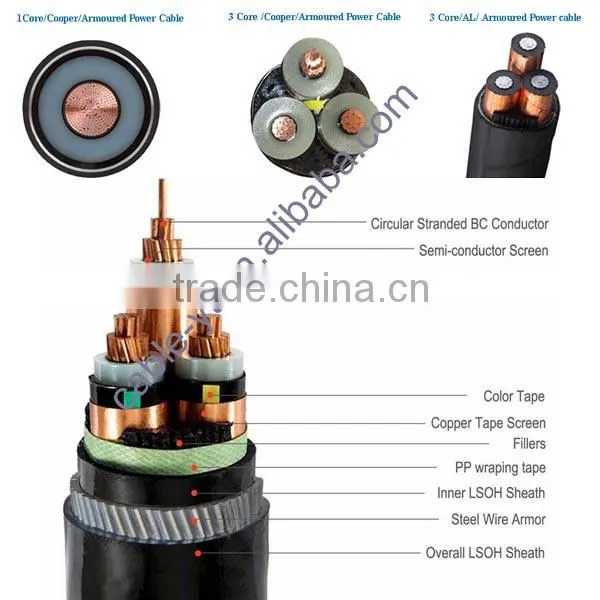

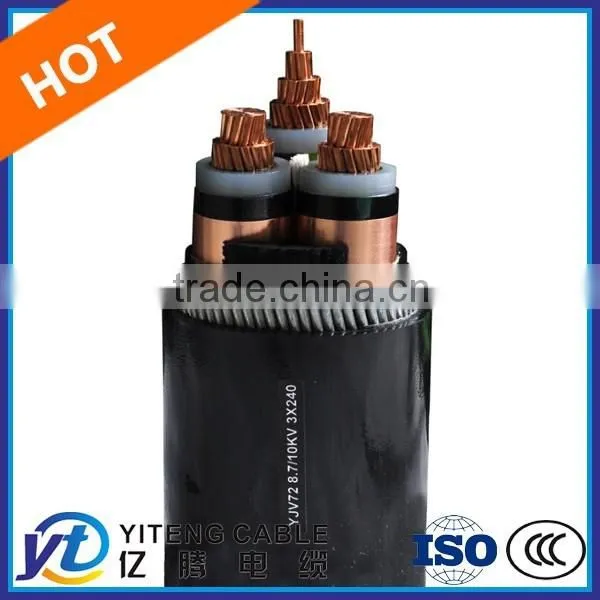

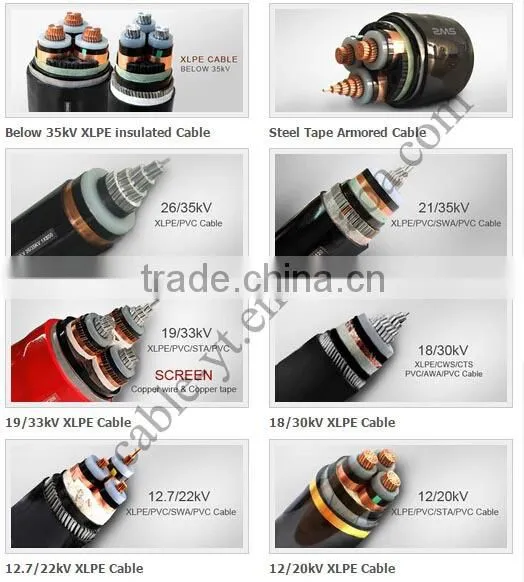

Medium VoltageXLPE Insulated Steel Tape/ Steel Wire Armored Electric Power Cable
1. Technical data for Medium Voltage XLPE Insulated Armored Electric Power Cable:
Rated voltage: 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
2. Performance Characteristics of Medium Voltage XLPE Insulated Armored Electric Power Cable:
1).The long-time working temperature of conductor of PVC insulated control cable is 70°C.
The long-time working temperature of conductor of XLPE insulated control cable is 90°C.
2).During short circuit(max permanent time is not more than 5 seconds),the max temperature
of cable conductor is not more than 160C.
3).Ambient temperature is not lower than 0 °C.
4).it's minium bending when cable is installed.
Unarmored 6D(D=overall diameter)
Armored or copper-tape screened 12D(D=overall diameter)
Shielded flexile cable 6D(D=overall diameter)
3. Types and descriptions Medium Voltage XLPE Insulated Armored Electric Power Cable:
| Armored Cable Type |
Armored Power Cable Specification |
|
| Copper Core | Aluminium Core | |
| YJV22 | YJLV22 | Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV23 | YJLV23 | Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE Sheath |
| YJV32 | YJLV32 | Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV33 | YJLV33 | Fine Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath |
| YJV42 | YJLV42 | Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV43 | YJLV43 | Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath |
4. Applications for Medium Voltage XLPE Insulated Armored Electric Power Cable:
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
5. Standards for Medium Voltage XLPE Insulated Armored Electric Power Cable:
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Quality Assurance:
With Yiteng, all cables are produced by strict inspection and testing:
1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.
2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.
3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Package and Shippment:
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receiving.
Service Commitment-Why Choose US?
Yiteng Cable’s business philosophy is and always remains “Helping Customers to Succeed”. We commit ourselves and our resources to the development of the cable industry by establishing strategic cooperation with global agents and customers.
All for Customers—More Than A Promise
Apart from supplying good quality cables, our service teams are always ready to provide expertise to customers.
Questions and Answers!
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables:
Bare Conductor: AAC, AAAC, ACAR, ACSR, etc
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
It depends on the cable production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
We hope to get in touch with you!
