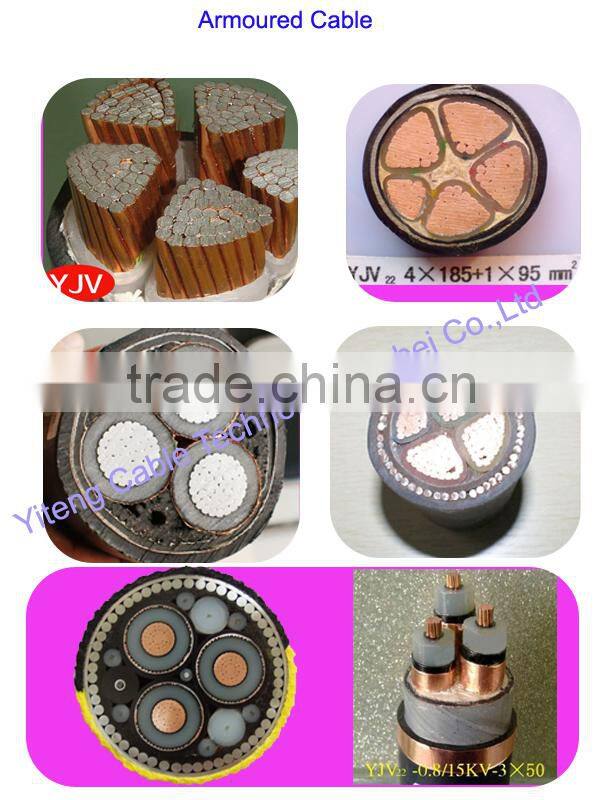

XLPE Insulation PVC Jacket Steel Armored Low Voltage Power Cable

U0/Um(kv)

1st class

0.6/1kv

1.8/3kv

3.6/6kv

6/10kv

8.7/15kv

12/20kv

18/30kv

21/35kv

No.of Core

1 Core

Section

1.5-800

25-800

25-800

25-800

35-800

50-800

50-800

50-800

area(mm2)

2 Core

Section

1.5-185

/

/

/

/

/

/

/

Area(mm2)

3 Core

1.5-400

25-400

25-400

25-400

35-400

50-400

50-400

50-400

4 Core

Section

2.5-400

25-400

/

/

/

/

/

/

Area(mm2)

Model

Name

Uses

Cores

Conductor nominal cross section mm2

YJV

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

1

1.5~800
2.5~800
10~800

YJY
YJLY

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

2

1.5~800
2.5~800
10~800

YJV22
YJLV22

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

.

3

1.5~400
2.5~400
2.5~400
10~400

YJV23

YJLV23

Copper core XLPE insulated PVC sheathed

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

4

1.5~400
2.5~400
2.5~400
10~400

YJV32
YJLV32

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

3+1

1.5~400
4.0~400
4.0~400
10~400

YJV33
YJLV33

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

4+1

+ 1.5~400
4.0~400
4.0~400
10~400

Type

Description

Main Application

Cu core

Al core

(ZR)YJV

(ZR)YJLV

(Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable.

For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid.

(ZR)YJV22

(ZR)YJLV22

(Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable.

For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force.

(ZR)YJY23

(ZR)YJLV23

(ZR)YJLV32

(ZR)YJLV32

(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable

For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force.

(ZR)YJLV42

(ZR)YJLV42

(Flame retardant) Cu, Al core XLPE insulated, thick steel wire armored, PVC or PE sheathed power cable

For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.

or

or

(ZR)YJLV43

(ZR)YJLV43
