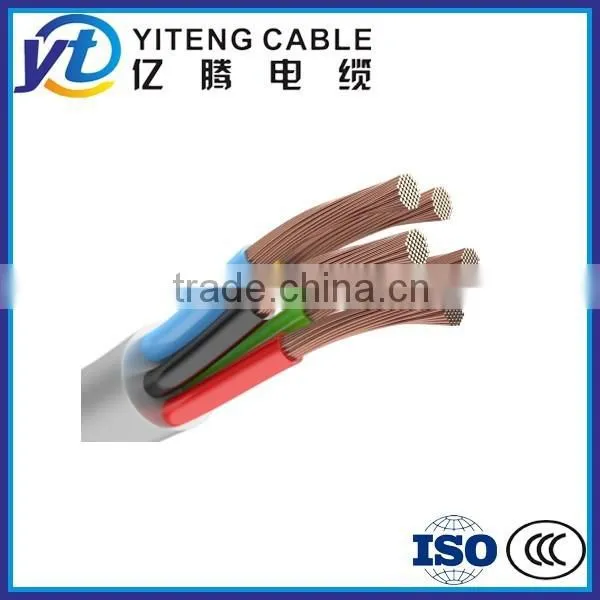

UL standard high temperature house wiring electrical cable and wire
Application
Used in electronics, instruments and electronic equipment and automatic generation device with the power cord, line and signal transmission lines, concrete can be used for anti-theft alarm system, building talkback system, instrument and meter, and monitoring control such as the installation of surveillance.
Use features
1. The rated voltage U0 / U 3.6/6 KV
2. Cable conductor long-term work for 90 ° C temperature of cable
3. The smallest bending radius is six times the diameter of cable
4. Cable shall not be in the sunlight long exposure to
5. The bottom line of cable core must good grounding
The main technical performance
1. Finished cable should undergo industrial frequency voltage power lines for the core 11.0 kv5min
2. Transition resistance shield or surveillance of the layer of interim resistance should not more than 3 k Ω.
3. Burning experiment: cable should undergo GB12666.2 DZ-1 the provisions of burning experiment 4. Partial discharge experiment: 1.5 U0 put power not more than 20 PC
5. Medium dissipation factor test: U0 no greater than 0.035. When
6. Impulse voltage 95 ° C, test: 60 KV are aligned character after the 10 times of cable style, with 11 KV voltage, frequency processing 15 min
7. Cable should be able to undergo 3 U. , 4 h industrial frequency voltage test
Specification of Wire Cable Conductor:
Wire No. |
Standard Section |
Conductor Number/Wire Diameter |
Conductor Diameter |
BVR0005 |
0.5mm2 |
7/0.3mm |
0.9mm |
BVR00075 |
0.75mm2 |
7/1.37mm |
1.1mm |
BVR001 |
1.0mm2 |
7/0.43mm |
1.3mm |
BVR0015 |
1.5mm2 |
19/0.32mm |
1.6mm |
Insulation Part
Wire No. |
Normal thickness |
Normal Outside Diameter |
Max Diameter |
Withstand Voltage |
Weight |
BVR005 |
0.6mm |
2.12mm |
2.6mm |
2000v |
3.5Kg/Km |
BVR00075 |
0.6mm |
2.33mm |
2.8mm |
2500v |
11.13Kg/Km |
BVR001 |
0.6mm |
2.5mm |
3.0mm |
2500v |
14.1Kg/Km |
BVR0015 |
0.7mm |
3mm |
3.5mm |
2500v |
20.9Kg/Km |
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there? A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
