Yiteng Cable Technology Hebei Co., Ltd.: Shijiazhuang, Hebei, China; Main products: Shielded Cable, Rubber Cable, Power Cable, Control Cable, Aluminum Alloy Cable

Home > Products > Electrical Wire > Central Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wire

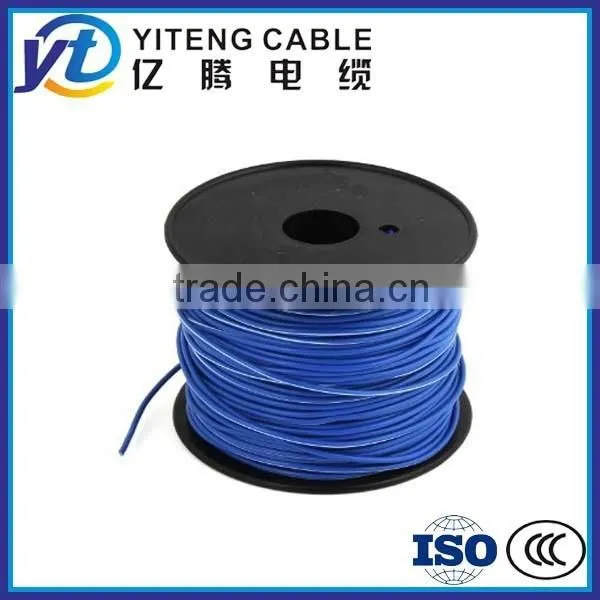

Central Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wire

FOB Price

USD $0.5 - $25 / Meter

500 Meters(Min.Order)

Supply Ability 10000 Meter / Meters per Month
Port Tianjin port or any port in China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	yiteng
Model Number	BVV	Insulation Material	Other, pvc,xlpe,rubber or other
Type	Low Voltage	Application	Construction
Conductor Material	Copper	Jacket	PVC

Product Description

Central Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wire

Main advantage

ISO9001

Factory

OEM

SGS

Product Description

Standard:

According to GB/T5023, equivalent to IEC60227.

It can also be made complying with ASTM, BS, DIN standards.

Besides, we can design and manufacture the products to the buyer's requirements.

Specification

Type	H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR
Voltage Rate	300/500V, 450/750V
Range of Nominal cross section:	0.75 mm² ~ 630 mm²
Application	These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Standard	IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734
Constructions	Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request
Max. Operating Temperature	70°C, can be 90°C,105°C as per requirement
Packing	100 meter/roll or as per requirement
Production Capacity	100 kilometer/ day
Delivery time	10~15 working days
Remark	The cable can be of flame retardance, fire resistance and other property

H07V-R, H07V-U, 60227IEC01 (BV BLV (BV-90)450/750V)

Nominal section (mm²)	Number/diameter of core (mm)	Maximum outer diameter (mm²)	Reference weight (Kg/km)		Conductor resistance at 20°C ≤(Ω/km)
Nominal section (mm²)	Number/diameter of core (mm)	Maximum outer diameter (mm²)	copper	aluminum	aluminum	copper
1.5(A)	1/1.38	3.3	20.3	-----	-----	12.1
1.5(B)	7/0.52	3.5	21.6	-----	-----	12.1
2.5(A)	1/1.78	3.9	31.6	17	11.80	7.41
2.5(B)	7/0.68	4.2	34.8	-----	-----	7.41
4(A)	1/2.25	4.4	47.1	22	7.39	4.61
4(B)	7/0.85	4.8	50.3	------	-----	4.61
6(A)	1/2.76	4.9	65	29	4.91	3.08
6(B)	7/1.04	5.4	71.2	----	----	3.08
10	7/1.35	7.0	119	62	3.08	1.83
16	7/1.70	8.0	179	78	1.91	1.15
25	7/2.04	10.0	281	118	1.20	0.727
35	7/2.52	11.5	381	156	0.868	0.524
50	19/1.78	13.0	521	215	0.641	0.387
70	19/2.14	15.0	734	282	0.443	0.268
95	19/2.52	17.5	962	385	0.320	0.193
120	37/2.03	19.0	1180	431	0.253	0.153
150	37/2.25	21.0	1470	539	0.206	0.124
185	37/2.52	23.5	1810	666	0.164	0.0991
240	61/2.25	26.5	2350	857	0.125	0.0754
