1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical wire and cable PVC Insulated Electric Wire1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical wire and cable PVC Insulated Electric Wire1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical wire and cable PVC Insulated Electric Wire1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical wire and cable PVC Insulated Electric Wire1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical wire and cable PVC Insulated Electric Wire
Electric Wire Cable.
This power wire is used to transmit power on the power transmission and distribution line of A.C.50Hz, rated voltage 35 kv or lower.
In comparison with PVC insulation cable, it boasts not only excellent electric character, mechanical character, heat and
aging-resistant character, environmental stress-resistant character and chemical corrosion-resistant character, but simple structure,
light weight, no restriction by laying drop, and high temperature allowance for long-term working as well.
Electric wire cable:
Specifications of PVC insulation power cable with cu and Al conductor.
1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
1.Application for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
Electrical Wire soft BV electrical wire pvc BV electrical wire called the copper core PVC insulated wires, wires for electrical circuit in a multi BV, BVV, BVR, general use of single core hard conductor cable sheath,
Suitable for AC voltage 450/750V and below the power device, household electrical appliances, instrumentation and telecommunications equipment for wire and cable
2.Specifications for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable :
|
Section mm2 |
Conductive wire core |
Insulation Thickness mm2 |
The average outer diameter mm2 |
At 20 Conductor resistance Ω / km less than |
70 , the minimum insulation resistance MΩ / km |
|
|
Root number / diameter, mm2 |
copper |
copper |
||||
1 |
1/1.13 |
0.6 |
2.8 |
18.1 |
0.011 |
13.7 |
1.5 |
1/1.38 |
0.7 |
3.3 |
12.1 |
0.011 |
20.1 |
2.5 |
1/1.78 |
0.8 |
3.9 |
7.41 |
0.01 |
32 |
4 |
1/2.25 |
0.8 |
4.4 |
4.61 |
0.0071 |
46.8 |
6 |
1/2.70 |
0.8 |
4.9 |
3.08 |
0.007 |
66.5 |
10 |
7/1.35 |
1 |
7 |
1.83 |
0.0065 |
116 |
16 |
7/1.70 |
1 |
8 |
1.15 |
0.005 |
176.5 |
25 |
7/2.14 |
1.2 |
10 |
0.727 |
0.005 |
277.7 |
35 |
7/2.52 |
1.2 |
11.5 |
0.524 |
0.004 |
375 |
50 |
19/1.78 |
1.4 |
13 |
0.384 |
0.0045 |
501.3 |
70 |
19/2.14 |
1.4 |
15 |
0.268 |
0.0035 |
706.5 |
95 |
19/2.52 |
1.6 |
17.5 |
0.193 |
0.0035 |
974.4 |
120 |
37/2.25 |
1.6 |
19 |
0.153 |
0.0032 |
1209.8 |

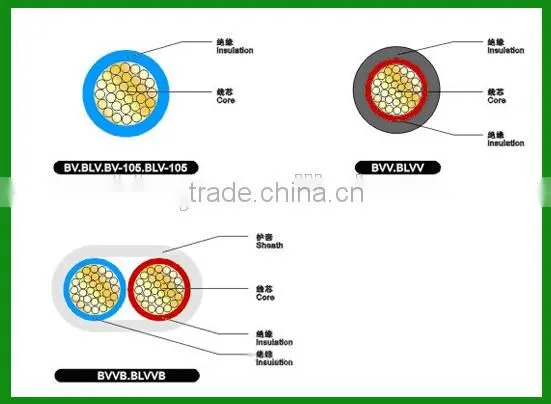

Type |
Name |
Laying place and requirement |
Long term working temperature |
227IEC01/05 |
Copper conductor PVC insulated wires |
Fixed laid indoors, conduits etc. |
70 |
Aluminum Conductor PVC insulated wires | |||
227IEC07 |
Heat resistant copper conductor PVC insulated wires at 90 |
Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. |
70 |

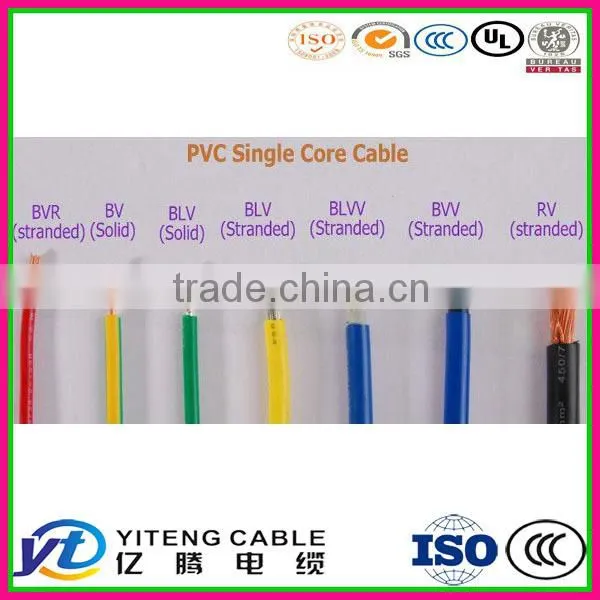

BVR |
Copper conductor PVC insulated flexible wire |
Be for laying permanent place where flexible required |
70 |
227IEC10 |
Copper conductor PVC insulated PVC sheathed round wires |
Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground. |
70 |
BLVV |
Aluminum conductor PVC insulated PVC sheathed round wires |
||
BVVB |
Copper conductor PVC insulated PVC sheathed flat wires |
||
BLVVB |
Aluminum conductor PVC insulated sheathed flat wires |
||
227IEC02RV |
Copper conductor PVC insulated flexible connector |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required. |
70 |
227IECC42 |
Copper conductor PVC insulated flat flexible connector |
||
RVS |
Copper conductor PVC insulated flexible twisting connector wire |
||
227IEC52 |
Copper conductor PVC insulated PVC sheathed round flexible connector (light and common type) |
3.Standard for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
Electrical Wire soft BV electrical wire pvc BV electrical wire implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition,
we can design and manufacture the products as the requirements of customers.
4.Features for 1.5mm 2.5mm 4mm 6mm 10mm house wiring electrical cable
1. With acid and alkali resistance
2. Oil resistance
3. Moisture-proof
4. Anti-mildew properties
Welcome to our factory! Hope to get in touch with you!
| Factory Name | Yiteng Cable Technology HebeiCo.,Ltd |
| Location | Ningjin Town, Shijiazhuang, Hebei, China |
| Establishes in | 1994, 20 years' experience of producing kinds of cables |
| Export Office Location | Area1 Donghai Building, Shijiazhuang, Hebei, China |
| Our Main Cables Products |
Low Voltage Power Cable and Medium Voltage Power Cable with or without Armor(Armor Type:Steel Tape or Steel Wire) High Temperature Cable,Silicone Rubber Insulated Cable, Teflon Insulated Cable Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Aluminum Alloy Cable with/ without Armor and Interlock Shielded/ Screened Control Cable Computer Shielded Cable Flexible Rubber Cable Electrical Wires |
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
7. Package
Standard Export Wooden or Steel Drums or as per Customer's Requirement
8. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products
