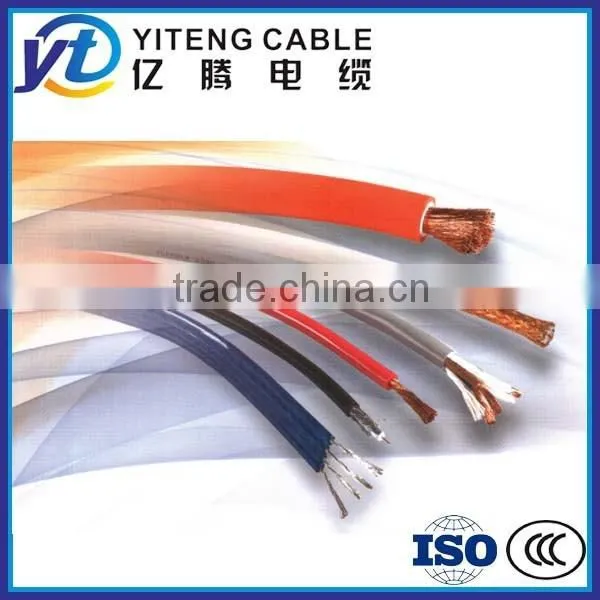

Floor Heating Cable, Hook Up Wire , Flat Wire

Name: Floor Heating Cable, Hook Up Wire , Flat Wire
Brand: yiteng
SKU: 113013169
Availability: InStock

US$ 0.5 - 25 MOQ: 500 Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

yiteng

Insulation Material:

Other, pvc,xlpe

Yiteng Cable Technology Hebei Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name yiteng

Insulation Material Other, pvc,xlpe

Type Other, low voltage ,medium voltage

Application Construction

Conductor Material Other, Aluminium ,copper

Jacket Other, pvc,xlpe or other

Floor Heating Cable, Hook Up Wire , flat wire

Advantage

Main advantage

ISO9001

Factory

OEM

SGS

Product Description

Standard:

According to GB/T5023, equivalent to IEC60227.

It can also be made complying with ASTM, BS, DIN standards.

Besides, we can design and manufacture the products to the buyer's requirements.

Specification

Type	H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR
Voltage Rate	300/500V, 450/750V
Range of Nominal cross section:	0.75 mm² ~ 630 mm²
Application	These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Standard	IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734
Constructions	Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request
Max. Operating Temperature	70°C, can be 90°C,105°C as per requirement
Packing	100 meter/roll or as per requirement
Production Capacity	100 kilometer/ day
Delivery time	10~15 working days
Remark	The cable can be of flame retardance, fire resistance and other property

H07V-R, H07V-U, 60227IEC01 (BV BLV (BV-90)450/750V)

Nominal section (mm²)	Number/diameter of core (mm)	Maximum outer diameter (mm²)	Reference weight (Kg/km)		Conductor resistance at 20°C ≤(Ω/km)
Nominal section (mm²)	Number/diameter of core (mm)	Maximum outer diameter (mm²)	copper	aluminum	aluminum	copper
1.5(A)	1/1.38	3.3	20.3	-----	-----	12.1
1.5(B)	7/0.52	3.5	21.6	-----	-----	12.1
2.5(A)	1/1.78	3.9	31.6	17	11.80	7.41
2.5(B)	7/0.68	4.2	34.8	-----	-----	7.41
4(A)	1/2.25	4.4	47.1	22	7.39	4.61
4(B)	7/0.85	4.8	50.3	------	-----	4.61
6(A)	1/2.76	4.9	65	29	4.91	3.08
6(B)	7/1.04	5.4	71.2	----	----	3.08
10	7/1.35	7.0	119	62	3.08	1.83
16	7/1.70	8.0	179	78	1.91	1.15
25	7/2.04	10.0	281	118	1.20	0.727
35	7/2.52	11.5	381	156	0.868	0.524
50	19/1.78	13.0	521	215	0.641	0.387
70	19/2.14	15.0	734	282	0.443	0.268
95	19/2.52	17.5	962	385	0.320	0.193
120	37/2.03	19.0	1180	431	0.253	0.153
150	37/2.25	21.0	1470	539	0.206	0.124
185	37/2.52	23.5	1810	666	0.164	0.0991
240	61/2.25	26.5	2350	857	0.125	0.0754

Factory Information

Welcome to our factory! Hope to get in touch with you!

Factory Name	Yiteng Cable Technology HebeiCo.,Ltd
Location	Ningjin Town, Shijiazhuang, Hebei, China
Establishes in	1994, 20 years' experience of producing kinds of cables
Export Office Location	Area1 Donghai Building, Shijiazhuang, Hebei, China
Our Main Cables Products	Low Voltage Power Cable and Medium Voltage Power Cable with or without Armor(Armor Type:Steel Tape or Steel Wire) High Temperature Cable,Silicone Rubber Insulated Cable, Teflon Insulated Cable Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Aluminum Alloy Cable with/ without Armor and Interlock Shielded/ Screened Control Cable Computer Shielded Cable Flexible Rubber Cable Electrical Wires
