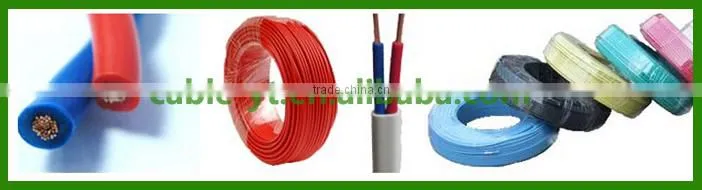

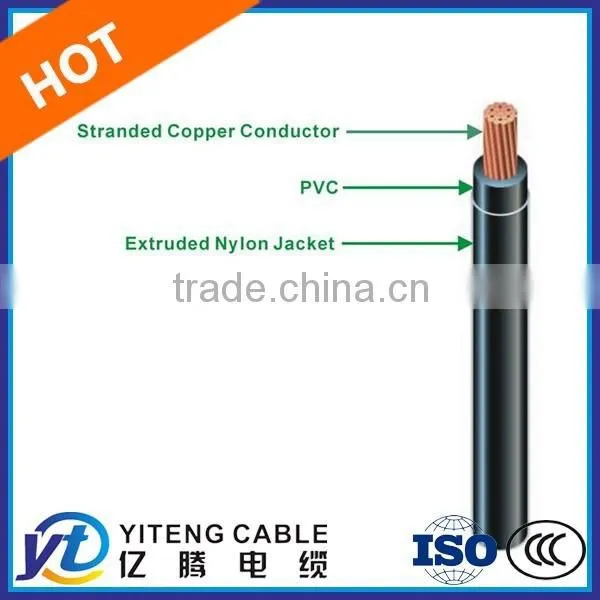

THHN TFFN THW THWN 18/16/14/12/10/8AWG Copper Wire PVC Insulation Nylon Jacket UL Standard
Specifications
PVC Insulated Electrical Aluminium/Aluminium BLV BV wire
1. 450/750V PVC Wire
2. Nylon Jacket
3. ISO9001, ISO14001, CCC Certification
4. Types: THHN TFFN THW THWN 18/16/14/12/10/8AWG Electrical Cable & Wire
THHN TFFN THW THWN 18/16/14/12/10/8AWG electrical wire are used for general purpose, as building wire for power, lighting and control.wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
1.U0/U 300/500V,450/750V
2.Standard applied: IEC 60227 , BS 6004, VDE0281, JB/T8734
3.Insulation:PVC
4.Cores:1 core
5.Conductor: Class 1 Plain annealed Aluminum
6. Sheath:Without Sheath
7.Cross section area:0.75~630mm2
8. 100 meters per roll or as per request
9.Color: Black or as per requirement
10.Max. working temperature: 70 °C , can be 90 °C ,105 °C and 125 °C as per requirement
11.Flame retardant or Fire resistance or low smoking and Halogen free or other property can be avaliable
12. Certification : ISO9001/ISO14001 /OHSAS18001/CCC
13.OEM can be available
14.Types and Descriptions for Types of Electrical Wire
Type |
Name |
Laying place and requirement |
Crated voltage |
Nominal Section (mm2 |
227IEC01(BV) |
Copper conductor PVC insulated wires
Aluminum conductor PVC insulated wires |
Fixed laid indoors Conduit etc. |
450/750
300/500
450/750 |
1.5...185
|
227IEC05 (BV) |
0.5...1
|
|||
BLV |
2.5...185
|
|||
227IEC07(BV-90) |
Heat resistant copper conductor PVC insulated wire at 90 0C |
Mainly be laid at the places of high temperature environment and can be laid indoors, conduits. |
300/500 |
0.5...2.5 |
BVR |
Copper conductor PVC insulated flexible cable |
Be for laying permanent place where flexible required. |
450/750 |
2.5...150 |
|
BLVV |
Aluminum conductor PVC insulated PVC sheathed round wires |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
|
|
BVVB |
Copper conductor PVC insulated PVC sheathed flat wires |
300/500 |
1...10 |
|
BLVVB |
Aluminum conductor PVC insulated PVC sheathed flat wires |
300/500 |
2.5...10 |
|
|
227IEC02(RV)
227IEC06(RV) |
Copper conductor PVC insulated flexible connector wire |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
450/750
300/500 |
1.5...240
0.3...1 |
227IEC42(RVB) |
Copper conductor PVC insulated flat flexible connector wire |
300/300 |
0.3...1.5 |
|
|
RVS
|
Copper conductor PVC insulated flexible twisting connector wire |
300/300 |
0.3...1.5 |
|
|
227IEC52(RVV)
227IEC53(RVV) |
Copper conductor PVC insulated PVC sheathed round flexible connector wire |
300/300
300/500 |
0.5...6
0.3...4 |
|
|
227IEC08(RV-90)
|
Cu conductor heat resistant PVC insulated flexible connector wire at 90 0C |
Mainly used at the places where heat resistance is required |
300/500 |
0.5...2.5 |
With Yiteng Cable, for the THHN TFFN THW THWN 18/16/14/12/10/8AWG Electrical Wires,
Packing:
1. Packing Length:100m/roll, 200m/roll, 305m/roll, 500m/roll
2. Inner packing: Transparent Shirnk Film, Easy pull box, Wooden reel, plastic reel
3. Outer packing: Carton box, pallet available
4. Other packing available according to client's request.
Shipping:
Normally immediate shipment is available for regular items, custom-made production lead time is 15-20 days.
Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
| Welcome Your Visit! Hope to Get in Touch with You! | |
| Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
| Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
| Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
| Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
|
Cable Products Type |
Electrical Wires |
| Customized Cables per Requirement | |
| Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
| Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
| Aluminum Alloy Cable with/ without Armor and Interlock | |
| Shielded/ Screened Control Cable | |
| Computer Shielded Cable | |
| Flexible Rubber Cable | |
|
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
| High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
| Fire Resistant/ Flame Retardant Power Cable | |
| Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
