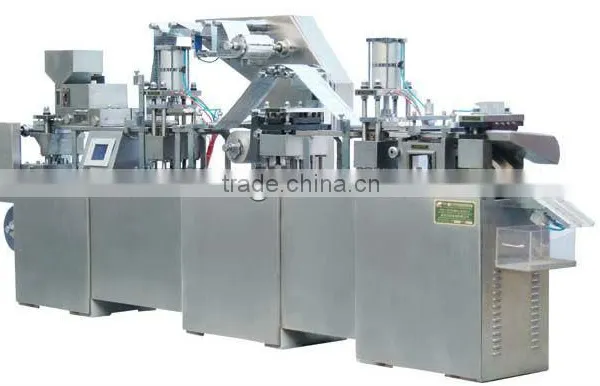

DPP160F/250F Tropical AL/Plastic/AL Blister Packing Machine

DPP160F/250F Tropical AL/Plastic/AL Blister Packing Machine thumbnail-1
DPP160F/250F Tropical AL/Plastic/AL Blister Packing Machine photo-1
US$ 1 - 11,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
sunhang
Model Number:
DPP160F/250F
Contact Supplier Request Quote Chat Now
Shanghai Sunhang Pharmaceutical Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name sunhang
Model Number DPP160F/250F
Dimension(L*W*H) 3900x850x1900 mm
Weight 1800KGS
Certification GMP
Condition New

Specifications

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

DPP160F/250F Tropical AL/Plastic/AL Blister Packing Machine



Performance and Characteristics:

Adopting Man-machine Interface PLC Control System made by Germany Siemens Co.

Having the functions of fiber-optical no tablet(granule) checking and automatic waste plate rejecting.

Variable frequency speed regulating, separated-type combined body.

Equipped with cursor picture register sets so as to improve the product grade.

This machine can carry out Al-plastic, Al-Al and Al packing multaneously, thus achieving the aim of tri-use in one machine.

Multi-layer Composite Packing with Good Tightness Performance, high-intensity Photopathy, Damp Proof, Fake Proof and Heat Proof Function.

High Collocation, High Performance, Perfect Packing Effect.

Main Technical Specifications:

Punching Frequency: 15-25times/min

Punching Plate: 2plates/time; 4plates/times

Stroke Adjustable of Travel:

Specifications of Packing Material:

Medical PVC: 160x0.25(0.15-0.5)mm; 250x0.25(0.15-0.5)mm (DPP250F)

Formed AL Foil: 160x0.12(0.10-0.18)mm; 250x0.12(0.10-0.18)mm

PTP: 160×0.02mm; 250×0.02mm (DPP250F)

Packing Frequency: 1800-3000plates/hour; 3600-6000plates/hour (DPP250F)

Max Forming Area and Depth: 150x110x12mm; 240x110x12 mm (DPP250F)

Total Power of Electric Source: 380V 50Hz 6KW

Air-compressor:≥0.35m3/ min  (Self-prepared)

Pressure:0.5-0.7Mpa

Overall Size: 3900x850x1900 mm

Weight: 1800kg; 2100kg (DPP250F)
