Specifications

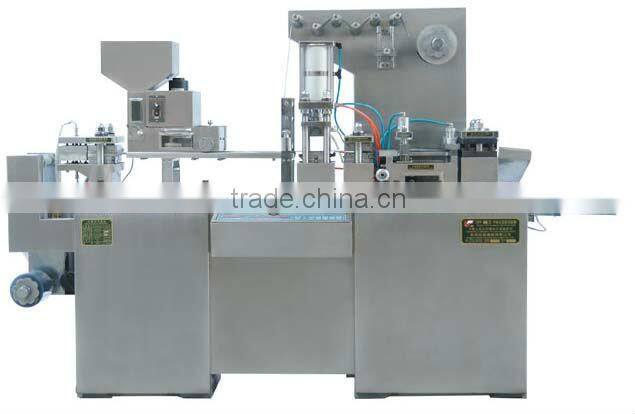

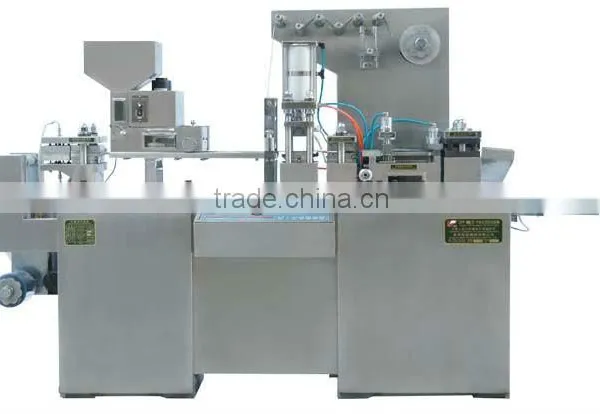

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.DPP138A Al/PL Blister Packing Machine
Performance and Characteristics:
With variable frequency speed regulating, air cushion heat-sealing, PC circuit control and adjustable travel, this machine adopts manipulator grip and is equipped with inching device with accurate synchronization and exquisite design, so it is a essential machine for producing and packing tablets, capsules and deformed objects in pharmaceutical plant.

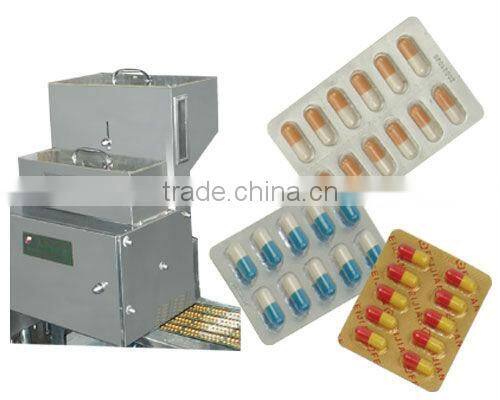

Capsule orientating device:
It adopts mechanically-drive, pneumatic control, orientate the capsule in a sequence according to different colors, with an international lead in running speed and the rate of orientation and the rate of correction reach to 99.9%.
It can manufacture according to the size of sheet that the customer required, and equip with all kinds of blister packing machine.
Main Technical Specifications:
Punching Frequency: 20-40times/min
Punching Plate: 2-3plates/time
Adjustable Scope of Travel: 30-100mm
Packing Efficiency: 2400-7200plates/hour
Max Forming Area and Depth:140×100×18mm
Specifications of Packing Material:
Medical PVC: 150×0.25(015-0.5)mm
PTP: 150×0.02mm
Total Power of Electric Source: Single-phase 220v 50Hz 4Kw
Air-compressor: ≥0.15M3/Min
Pressure:0.6MPa
Overall Size: 2200×750×1650mm
Weight: 700Kg
