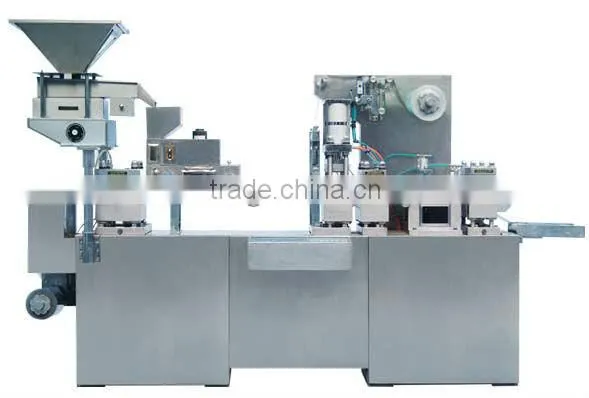

DPP250A/250D AL/PL Blister Packing Machine

Name: DPP250A/250D AL/PL Blister Packing Machine
Brand: sunhang
SKU: 112784163
Availability: InStock

DPP250A/250D AL/PL Blister Packing Machine thumbnail-1

DPP250A/250D AL/PL Blister Packing Machine photo-1

US$ 1 - 11,300 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

sunhang

Model Number:

DPP250A/250D

Contact Supplier Request Quote Chat Now

Shanghai Sunhang Pharmaceutical Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name sunhang

Model Number DPP250A/250D

Dimension(L*W*H) 2800x800x1900 mm

Weight 1500KGS

Certification GMP

Condition New

Specifications

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

DPP250A/250D AL/PL Blister Packing Machine

Performance and Characteristics:

Variable Frequency Speed Regulating PC Circuit Control Panel.

Adjustable travel adopts manipulator grip equipped with inching device, which has accurate synchronization.

Vibrating-type feeder with full-automatic blanking process.

Mould spout location is convenient for replacing mould.

With air cushion heat-sealing,the upper and lower checkers ensure the effect of heat-sealing.

Main Technical Specifications:

Punching Frequency: 20-40times/min

Punching Plate: 4plates/time

Adjustable Scope of Travel: 30-120mm

Packing Efficiency: 4800-9600plates/h

Max Forming Area and Depth245x112x18mm

Total Power of Electric Source: Three-Phase Four-Wires, 380V 50Hz 5.5Kw

Medical PVC: 250x0.25(0.15-0.5)mm

PTP: 250x0.02mm

Air-compressor: ≥0.22m3/min

Pressure: 0.5-0.7Mpa

Overall Size: 2800x800x1900mm

Weight: 1500kg

DPP250A

The performance and characteristic are the same as DPP-250A.The upgraded product is equipped with German Siemens, PLC data processing center, temperature expansion module, man-machine interface control and cursor register sets. Being high-grade, it is the replacing product for pharmaceutical plant.

The main technical parameters are the same as 250A.
