Specifications
This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

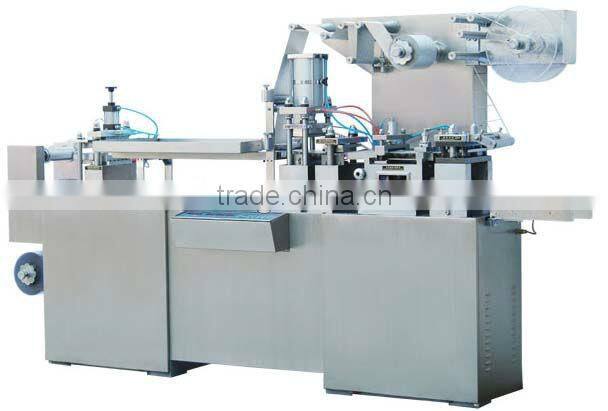

DPP160G/250G Big Honey Pill Blister Packing Machine
Performance and Characteristics:
Variable Frequency Speed Regulating
Cylinder Heat-sealing
PC Circuit Control
Special Forming Device
Waste Automatic Recovery Device
Suitable Automatic Recovery Device
Main Technical Specifications:
Punching Frequency: 15-30times/min
Punching Plate: 1plates/time;3plates/time (DPP250G)
Adjustable Scope of Travel: 30-160mm
Packing Efficiency: 900-1800plates/h; 2700-5400plates/h (DPP250G)
Max Forming Area and Depth:150x150x30mm; 240×150×30mm (DPP250G)
Specifications of Packing Material:
Medical PVC: 160x0.35(0.2-0.5)mm; 250x0.35(0.25-0.5)mm (DPP250G)
PTP: 160x0.02mm 250×0.02 mm (DPP250G)
Air-compressor:≥0.22m3/ min; ≥0.22m3/ min(DPP250G)
Pressure:0.5-0.7Mpa
Overall Size: 2800x800x1900 mm; 2800x800x1900mm(DPP250G)
Total Power of Electric Source: 380V 50Hz 5KW; 380V 50Hz 5KW (DPP250G)
Weight: 1200kg; 1500kg(DPP250G)
Send Inquiry to This Supplier
