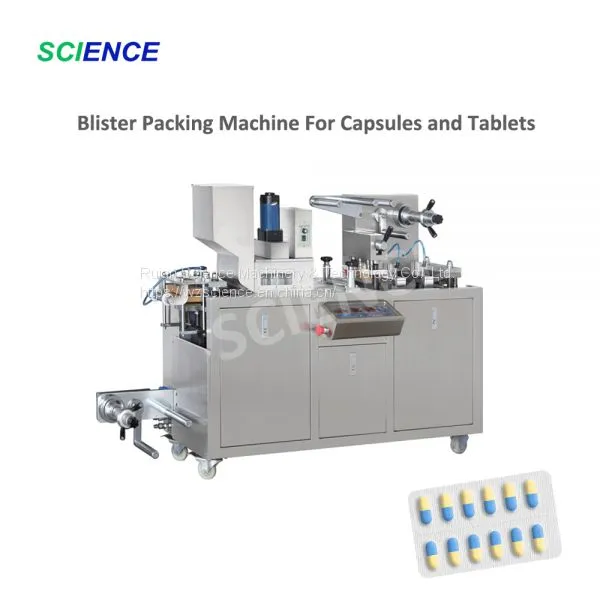

Small Blister Packing Machine

Name: Small Blister Packing Machine
Brand: SCIENCE
SKU: 161144401
Availability: InStock

Small Blister Packing Machine thumbnail-1

Small Blister Packing Machine thumbnail-2

Small Blister Packing Machine thumbnail-3

Small Blister Packing Machine thumbnail-4

Small Blister Packing Machine thumbnail-5

US$ 4500 - 5500 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

SCIENCE

Place of Origin:

China

Model Number:

DPB-80

Contact Supplier Request Quote Chat Now

Ruian Science Machinery & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name SCIENCE

Place of Origin China

Model Number DPB-80

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight 450KG

Dimension(L*W*H) 1500x600x1200mm

Voltage 380V/220V

Power 3000W

Application Chemical, Food, Machinery & Hardware, Medical

Condition New

Automatic Grade Automatic

Driven Type Mechanical

Features

1. Using the newest type of power transmission mechanism, driven by the main drive shaft row chain, eliminating errors and other gear noise.

2. Imported electrical control system, can according to customer requirements, configuration, lack of material means and lack of grain fill leak detection device removed.

3. Sub-machine uses a combination of: PVC forming, feeding, sealing a section of tropical aluminum cold forming, heat sealing, punching a section of the packaging can be split.

4. Using photoelectric control systems, PVC, PTP, hard aluminum packaging automatic feeding, automatic punching waste edge device to ensure ultra-long-range multi-bit synchronous stability.

5. Can be corrected photoelectric detection device comes with imported stepper motor traction, graphic printing on packaging, optimized packaging grades.

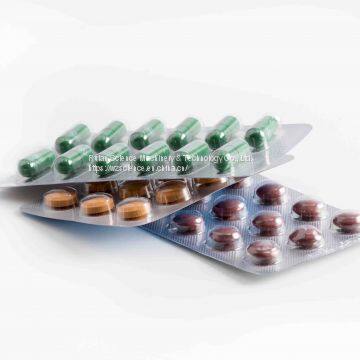

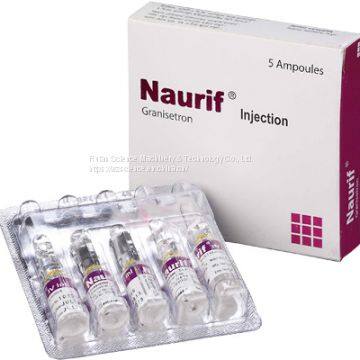

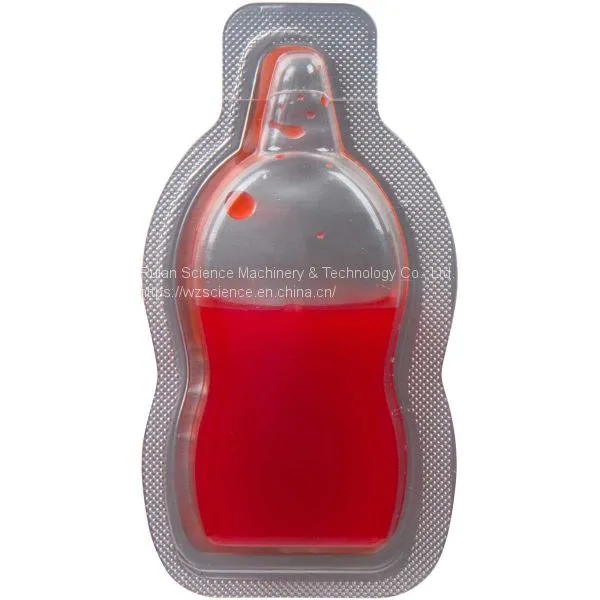

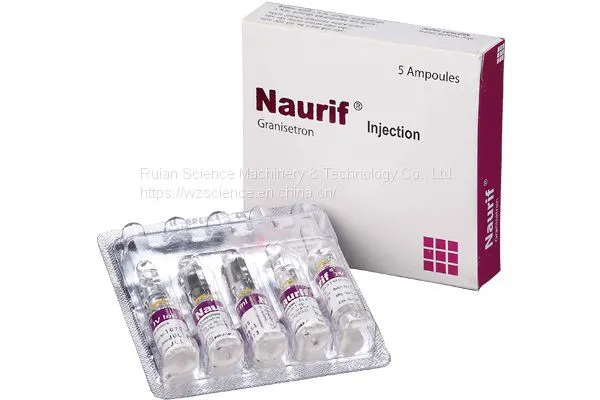

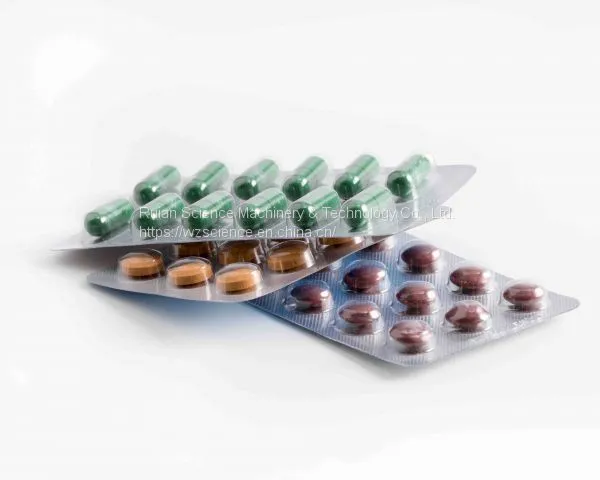

6. The machine is suitable for: capsules, tablets, injections, and medical devices and other special-shaped, lightweight food, electronic components sealed blister pack.

Technical Parameters:

Model	DPB-80
Punch Frequency	10-35 (times/min)
Production Capacity	2400 edition/hour
Max. Formed area and Depth	7011026（mm）
Travel Range	20-80mm( adjustable )
Standard Plate	80*57mm ( adjustable )
Air Pressure	0.6-0.8（M）
Total Power	380V/220V 50Hz 3.0Kw
Main Motor Power	0.75Kw
PVC Hard Pieces	0.15-0.5*80 (mm)
PTP Aluminum Foil	0.02-0.035*80 (mm)
Dialysis Paper	50-100g*80（mm）
Mold cooling	Tap water or recycled water
Overall Dimensions	15006001200 (mm)
Weight	450（Kg）
Noise target
