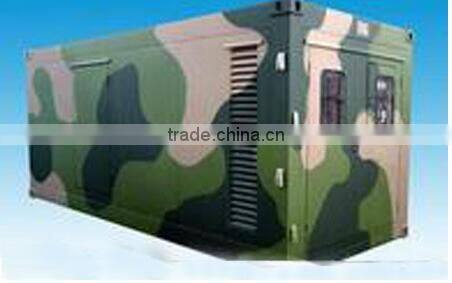

350-630kW Series Shelter Genset Gensets diesel generator
Parameter
350-630kW Series Shelter Diesel Generating Sets
| Set model | Rated power (kW) | Rated voltage (V) | Fuel consumption at rated load (L/h) | Weichai M26 series diesel engine | Excitation mode | |||||
| Engine model | Rated power (kW) | Rated speed (r/min) | No. of cylinders | Bore×Stroke | Cooling method | |||||
| WD481/7 | 350 | 400/230 | 81.5 | 6M26 | 388 | 1500 | 6 | 150×150 | Close water cooling | Brushless |
| WD687.5/7 | 500 | 400/230 | 116.0 | 12M26 | 680 | 1500 | 12V | 150×150 | Close water cooling | Brushless |
| WD756/7 | 550 | 400/230 | 127.6 | 12M26 | 680 | 1500 | 12V | 150×150 | Close water cooling | Brushless |
| WD825/7 | 600 | 400/230 | 139.2 | 12M26 | 680 | 1500 | 12V | 150×150 | Close water cooling | Brushless |
| WD866/7 | 630 | 400/230 | 150.0 | 12M26 | 680 | 1500 | 12V | 150×150 | Close water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Features
2 It adopts the same specifications and interfaces as standard containers. Thus, it can be directly connected to container, which makes it easy for transportation and move.
3 It can work under very tough conditions with temperatures ranging from -40℃ to +55℃.
4 Standard configuration includes fuel tank and storage battery, etc. With high-strength chassis, it can work smoothly on flat surface and can be easily moved.
Introduction
350-630kW Series shelter Genset adopts M26 series diesel engines produced by France-based Baudouin wholly owned by Weichai Group as its power source, and equipped with brand name generators and high-performance control system. It has advantages of humanistic design, compact structure, stable performance, good appearance, high reliability, long durability, low fuel consumption, eco-friendliness, easy maintenance, good environmental adaptability, damp proof and rainproof, corrosion resistant, low noise, and easy moved. It is widely used in military facilities, post and telecommunications, mines, and public utilities. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
