High Precision Diameter Measurement Gauge

Specifications

Diameter measurement gauge is the high-accuracy survey installment that uses the laserscan to carry on Non-contact the on-line measure.
Mainly used in a variety of wires, cables, pipe production line, the measurement of outer diameter and adjust the extruder screw speed or traction speed, to control the purpose of OD. Can also be applied to the outer diameter of workpiece and size measurements.

Model     Measuring range   Differentiation           Accuracy
LDM-25     0.1-25mm           0.001         ±0.02%×(Reading)±0.001mm
LDM-50     0.2-50mm           0.001         ±0.02%×(Reading)±0.002mm

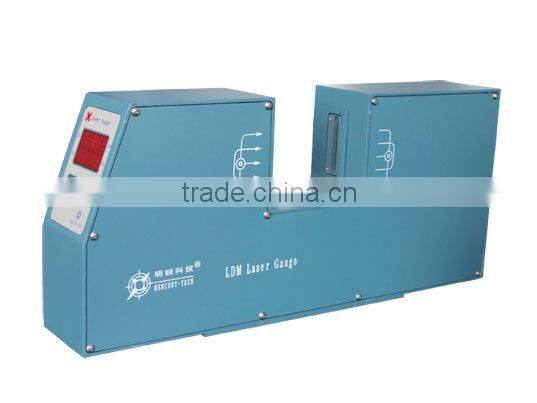

diameter measurement gauge

The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15%    50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30WExternal dimensions:
Dimensions: LDM-25/LDM-50 Measuring head: 461mm×80mm×200mm

The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic

feedback control to control the tolerance, improve product quality, reducing

consumption.

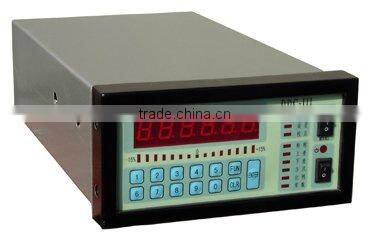

Remote Display Controller     (Model:DDC-3 DDC-5)
1. It be used to remote display and control.
2. Applicable to DC motors, VVVF motor.
3.The controller can control the speed of extruder or the tractor according to

the diameter tolerance.
Signal distance: More than 500m

Output voltage: ±10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions:164mm×85mm×280mm (Model:DDC-3)
                                 100mm×100mm×120mm (Model:DDC-5)
Installation hole size: 152mm×76mm   (Model:DDC-3)
                                    90mm×90mm    (Model:DDC-5)

 Remote Display Controller (Model:DDC-5)

 Remote Display Controller (Model:DDC-3)
