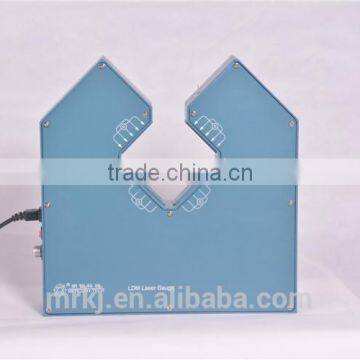

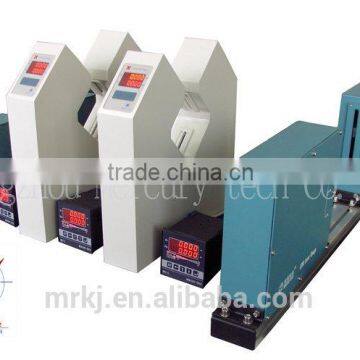

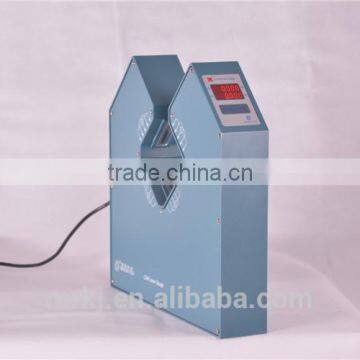

Intelligent cable diameter controller is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.
2. Technical parameters
Model Measuring Range Differentiation Accuracy
LDM-25XY 0.1-25mm 0.001 ±0.02%×(Reading)±0.001mm
3. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
Measuring head: 372mm×360mm×60mm
4. The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.

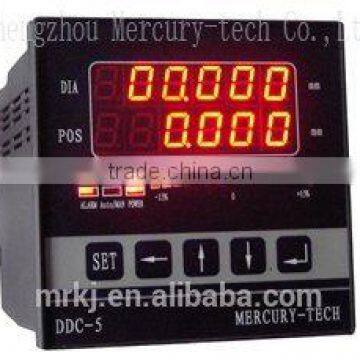

3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
