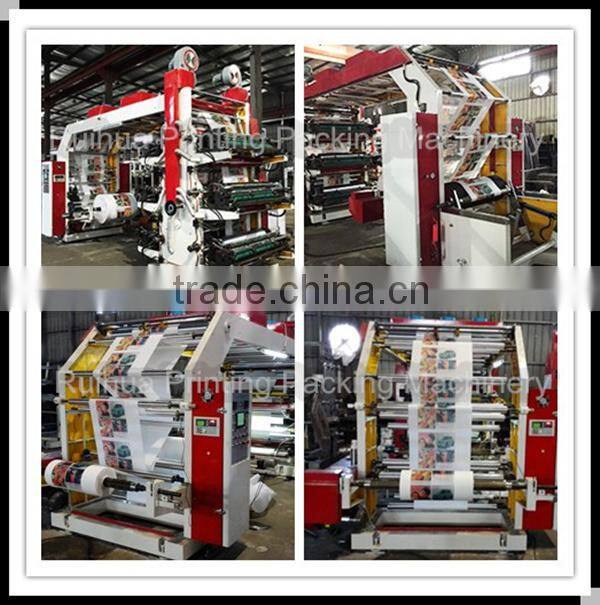

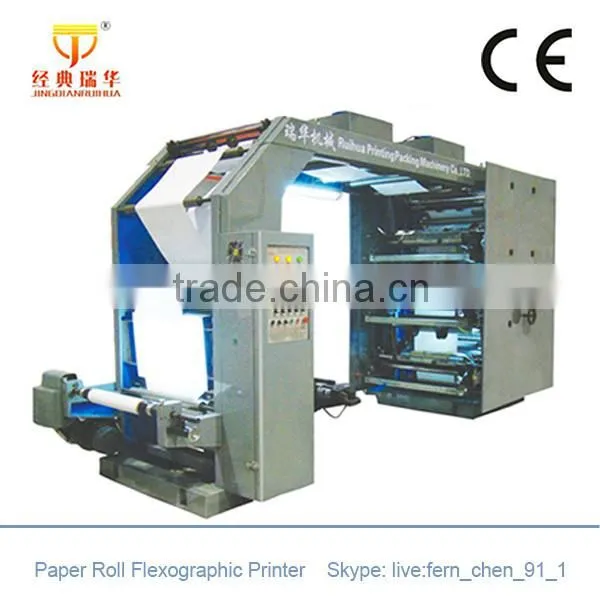

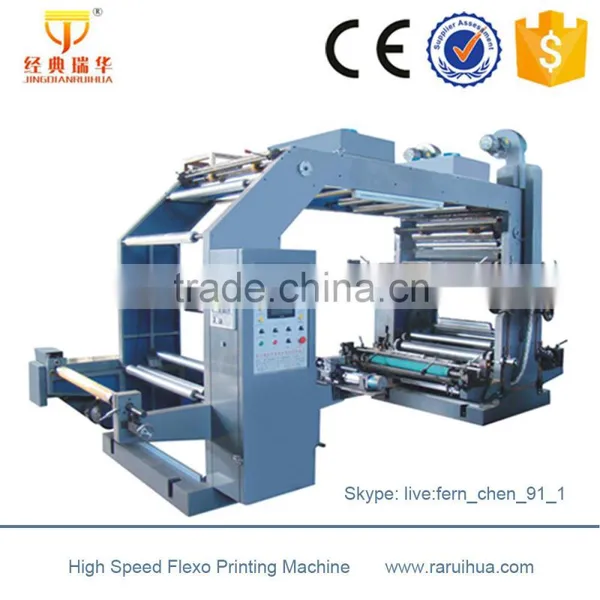

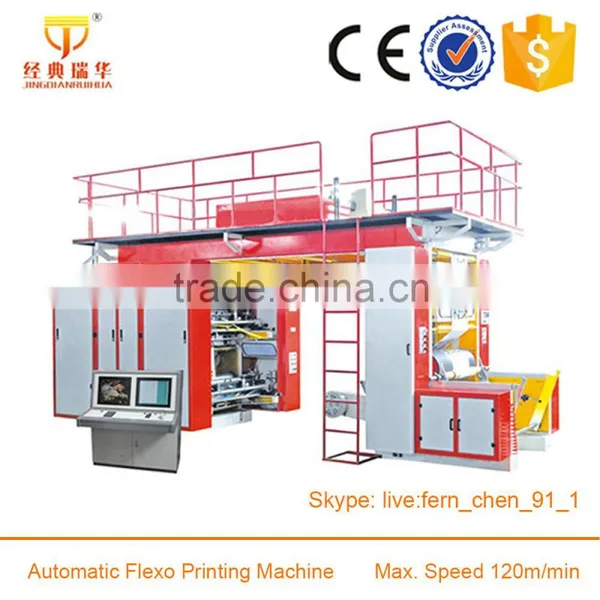

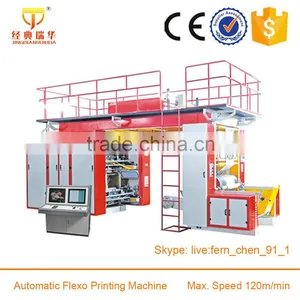

Letterpress Plate Type Multicolor Color Four Colours High Speed Flexo Printer

Main Technical Parameter

Max. Roll Width

600mm

Max. Printing Width

560mm

Printing Length

191-1000mm

Printing Colors

4 colors

Printing Plate Lifting System

Hydraulic press control

Max. Mechanical Speed

80m/min

Max. Printing Speed

70m/min

Anilox Roller

Ceramic Roller

Dimension

4000m×1600×2400mm

Specifications

      Letterpress Plate Type Multicolor Color Four Colours High Speed Flexo Printer is suitable for various materials roll to roll printing, like paper, film(BOPP,PET,PE,OPP), Non woven fabric, woven bags,etc.

Main

1. Letterpress Plate Type Multicolor Color Four Colours High Speed Flexo Printer is with PLC control and HMI, all working parameters can be preset and displayed on the control panel.Only need to set up data on the control panel, machine will work automatically.

2. Machine is with automatic hydraulic lift up loading system for heavy material roll loading.

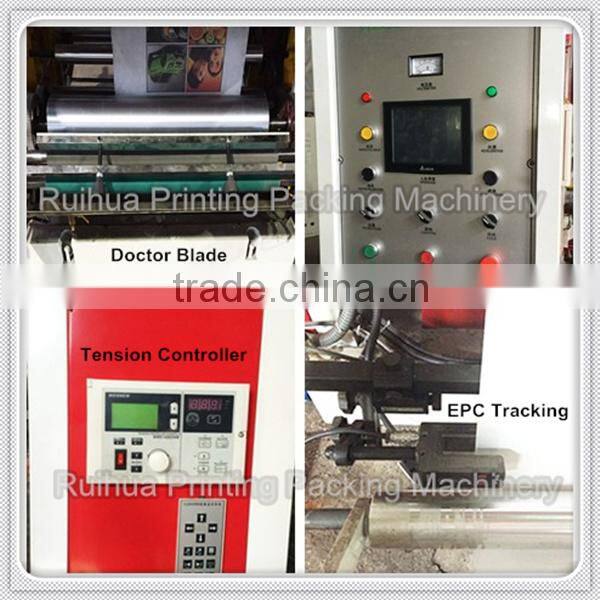

3. Letterpress Plate Type Multicolor Color Four Colours High Speed Flexo Printer is with 2 sets automatic tension controller to provide constant tension control. One for  for unwinding and one for rewinding part.

4. Machine is with 1 set 10kg/2 magnetic brake to help tension control in unwinding part.

5. Letterpress Plate Type Multicolor Color Four Colours High Speed Flexo Printer is with photocell tracking system to keep accurate roll edge.

6. Machine is with 3’’ air expanding shaft for roll material loading. Also can provide as your request.

7. Machine is with automatic meter counter, which can count the working length. When reached the preset length, machine can stop automatically.

8. Low speed and full load startup; stable running by tension control when speed up or down, low noise.
