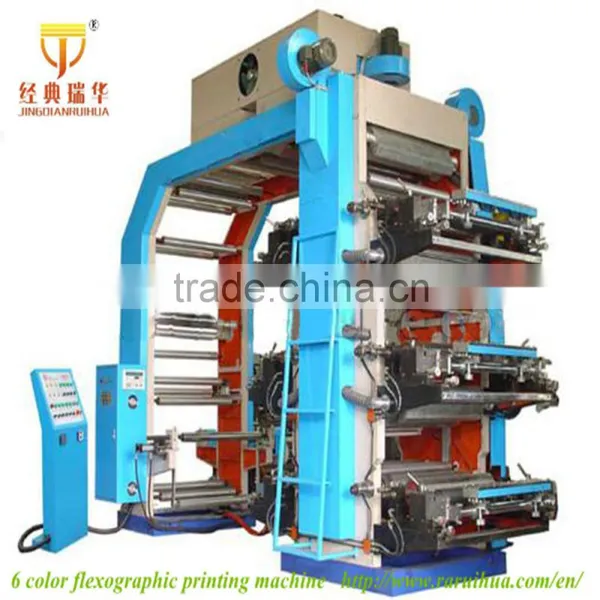

Low Price printing machine
----- With double unwind & double rewind unit
----- High Speed:30-130m/min
----- Adopts the Synchronous belt instead of gear drive
----- More quite running, more stability, higher printing precision
1)Main Parameter | |
Model |
6600mm |
Max Width of Material |
600mm |
Max.Width of Printing |
560mm |
Material |
Non-woven fabric:15-120g,Paper:15~400g/m2 Aluminium foil:30~150μm,Woven Fabric Material:15-500g/m2,PVC:15~120μm,OPP:10~100μm, BOPP:10~100μm,PE:15~150μm,NY:15~120μm, PET:15~100μm,CPP:15~100μm |
Printing color |
6 colors |
Max.Length of Printing |
200-1100mm |
Machinery mechanical speed |
10-90m/min |
Max.Speed of Material Printing |
10-70m/min |
Thickness of Plate |
2.38mm |
machine weight |
7800Kg |
machine dimension |
5.2m×2.4m×3.8m |
Power condition |
Voltage:380V,3PH,50HZ |
2)Unwind Unit | |
Max.Length of Roller |
600mm |
Max.Width of Printing |
560mm |
Max.Dia. of Unwind |
1000mm |
Type of Unwind |
auto tension with magnetic powder |
Unwinder Magnetism device |
5kg |
Auto Tension Controller Unwinder |
2—20kg |
Unwinder EPC |
Electrical Edge Correction Device |
Feeding shaft |
Air shaft |
Axis core diameter |
76mm |
3)Traction Unit | |
Constitution of Traction |
Aluminum roller, Chrome plated Roller |
Traction Zones |
6Zones |
4)Printing Unit | |
Constitution of Printing |
Anilox roller, Rubber roller, Chrome plated roller, Version roller Resin version, Scraper |
Girth of Pressing Roller |
200-1100mm |
Material of Plate |
Resin or Rubber |
Principle of Work |
Gears Drive |
Adjusting of Registe |
Manual |
Overprint Precision(mm) |
Horizontal:+-0.15mm,Vertical:+-0.2mm |
Plated-glued roller adjusting |
hydraulic type of plate-cylinder |
Anilox Roller |
Ceramic Anilox Roller:1 pcs/per color |
Rubber rollers |
1 pcs/per color |
Scraper |
Ordinary |
5)Heating and Drying Unit | |
Type of Heating and drying |
blowing first then heating |
Heating Zones |
10zones |
Power of Heating |
14kw |
Assistance of Drying Length |
2m |
Blowers |
8 Fans |
Power of Blowers |
1.5kw×2pcs 0.2kw×6pcs |
6)Electrical Parts | |
Main motor |
3.7kw |
Ink-Transfer Motor |
0.2kw |
The inverter |
4kw (An Inverter Equips With the Main Motor) |
Tension test |
2--30kg |
7)Wind Unit | |
Max Width of Material |
600mm |
Max.Dia of Wind |
1000mm |
Type of Wind |
Auto tension with magnetic powder |
Rewinder Magnetism Powder |
5kg |
Collect Reducer Motor |
1.5KW |
Auto tension controller |
2—20kg |
The receiving shaft |
Air shaft |
Axis core diameter |
76mm |
