Home > Packaging & Printing > Printing Machinery > Flexographic Printer > Printing Machine Part

Printing Machine Part

Name: Printing Machine Part
Brand: JINGDIANRUIHUA
SKU: 112365179
Availability: InStock

US$ 5,000 - 8,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Letterpress

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Ruian Ruihua Printing Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Letterpress

Place of Origin Zhejiang, China

Brand Name JINGDIANRUIHUA

Model Number GAYT-6600/6800/62000

Usage Paper Printer, Other, Paper Printer, paper pe film pp film printing machine

Automatic Grade Automatic

Voltage 380V/220V440

Gross Power 58kw

Dimensions(L*W*H) 4.8m*3.2m*2.8m

Weight 6300kg

Certification CE/SGS

After-sales Service Provided Engineers available to service machinery overseas

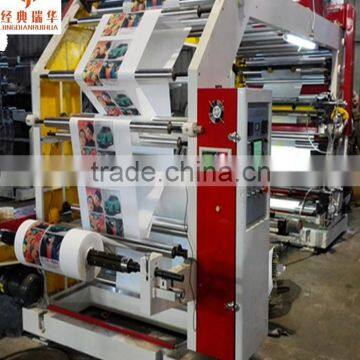

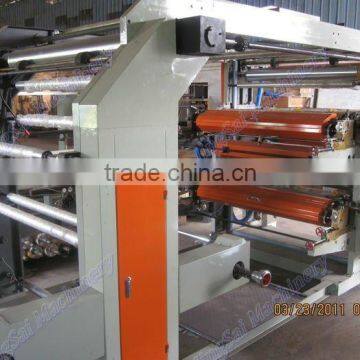

NAME: flexographic Print machine

USE:BOPP Computer control GAYT 6 colors flexo printing machinery suitable for plastic material,paper,pp woven,foil etc.

Detailed Product Description

-Main Technical Parameter:

1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased

2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering

3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)

5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices

6. Printing rolls should keep moving while machine halted

7. Material holder use air shaft

8. Auto tension control

9. Unwind with auto deviation correction system (EPC)

10. EDGE position control

11. Reversible printing 6 color press for 6+0,1+5,2+4,3+3

12.1 set of printing cylinder, size 15 inches

printing width Item	600mm	800mm	1000mm	1200mm	1400mm	1600mm	1800mm	2000mm
Printing color	6(PC:6+0,4+2,5+1,3+3)
Printing length	7.5”-40”/7.5”-50
Printing plate lifting system	Hydraulic press control
Menchanical speed	140m/min
Printing speed	80m-120/min
Anilox cylinder	Ceramic anilox roller
Register precision	Longitude:±0.20mm,Transverse±0.20mm
Rewinder/UnwinderDIA	φ600mm
Master motor	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Unwinder motor	1.1kw		1.5kw		2.2kw		3.0kw
Rewinder motor	1.5kw		2.2kw		3.0kw		3.7kw
Electrical heater	14kw	16kw	20kw	22kw	24kw	26kw	28kw	30kkw
Blower of heater	1.5kw*2	1.1kw*3	1.1kw*3	1.1kw*3	1.5kw*3	1.5kw*3	2.2kw*3	2.2kw*3
Blower of nature wind	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw	1.5kw	1.5kw	1.5kw
Inking motor	370w	750w	750w	750w	750w	750w	750w	750w
Master frequency converter	(Panasonic)/ (Toshiba)transducer Japan
Bearing	Japan(NSK)
Unilateral bearing	ASNU(Germany)
Weight	4500kg	4750kg	5000kg	5250kg	5500kg	5750kg	6000kg	6300kg
Master Power	25k	27kw	34kw	37kw	43kw	47kw	55kw	58kw
Dimension(LWH)	4.8m* 1.8m* 2.8m	4.8m* 2.0m* 2.8m	4.8m* 2.2m* 2.8m	4.8m* 2.4m* 2.8m	4.8m* 2.6m* 2.8m	4.8m* 2.8m* 2.8m	4.8m* 3.0m* 2.8m	4.8m* 3.2m* 2.8m
