YT series Flexo printing Machine price
Our machine are approved by ISO9001, 2000.
Use

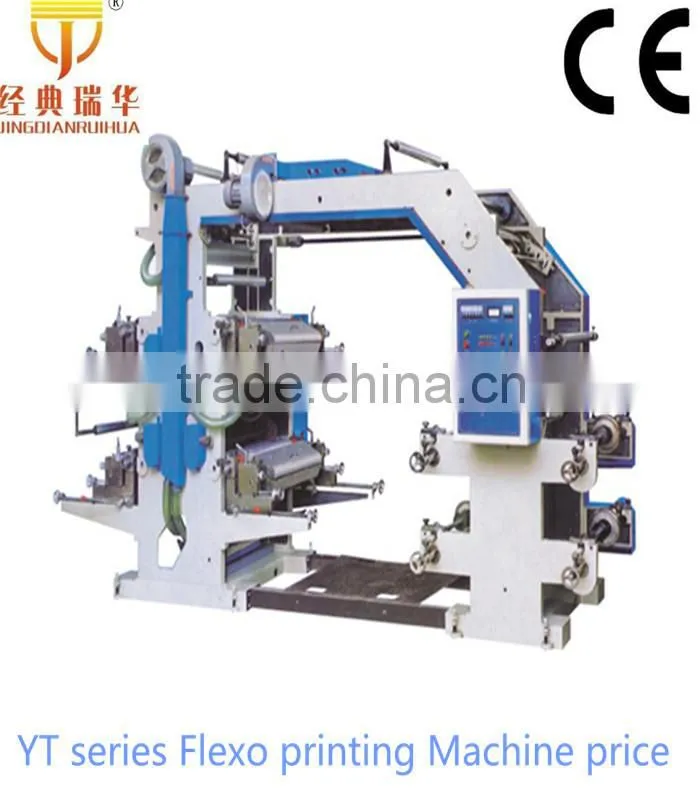

YT series Flexo printing Machine price
is suitable for various materials roll to roll printing,like paper,
film(BOPP,PET,PVE,OPP), Non woven fabric, woven bags,etc.
And it is a kind of ideal printing equipment for producing paper
packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Detailed Product Description:
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9. Unwind with auto deviation correction system (EPC)
10. EDGE position control
11. Reversible printing 4 color press for 4+0, 3+1, and 2+2
Main Technical Parameter:
Printing Width |
600mm |
Printing Length |
1000mm |
Printing Colors |
4+0, 3+1, and 2+2 |
Printing Plate Lifting System |
Hydraulic press control |
Max. Mechanical Speed |
80m/min |
Max. Printing Speed |
70m/min |
Anilox Cylinder |
Ceramic Cylinder |
Register Precision |
Longitude:±0.25mm,Transverse±0.25mm |
Un/rewinder Diameter |
Φ1000mm |
Master Motor |
3.0kw |
Unwinder Motor |
1.1kw |
Rewinder Motor |
1.5kw |
Electrical Heater Power |
10kw |
Blower Power |
1.5kw*2 |
Cold Air Blower Power |
0.75kw |
Ink Motor |
370w |
Total Power |
20kw |
Master Frequency Converter |
Taiwan |
Weight |
3500kg |
Dimension |
4.5m×1.8m×2.5m |
