GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine

GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-1
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-2
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-3
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-4
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-5
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine thumbnail-6
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-1
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-2
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-3
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-4
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-5
GYT Series 6Color Plastic Film High Speed Flexo Printing Machine, Full 6 Color Flexo Printing Machine photo-6
US$ 30,000 - 45,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Ruian Ruihua Printing Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Zhejiang, China
Brand Name JINGDIANRUIHUA, JINGDIANRUIHUA
Model Number GYT800
Usage Label Printer, Paper Printer, Other, Label Printer, Paper Printer, FILM OR NON WOVEN, PE, PP, OPP, HDPE
Automatic Grade Automatic
Voltage 380v
Gross Power 33KW, 45kw
Dimensions(L*W*H) 4800*2250*3200MM
Weight 3500KG
Certification CE, CE
After-sales Service Provided Engineers available to service machinery overseas

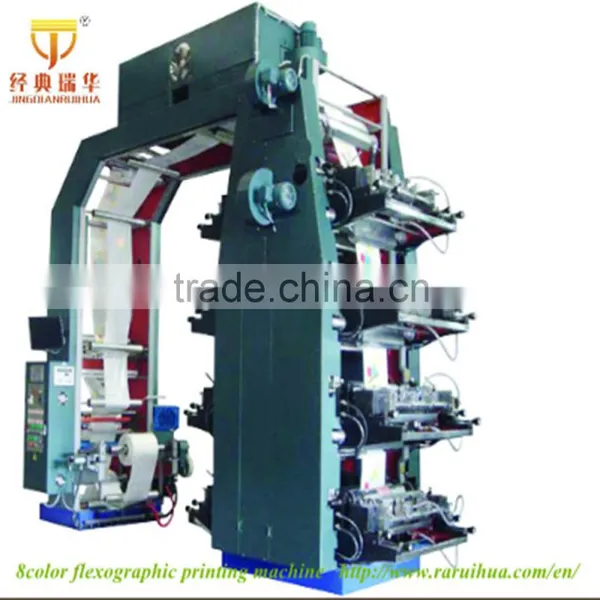

GYT 6Color  6 Color Flexo Printing Machine





1. The main features:

1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

4. Use special synchronous belt drive, accurate printing size.

5. Two sets of heating devices, including central heating and constant temperature control system for group control.

6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.

7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.

8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing

9. Print produce are clear and good arrangement quality.

10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll





2. Main parameter:

MODEL:

GYT-600, GYT-800, GYT-1000,GYT-1200 etc.

Printing Material:

Plastic film

OPP:20~80μm,BOPP:18~80μm,PE:35~100μm,

NY:20~50μm,PET:12~60μm,CPP:20~60μm,

paper: 20~150g/m2

Machine color:

6Color

Max. Material width:

(650mm up to 1650mm, width size depends on client need)

Max. Printing width

(550mm up to 1550mm, width size depends on client need)

Max.printing length:

200mm~1000mm

Max. Machine speed:

180m/min

Max. Printing speed:

30-150m/min

Register precision:

Crosswise:±0.20mm;Longitudinal:±0.20mm

Plate thickness:

Resin 2.28mm

Double tap thickness:

0.38mm(3M)

Printing cylinder on machine:

40cm/ 1 set

Machine outside:

5.4m(L)×2.0m(W)×3.4m(H)

Machine total power:

45Kw

Voltage:

Voltage 380V, 3 PH, 50 Hz







3. Detailed parameter:

3.1) Double unwind unit:



Max. unwind diameter

Φ800mm

Unwind Way

Center unwind, with 10KG powder magnetic and auto tension control 2pcs

Tension precision

±0.3kg

EPC System for unwind

1pcs

Unwind material holder

By air shaft , 2 pcs

Unwind web cylinder

Φ76mm (inner diameter)

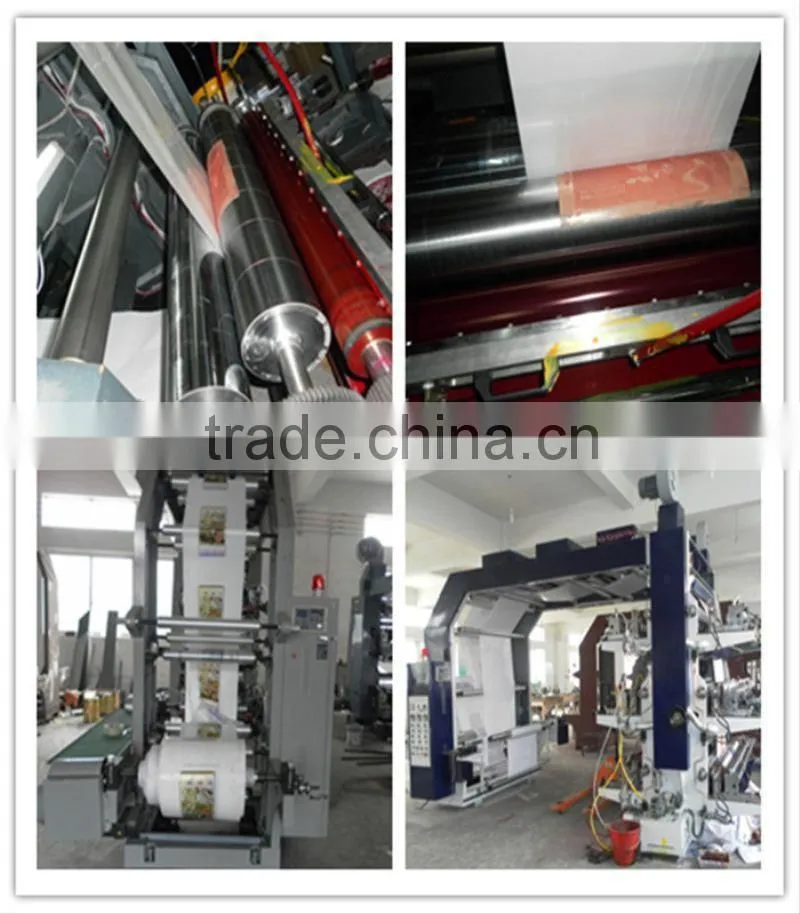

3.2) Printing Unit:

Principle of Work

Belt Drive

Suitable Printing Ink

Water-based ink or Oil-based ink

Material of Plate

Resin or Rubber

Constitution of Printing

Chrome plated roller, Rubber roller, Anilox roller, Plate cylinder

Anilox roller

High speed machine:ceramic anilox roller (100-1000lpi), chamber doctor blade for 30-150m/min

Printing Pressure

Mechanical adjust

Color register type

By Manual

Printing plate lifting system

Automatic Hydraulic cylinder control roll up and down





3.3) Heating and Drying Unit:

Dryer

Electrical heat drying

Blower

4kw x 1pcs

Double Blower way circle

Centralized heat, exhaust gas pumpback

Power of Heating

32 kw





3.4) Double Rewind Unit:

Max. rewind diameter

Φ800mm

Rewind Way

Centre rewind;

Tension control system

Automatic tension control 2pcs

Rewind material holder

By air shaft , 2pcs

Rewind motor

1.5Kw, Taiwan motor

Rewind web cylinder

Φ76mm (inner diameter)





Optional parts which extra cost buy:

NO.

Goods of Descriptions

1

Printing cylinder which use on flexographic printing machine

2

Corona treatment

3

Monitor system (also called image inspect device): screen+camera+controller

4

Pate mounting machine(easier to mount plate)

5

Plate making machine

6

Anilox roller cleaning machine ( especially client buy machine for paper printing)

7

Ink viscosity measurement ( 1 color need 1pcs)


















Skype :wangbei3512 wechat wangbei9089 whatsapp:008613626558246
