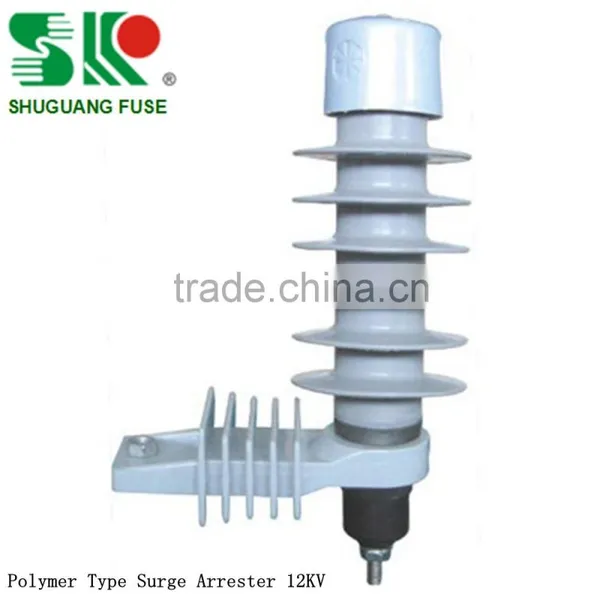

Metal Oxide Surge Arrester/Polymer Type Surge Arrester 12KV
US$ 8 - 10
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
shuguang fuse
Model Number:
YH5W-12/YH10W-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lightning Arrester With 10kVUS$ 13 - 15MOQ: 3 Pieces -
11kV Porcelain Lightning ArresterUS$ 14.5 - 16.5MOQ: 3 Pieces
-
Metal Oxide Surge Arrester With 11kVUS$ 14 - 16.5MOQ: 3 Pieces
-
Metal Oxide Surge Arrester With 21kV-24kVUS$ 21 - 26.5MOQ: 3 Pieces
-
24kV Surge Arrester With Polymeric HousingUS$ 23 - 27MOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
shuguang fuse
Model Number
YH5W-12/YH10W-12
Metal Oxide Arrester (MOA) is the most advanced over-voltage protection. The core components using Zinc oxide barrier, compare with traditional silicon carbide arrester, it changed the characteristic of arrester, improve the flow capacity of over-voltage, so that make arrester changed fundamentally.
When the arrester working under nominal voltage, only Microamp current flowing through the arrester. When encountered lightning hit, because of the nonlinear of ZnO barrier, thousands of amps current flow through the arrester at that moment, arrester under conduction status, release over-voltage energy, effectively limits the violations of over-voltage on the transmission and distribution equipment.
Condition of Use
Ambient temperature: -40℃ - 40℃
Altitude: 1000-2000m
AC Frequency: 50Hz or 60Hz
Long-term working voltage applied to the arrester does not exceed the continuous operating voltage.
Maximum wind velocity: ≤35m/s
Earthquake class: ≤7°
Polluted areas should state.
Use characteristics
Metal oxide surge arresters use for protection of AC electrical power system, avoid from the atmosphere over-voltage and operating over-voltage damage.
Technical Standards
GB11032-2000,JB/T8952-1999,IEC60099-4,IEEE.C62.11

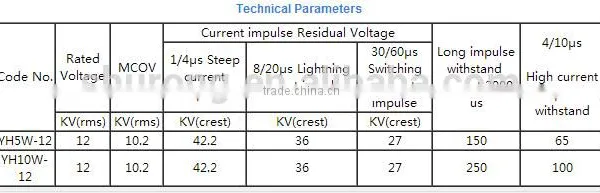

| Code No | Rated Voltage | MCOV | Current impulse Residual Voltage | Long impulse withstand 2000 usd | 4/10μs current impulse | ||
1/4μs Steep current impulse | 8/20μs Lightning current impulse | 30/60μs Switching | |||||
| current impulse | |||||||
| KV(rms) | KV(rms) | KV(crest) | KV(crest) | KV(crest) | |||
| YH5W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150 | 65 |
| YH10W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 250 | 100 |
