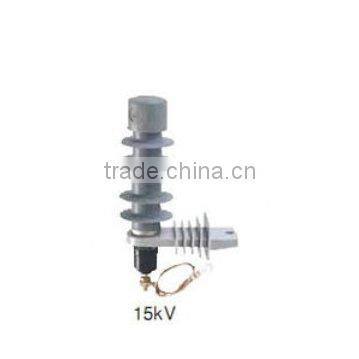

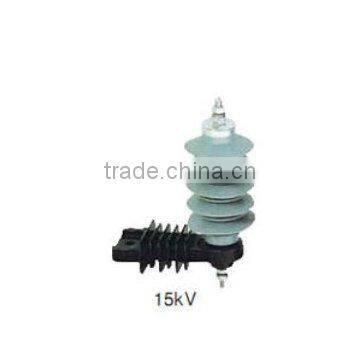

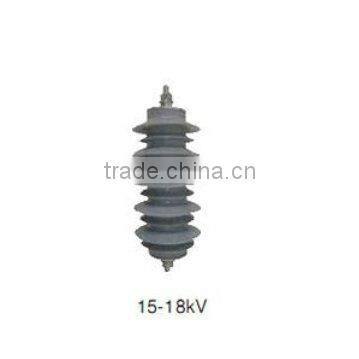

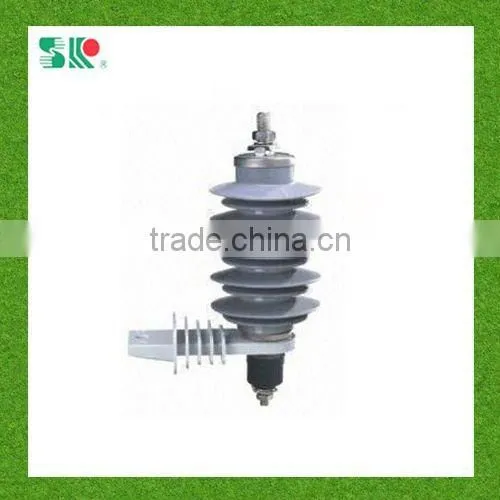

Lightning Arrester 15kV
Negotiable
MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
YH5W-15,YH10W-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24kV Surge Arrester With Polymeric HousingUS$ 1 - 100MOQ: 3 Pieces -
Metal Oxide Surge Arrester 33-36KVUS$ 1 - 100MOQ: 3 Pieces
-
11kV Porcelain Lightning ArresterUS$ 1 - 100MOQ: 3 Pieces
-
Metal Oxide Surge Arrester 3kVUS$ 9.23 - 10MOQ: 3 Pieces
-
Metal Oxide Surge Arrester 3kV 10kAUS$ 10.5 - 11.26MOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
SR
Model Number
YH5W-15,YH10W-15
Specifications
conforms to certificate: ISO 9001: 20081.material:polymeric
2.rated voltage:15kV
3.creepage distance:386mm
Key Specifications/Special Features:
Type:YH5C-15, YH10C-15
Rated voltage r.m.s: 15KV
Continuous operating voltage r.m.s: 12.7KV
1/5u s steep current residual voltage(KV): 50.1(5kA), 52.8 10kA)
8/20u s lighting impulse residual voltage(kV): 44.7 (5kA), 47 (10kA)
30/60u s switching impulse residual voltage(kV): 34 (5kA), 35.3 (10kA)
2ms rectangular current(A): 100(5kA), 250(10kA)
4/10u s high current impulse(kA): 65(5kA), 100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:105
Power frequency:45
Creepage distance(mm): 386
