Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Metal Oxide Surge Arrester With 21kV-24kV

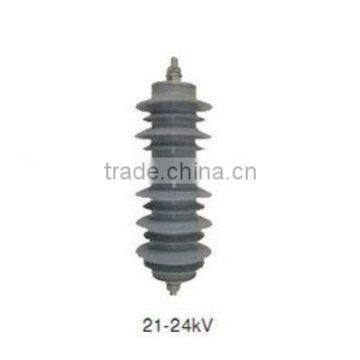

Metal Oxide Surge Arrester With 21kV-24kV

Metal Oxide Surge Arrester With 21kV-24kV thumbnail-1
Metal Oxide Surge Arrester With 21kV-24kV photo-1
US$ 21 - 26.5 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
YH5W-21,YH10W-21
Contact Supplier Request Quote Chat Now
Wenzhou Shuguang Fuse Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SR
Model Number YH5W-21,YH10W-21

Specifications

Metal Oxide Surge Arrester
1. rated voltage: 21-24kV
2. polymeric housing
3. certification: ISO 9001: 2008



Key Specifications/Special Features:


Type:YH5C-21, YH10C-21
Rated voltage r.m.s: 21KV
Continuous operating voltage r.m.s: 17KV
1/5u s steep current residual voltage(KV): 66.6 (5kA), 70.3 (kA)
8/20u s lighting impulse residual voltage(kV): 59.5 (5kA),  62.6 (kA)
30/60u s switching impulse residual voltage(kV): 45.5 (5kA), 47 (kA)
2ms rectangular current(A): 100(5kA), 250(kA)
4/10u s high current impulse(kA): 65(5kA), 100(kA)
Insulation housing withstand voltage(kV)
Lightning impulse:125
Power frequency:55
Creepage distance(mm):493
