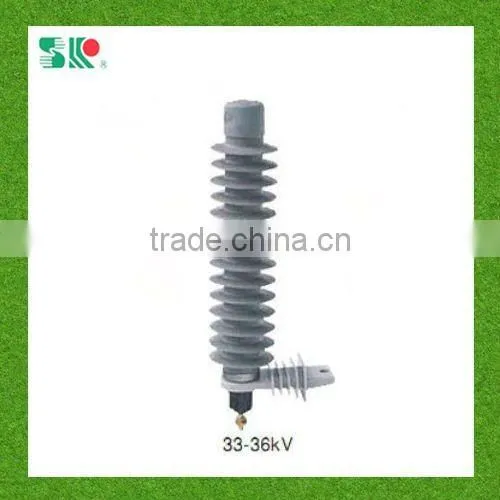

33kV Surge Arrester

33kV Surge Arrester thumbnail-1
33kV Surge Arrester photo-1
US$ 33 - 38 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SR
Model Number:
YH5C-33,YH10C-33
Contact Supplier Request Quote Chat Now
Wenzhou Shuguang Fuse Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SR
Model Number YH5C-33,YH10C-33

Specifications

Metal Oxide Surge Arrester
1. rated voltage: 33kV
2. polymeric or porcelain housing
3. certificaat: ISO 9001: 2008





Key Specifications/Special Features:


Type:YH5C-33,YH10C-33
Rated voltage r.m.s: 33KV
Continuous operating voltage r.m.s: 27.5kV
1/5u s steep current residual voltage(KV): 107.9 (5kA), 113.9 (10kA)
8/20u s lighting impulse residual voltage(kV): 96.3 (5kA), 101.4 (10kA)
30/60u s switching impulse residual voltage(kV): 73.2 (5kA), 76.1 (10kA)
2ms rectangular current(A): 200(5kA), 400(10kA)
4/10u s high current impulse(kA): 65(5kA),100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:170
Power frequency:70
Creepage distance(mm): 1220
