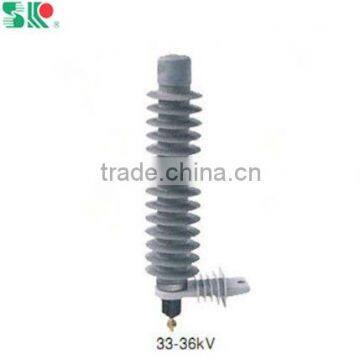

Help CenterMetal Oxide Surge Arrester 33-36KV
Related Products
-
11kV Porcelain Lightning ArresterUS$ 1 - 100MOQ: 3 Pieces -
Metal Oxide Surge Arrester 3kVUS$ 9.23 - 10MOQ: 3 Pieces
-
Metal Oxide Surge Arrester 3kV 10kAUS$ 10.5 - 11.26MOQ: 3 Pieces
-
High Voltage Lightning ArresterUS$ 10.55 - 11MOQ: 3 Pieces
-
High Voltage Lightning Arrester 6kVUS$ 9.52 - 11MOQ: 3 Pieces
Key Specifications/Special Features for surge arrester:
System nominal voltage(kV):33
Type code of MOA: YH10W-30/90
System highest voltage(kV):36
Rated voltage of arresters(Ur)(kV):30
Continuous operationg voltage(Ur)(kV):24
Nominal discharge current(In)(kV):10
High current 4/10 impulse withstand(kA):100
2ms rectangular current(A):250
Steep current impulse residual voltage(kV):99
Lightning impulse residual voltage(kV)
5kA: 85
10kA: 90
20kA: 101
Switching current impulse residual voltage(kV):69
Lind discharge class:I
Pressure relief class:B, 20
Insulation impulse withstand voltage(kV): 170
Power frequency withstand voltage(kV):95
Max.External RIV(V):<=500
Max.Partial discharge(PC):<=10
Creepage distance(mm):1007
Note:If arrester with porcelain housing, type code should not include"H". We can produce both in porcelain housing and polymeric housing.
