Lime Plant Grinding Mill/Ball Mill for Sale

Specifications

Lime Plant Grinding Mill/Ball Mill for Sale
1)Stable performance
2)Exquisite workmanship

Lime Plant Grinding Mill/Ball Mill for Sale



DSM Lime Plant Grinding Mill/Ball Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Our company mainly produces two kinds of  Ball mill, energy-saving ball mill and dry type Ball Mill Manufacture Factory.

Working principle:
Lime Plant Grinding Mill/Ball Mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process. There are two ways of  Ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other materials.

Structure:
The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control).



Brief Introduction:
 Ball Mill Manufacture Factory grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.



 Working principle of ball mill

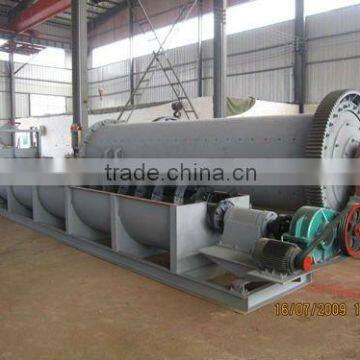

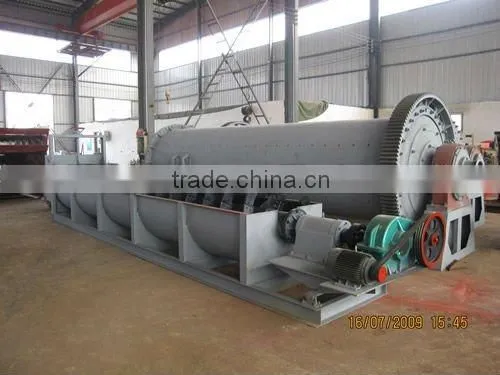

ball Mill This machine is a skeleton pattern  Ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

 Features
1) ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball Mill Manufacture Factory can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the Ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.



Lime Plant Grinding Mill/Ball Mill for Sale
