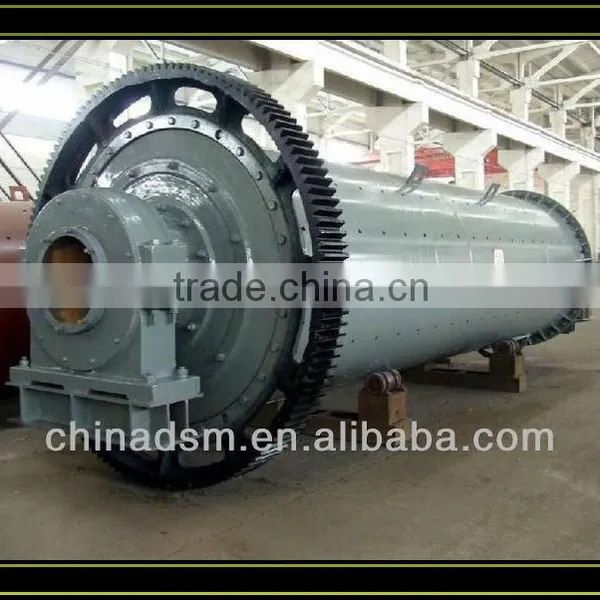

High Efficiency Bowl Mill for Mining, Coal Pulverizer Bowl Mill

Specifications

Bowl Mill for Mining
1) wet or dry ball mill
2) high capacity ball mill
3) fine end product size after milling

High Efficiency Bowl Mill for Mining, Coal Pulverizer Bowl Mill



Brief Introduction:



Bowl Mill for Mining is the key equipment to re-crush the materials having been crushed. It is widely used in varies  kind industry such as cement,silicate products,new building materials,refractory materials, fertilizer, black and non-ferrous metal  processing,glass ceramics etc,it can grind varies ores and grind-able materials with dry and wet means. Suitable for grinding  various ores and other materials,ball mill are widely used in mineral processing,building materials and chemical industries,and can be divided into dry and wet grinding ways. According to the different ways of discharge,it can be divided into lattice type  and overflow type.



Features:



Bowl Mill for Mining use double roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.the intrinsic grille pattern forcing evacuation is instead by overfall pattern controlling one.This can improve the milling of the granule and the capacity is increased

by 15-20%.



Main technical date:



Model	Rotation  speed (r/min)	Ball load   (t)	Feeding  size (mm)	Discharging  size (mm)	Capacity  (t/h)	Power  (kw)	Weight  (t)
Ø900*1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Ø900*13000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Ø1200*2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Ø1200*3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
Ø1200*4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
Ø1500*3000	27	8	≤25	0.075-0.4	2-5	90	17
Ø1500*4500	27	14	≤25	0.075-0.4	3-6	110	21
Ø1500*5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
Ø1830*3000	24	11	≤25	0.075-0.4	4-10	180	28
Ø1830*6400	24	23	≤25	0.075-0.4	6.5-15	210	34
Ø1830*7000	24	25	≤25	0.075-0.4	7.5-17	245	36
Ø2200*5500	21	30	≤25	0.075-0.4	10-22	370	48.5
Ø2200*6500	21	30	≤25	0.075-0.4	14-26	280	52.8
Ø2200*7500	21	33	≤25	0.075-0.4	16-29	475	56
