Oil Drum Lifter
Oil Drum Lifter
1.Applications:

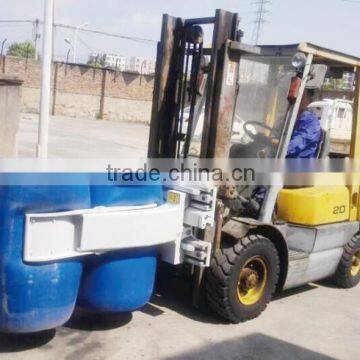

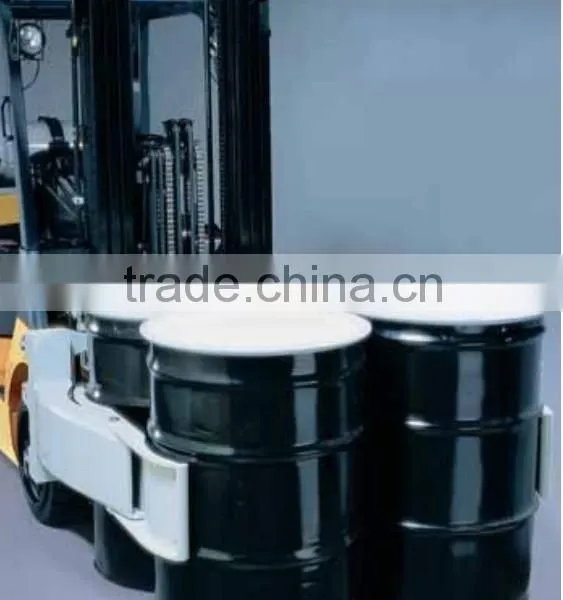

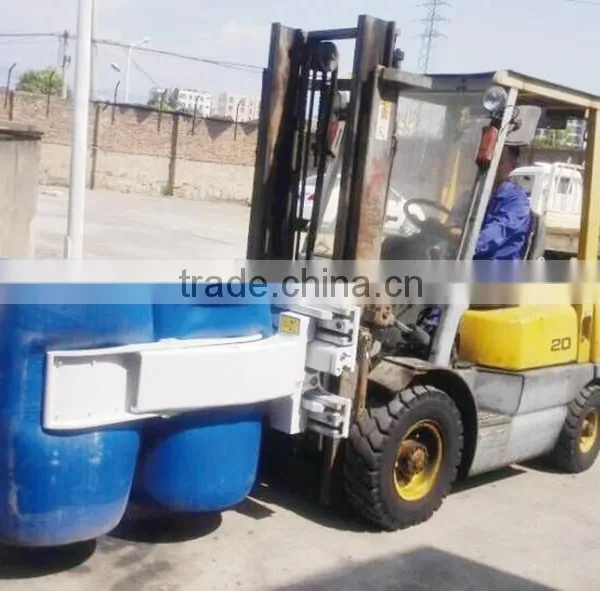

Oil drum lifter is very suitable for lifting and clamping standard oil drum,and also can be used other product is stored in drums, including the petroleum, chemical and food processing industries.Forklift Four Drums Clamps inprove productivity by allowing a forklift driver to handle up to four drums per load. In addition, the use of a drum lifter allows the driver to securely grip the drums for transporting. This eliminates instability during braking and cornering, which is a common problem when attemping to handle drums with conventional forks.
2.Features:
Proven, durable arm and aluminum frame construction ensuring long, useful life of the clamp.
Superior arm-slide material and design for extended bearing life.
Arm design for handling standard 55-gallon drums.
Replaceable rubber faced arm pads.
Regenerative hydraulic valving for optional arm speed.
3.Specification
|
Capacity@ Load Center (kg@mm) |
Catalog Order No. |
Mounting Class |
Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity CGH (mm) |
| 2 Drum Sideshift | ||||||||||
| 1400@500 | DTS15D-001A | II | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | II | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS20D-003A | II | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |

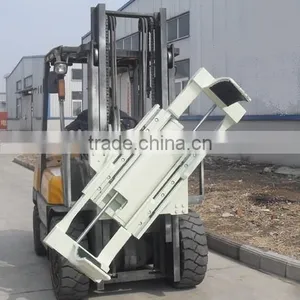

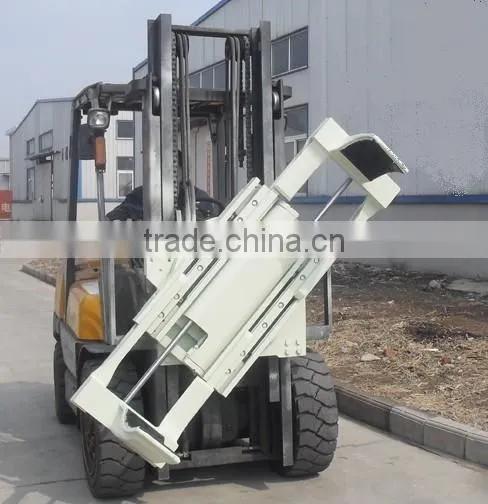

| 2 Drum Rotating | ||||||||||
| 1900@500 | DTR20D-004A | II | 520-1750 | 940 | 755 | 815 | 410 | 522 | 241 | 140 |
| 4 Drum Sideshift | ||||||||||
| 1400@500 | DFS15D-005A | III | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | II | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | III | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4 Drum Rotating | ||||||||||
| 1900@500 | dfr20d-008a | III | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
