Foreline Particle Trap with Five (5) Micron, Polyester Cartridge CY- EQ-FPTA-5-LD
FPTA-5 foreline particle traps are are designed to extend the life of vacuum pumps by preventing solid contaminates from being ingested by the pump. Common applications for the FPTA Traps are processes that generate dusts, powders, resins, etc. The high efficiency polyester cartridge has an efficiency rating greater then 99% and cartridges are moisture resistant.
Specification of the foreline particle traps:
| Body Dimensions(W x L) | Bottom | Side | Flow Capacity |
| 4.5" x 4 " | KF/NW25 Flange | KF/NW25 Flange | 25 cfm |
Construction

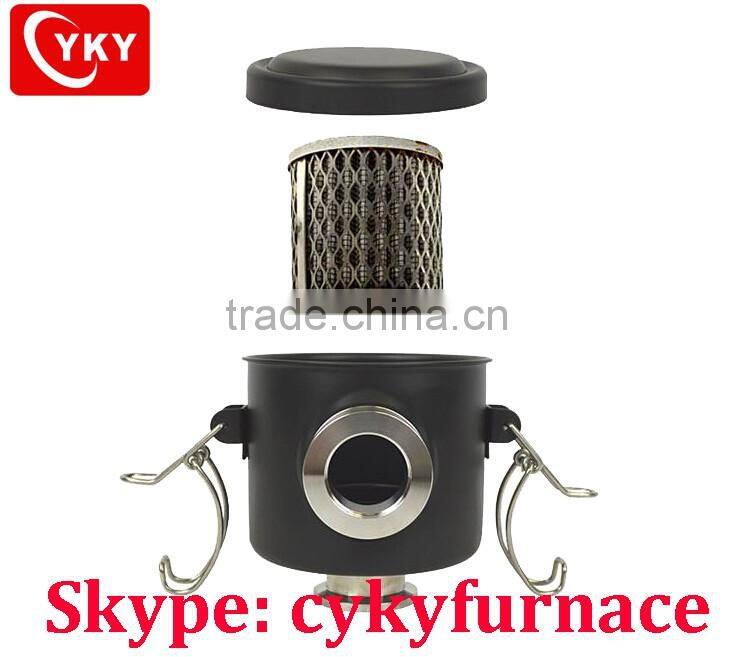

FPTA-5 particle traps feature right angle mounting conñguration, with standard KF25/NW25 ports for easy mounting. Units are of steel construction, with a baked enamel finish. The filter itself is a heavy duty, pleated, five (5) micron, polyester cartridge. Polyester filters have a high dirty carrying capacity, it is washable with warm water and mild detergents, thereby extending service life of the cartridge. Stainless steel torsion clips hold the bonnet assembly firmly in place and allow quick access for maintenance cycles

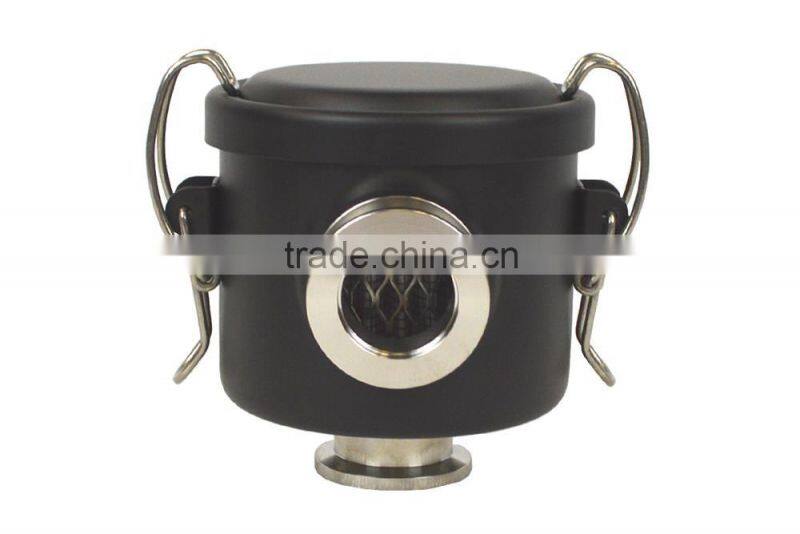

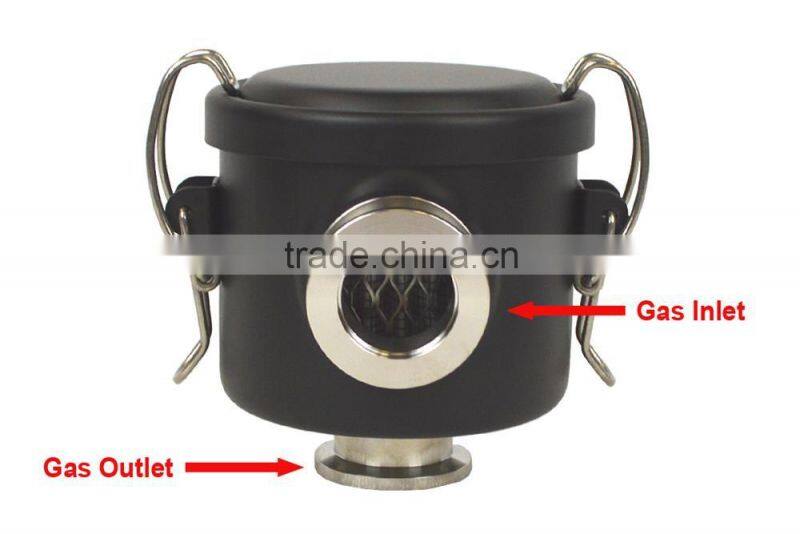

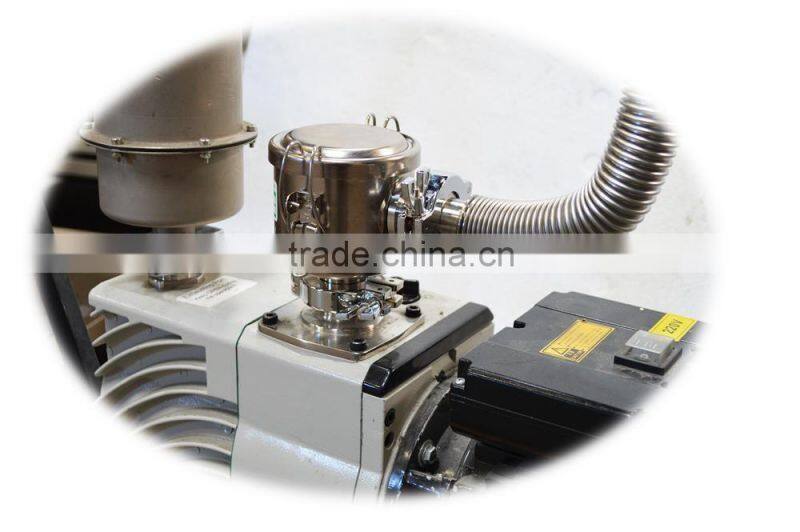

reference picture of the foreline particle traps:
Zhengzhou CY Scientific Instrument Co., Ltd.- is a high and new technology enterprise registered in Zhengzhou,Henan province. Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in researching and developing, designing and manufacturing of equipment used in scientific researches.
Contact information:
contact person: Alisa Wang
skype: cykyfurnace
Mobile:0086 13526477203
