CE Certified Mechanical Vacuum Pump

CE Certified Mechanical Vacuum Pump thumbnail-1
CE Certified Mechanical Vacuum Pump photo-1
Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CY
Model Number:
CY-2XZ
Contact Supplier Request Quote Chat Now
Zhengzhou CY Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name CY
Model Number CY-2XZ
Theory Vacuum Pump
Structure Other, mechanical pump
Usage Air Pump
Power Electric
Standard or Nonstandard Standard
Fuel Gasoline
Pressure Low Pressure
Application Other, lab CVD system





Product Description

CE certified mechanical vacuum pump

Application of mechanical vacuum pump

Widely used in

1.electronics

2.Metallurgy

3.chemical

4.food and machinery

dicine and etc

Features of mechanical vacuum pump

1.Small size, light weight, easy to operate

2.Low mechanical noise

3.Has oil return device, pump oil will not be back to pipeline

4.Has a gas ballast valve, can eliminated water vapor

5.Single phase motor power, the power suppy is very convenient

Technical parameters of mechanical vacuum pump



Model no. Pump speed(L/S) Pressrue limit(Pa) Rotated speed(r.p.m) Motor power(kw) Inlet gas O.D(mm) Tem.of oil pump (°c) Oil capacity(L) Gross weight(kg) Noise(dB)
CY-2XZ0.25 0.25 ≤6×10-1 1400 0.12 6.5/10 ≥40 0.3 11 <60
CY-2XZ0.5 0.5 ≤6×10-2 1400 0.18 6.5/13 ≥40 0.42 13 <60
CY-2XZS1 1 1400 0.25 6.5/18 ≥40 0.42 18 <60
CY-2XZS2 2 1400 0.37 6.5/13/25 ≥45 0.48 25 <65
CY-2XZS4 4 1400 0.55 6.5/13/25 ≥45 0.55 27 <65
CY-2XZS6 6 1410 0.75 25 ≥50 0.6 40 <67
CY-2XZS8 8 1410 1.1 40 ≥55 0.7 55 <70
CY-2XZS15 15 1410 1.5 40 ≥55 0.8 65 <70



 Installation dimension of mechanical vacuum pump



 Unit(mm)

Model no. L L1 L2 L3 L4 B b b1 d1 d2 M H
CY-2XZ0.25  400   80 110   175 125  125   74 104  10   23  M6  224
CY-2XZ0.5  445  95  125  215 140  125  86  116  13  23  M6  256
CY-2XZS1  445  95  125  215  140  125  86  116  13  23  M6  256
CY-2XZS2  478  129  129  223  150  148  100  126  19  23  M6  277
CY-2XZS4  518  129  129  263  150  148  100  126  19  23  M6  277
CY-2XZS6  570  150  150  155  155  210  140  200  25  25  M9  350
CY-2XZS8  620  195  195  200  200  250  170  230  25/40  25  M9  400
CY-2XZS15  720  195  195  200  200  250  170  230  25/40  25  M9  400

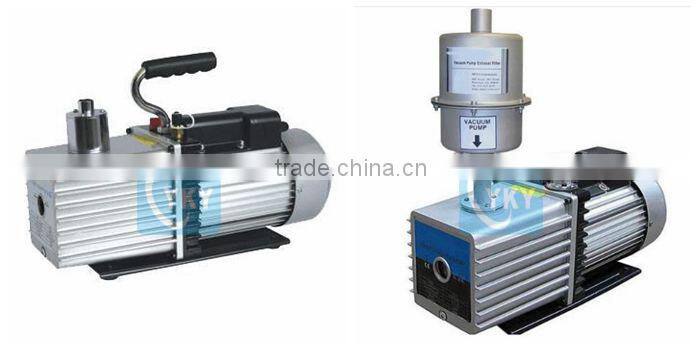

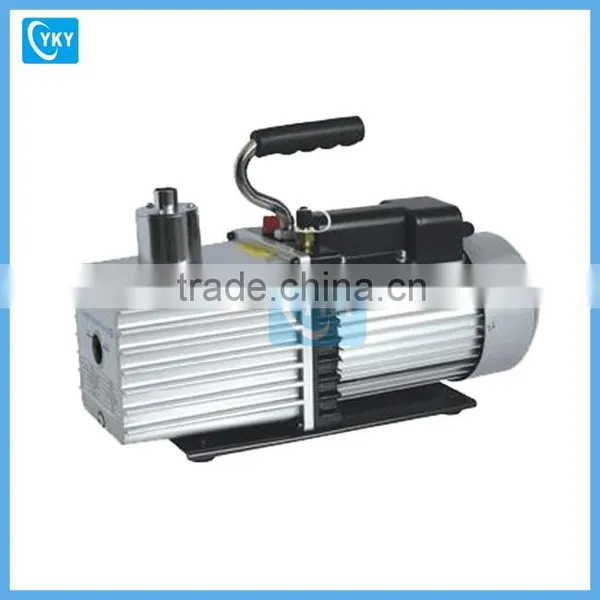

Pictures of mechanical vacuum pump



Packaging & Shipping

Packaging of mechanical vacuum pump

PLY WOOD BOX as below picture show. or as customer request.

Shipping and transportation

As customer request. Generally, Our mode of transport are as by sea, by air or rail transport

Our Services

Payment

T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC

Warranty

Main product is 12 month, except wearing parts.

Company Information

Factory show

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.



CE certified mechanical vacuum pump
