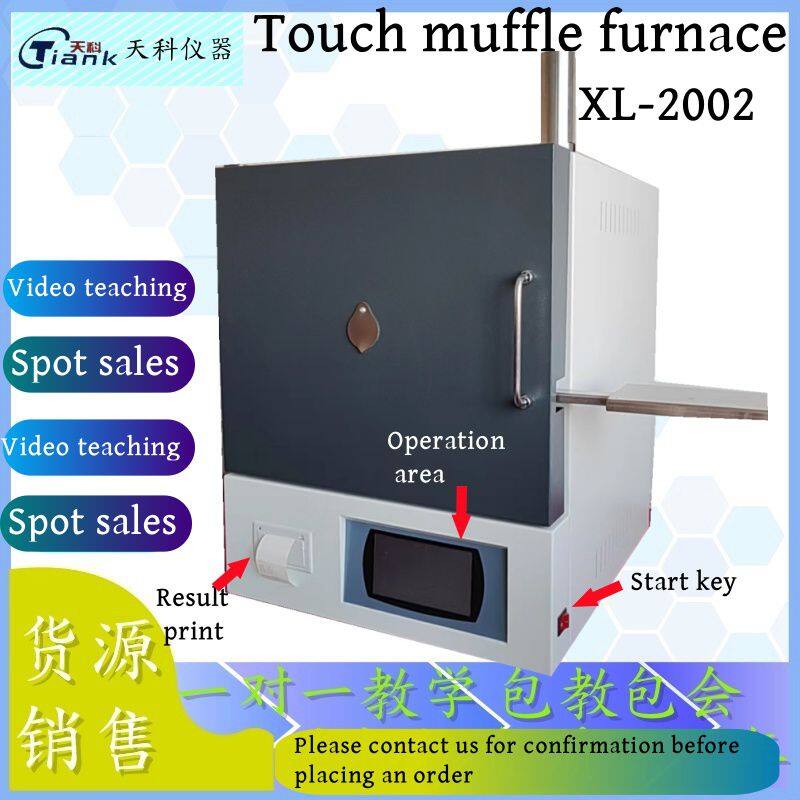

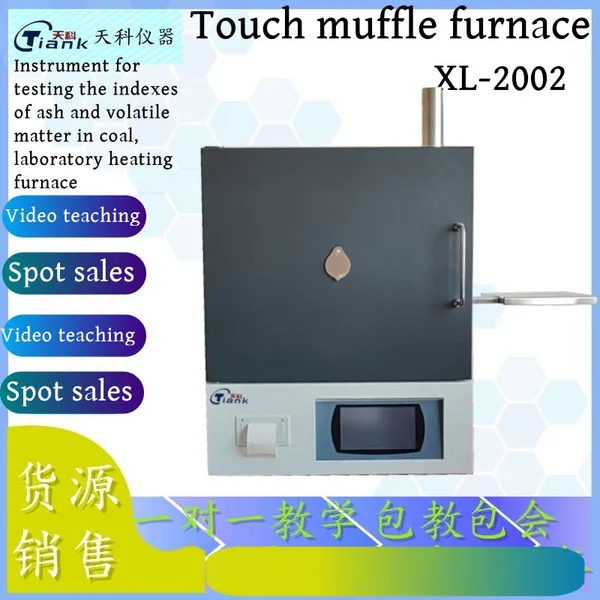

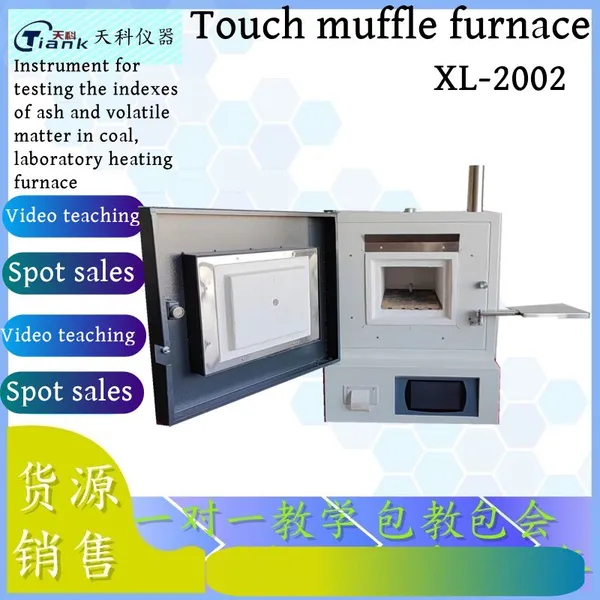

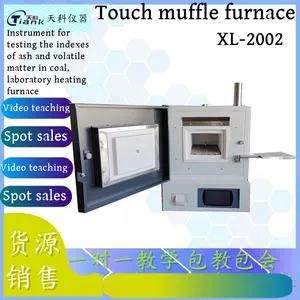

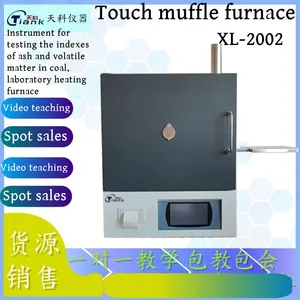

Muffle Furnace/Hebi Xintianke Touch Muffle Furnace/Coal Ash Determination

Xl-2002 intelligent muffle furnace (ash volatilization tester or box type high temperature furnace) is an instrument used to test the indexes of ash and volatilization in coal

1. high temperature resistant heating lining plate can accurately define the constant temperature zone of muffle furnace, and use the space of constant temperature zone to ensure the accuracy and stability of various results.

2. the furnace uses high-purity ceramic fiber and heating wire for one-time forming, and the resistance wire is fully buried. The long-term service temperature of the furnace is in the range of 0-1200 degrees; Low thermal conductivity, good thermal insulation performance, good thermal shock resistance and airflow erosion resistance; Light weight, low energy consumption, fast temperature rise, no dust, no slag falling, no cracking, standard dimensions, flexible and rapid installation.

3. fast temperature rise: high performance thermal insulation material with a temperature rise rate of about 50 ℃/min and faster temperature rise

4. constant temperature zone: multiple samples are tested, the result deviation is small, and the experiment is stable

5. quick calculation of results: the built-in calculation formula can quickly calculate the experimental results, which is simpler

6. in addition to the experimental testing functions of slow ash, fast ash, volatilization and adhesion, it also has a powerful self selection setting function, which can set 100 heating programs, and each heating program can set 100 segmented heating programs, which is more optional.

7. the display window adopts 7.0 inch color LCD touch screen, which is intuitive, easy to understand, easy to use, and easy to operate. The control core adopts ARM9 microprocessor, which has fast speed and strong real-time performance.

8. reliable fault self-tuning function, and the equipment has a variety of protection functions.

9. national standards, instructions and common troubleshooting methods are loaded inside.

Power supply voltage:                                 AC220V ± 10%, 50Hz (support two-way single power supply)

Power:                                                               3.5kw

Temperature rise speed:                           about 50 ℃/min

Temperature measurement range:      0-1000 ℃, equipped with K-type thermocouple

Thermocouple material:                           nickel chromium silicon

Temperature resolution:                            1 ℃

Furnace size (mm):                                         300 × 200 × 120
