CE certified Two stage rotary vane vacuum pump
Application of rotary vane vacuum pump
Widely used in
Refrigeration
Vacuum metallurgy
Mechanical equipment
Chemical industry
Laboratory studies
Biological products
Features of rotary vane vacuum pump
1.Small size, light weight, easy to operate
2.Low mechanical noise
3.Has oil return device, pump oil will not be back to pipeline
4.Has a gas ballast valve, can eliminated water vapor
5.Single phase motor power, the power suppy is very convenient
Technical parameters of rotary vane vacuum pump
Model no. |
CY-VRD-16 |
Pumping speed |
16M3/H |
Partial pressure limited (Pa) |
4x10-2 |
Total pressure limited(Pa) |
4x10-1 |
Motor Power |
0.75KW |
Exhaust Joint (DN) |
KF25 |
Oil consumption |
0.9-1.5L |
Motor speed |
1440rpm |
Noise |
<58dB |
Gross weight |
30kg |
More model for your
| Model no. | Pump speed(L/S) | Pressrue limit(Pa) | Rotated speed(r.p.m) | Motor power(kw) | Inlet gas O.D(mm) | Tem.of oil pump (°c) | Oil capacity(L) | Gross weight(kg) | Noise(dB) |
| CY-2XZ0.25 | 0.25 | ≤6×10-1 | 1400 | 0.12 | 6.5/10 | ≥40 | 0.3 | 11 | <60 |
| CY-2XZ0.5 | 0.5 | ≤6×10-2 | 1400 | 0.18 | 6.5/13 | ≥40 | 0.42 | 13 | <60 |
| CY-2XZS1 | 1 | 1400 | 0.25 | 6.5/18 | ≥40 | 0.42 | 18 | <60 | |
| CY-2XZS2 | 2 | 1400 | 0.37 | 6.5/13/25 | ≥45 | 0.48 | 25 | <65 | |
| CY-2XZS4 | 4 | 1400 | 0.55 | 6.5/13/25 | ≥45 | 0.55 | 27 | <65 | |
| CY-2XZS6 | 6 | 1410 | 0.75 | 25 | ≥50 | 0.6 | 40 | <67 | |
| CY-2XZS8 | 8 | 1410 | 1.1 | 40 | ≥55 | 0.7 | 55 | <70 | |
| CY-2XZS15 | 15 | 1410 | 1.5 | 40 | ≥55 | 0.8 | 65 | <70 |
Installation dimension of rotary vane vacuum pump
Unit(mm)
| Model no. | L | L1 | L2 | L3 | L4 | B | b | b1 | d1 | d2 | M | H |
| CY-2XZ0.25 | 400 | 80 | 110 | 175 | 125 | 125 | 74 | 104 | 10 | 23 | M6 | 224 |
| CY-2XZ0.5 | 445 | 95 | 125 | 215 | 140 | 125 | 86 | 116 | 13 | 23 | M6 | 256 |
| CY-2XZS1 | 445 | 95 | 125 | 215 | 140 | 125 | 86 | 116 | 13 | 23 | M6 | 256 |
| CY-2XZS2 | 478 | 129 | 129 | 223 | 150 | 148 | 100 | 126 | 19 | 23 | M6 | 277 |
| CY-2XZS4 | 518 | 129 | 129 | 263 | 150 | 148 | 100 | 126 | 19 | 23 | M6 | 277 |
| CY-2XZS6 | 570 | 150 | 150 | 155 | 155 | 210 | 140 | 200 | 25 | 25 | M9 | 350 |
| CY-2XZS8 | 620 | 195 | 195 | 200 | 200 | 250 | 170 | 230 | 25/40 | 25 | M9 | 400 |
| CY-2XZS15 | 720 | 195 | 195 | 200 | 200 | 250 | 170 | 230 | 25/40 | 25 | M9 | 400 |

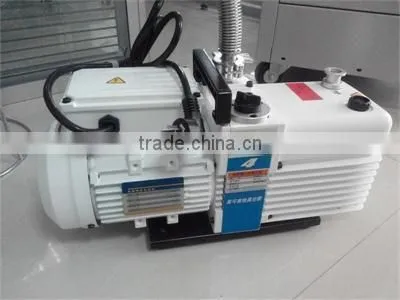

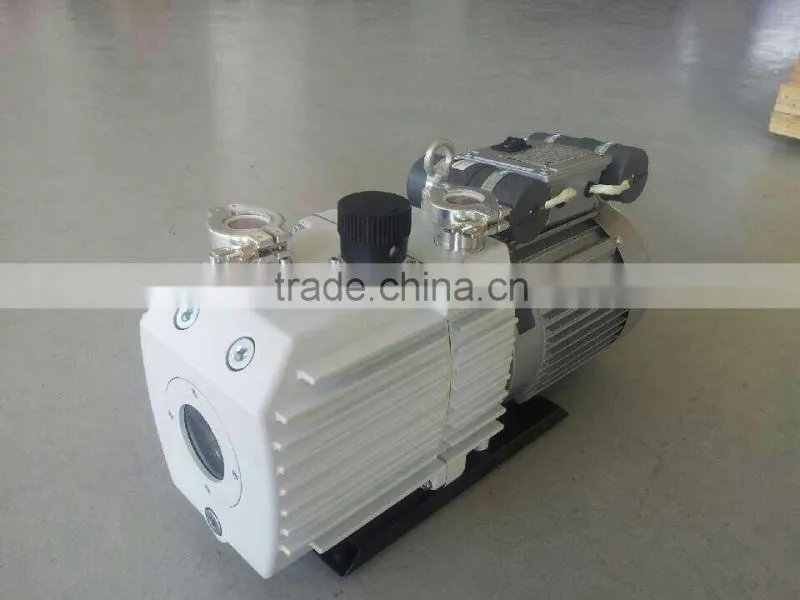

Pictures of rotary vane vacuum pump
